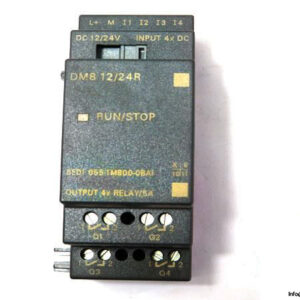

SIEMENS LOGO! DM8 12/24R EXPANSION MODULE
The Siemens LOGO! DM8 12/24R is a versatile expansion module designed to enhance the functionality of LOGO! logic controllers. Featuring four digital inputs and four relay outputs, it provides reliable control for a variety of industrial automation tasks. Built to handle demanding environments, this module offers robust electrical performance, compact design, and easy integration.
Manufacturer: Siemens
Family: LOGO!
Type: Expansion Module
Model: DM8 12/24R
MRN: 6ED1055-1MB00-0BA1

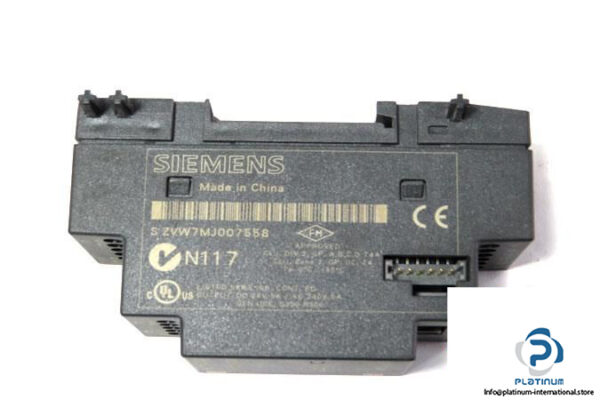

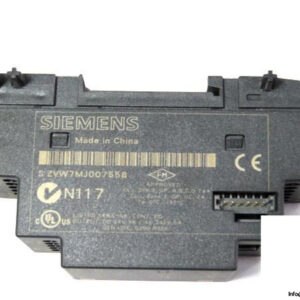

SN: S ZVW7MJ007558
Technical Information
- No. of Digital Inputs: 4
- Rated Supply Voltage: 12 / 24 VDC
- Permissible Range: 12.8 / 28.8 V DC
- Input Signal “0”: <5 V DC, 0.05 mA
- Input Signal “1”: >8.5 V, 1.5 mA
- Input Delays: 1.5 ms
- No. of Digital Outputs: 4 (Relays)
- Switching Capacity (Lamp Load): 1 kW
- Output Current: 5 A
- Mechanical Switching Frequency: 10 Hz
- Ambient Temperature: 0 / 55°C
- Dimensions (W x H x D): 36 x 90 x 55 mm
