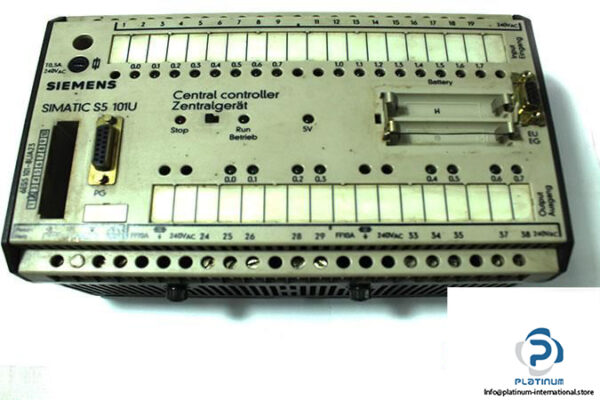

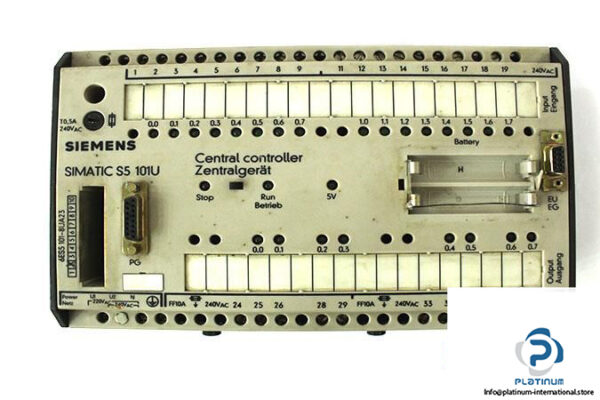

SIEMENS SIMATIC S5-101U PROGRAMMABLE CONTROLLER
The Siemens S5-101U is a cost-effective programmable controller from the SIMATIC S5 family, ideal for low-performance automation tasks. Designed to replace up to 10 relays or contactors, it serves as an efficient solution for small control applications with reliable input/output operations.
Manufacturer: SIEMENS
Family: SIMATIC S5
Type: Programmable Controller

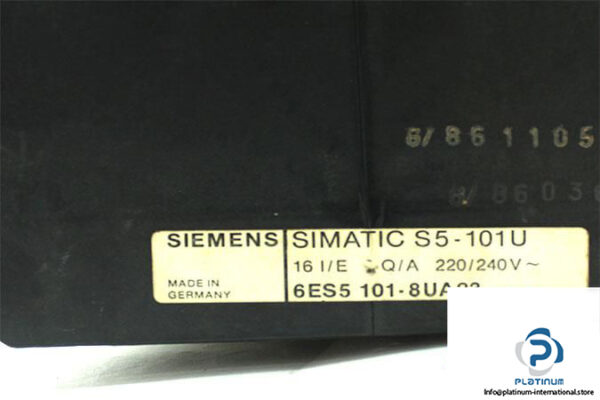

Model: S5-101U
MRN: 6ES5101-8UA23
Uses: Programmable controller PC of SIMATIC S5 system for automation tasks in the lower performance range as an economical replacement for up to 10 relays or contactors.
Technical Information
- Voltage: 220/240 V AC
- Rated Input Voltage for œ0 Signal: 0 / 40 V AC
- Rated Input Voltage for œ1 Signal: 159 / 264 V AC
- Number of Inputs: 16 (floating, groups of 8 connected)
- Nominal Input Current for œ1 Signal: 20 mA
- Number of Outputs: 8 (groups of four connected to common)
- Switching Frequency: 10 Hz general, 2 Hz inductive load, 8 Hz lamp load
- Type Connection: Screw-type terminals
