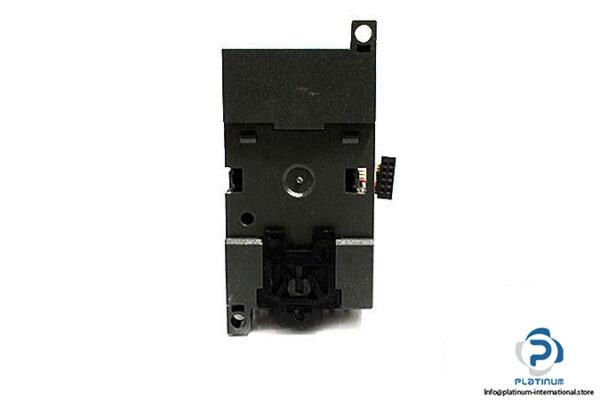

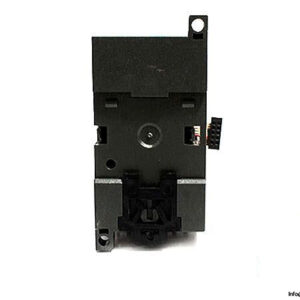

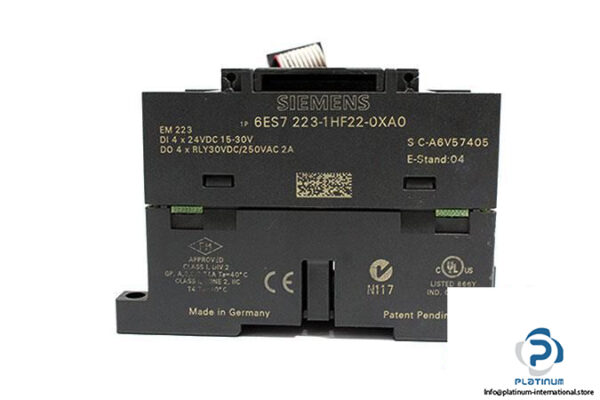

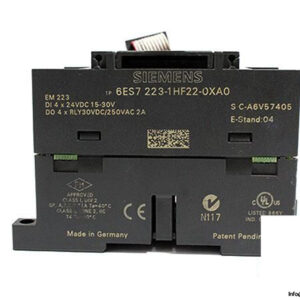

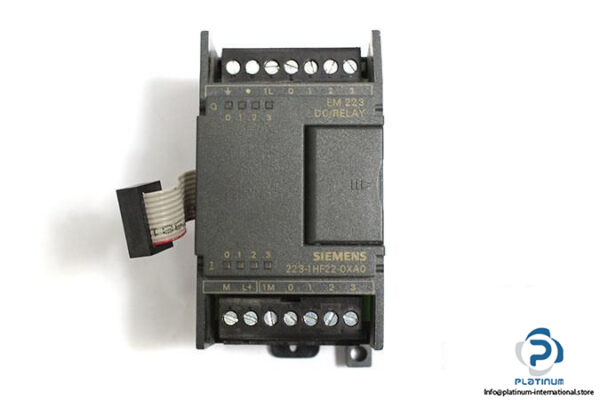

SIEMENS 6ES7 223-1HF22-0XA0 DIGITAL INPUT/OUTPUT COMBINATION MODULE

Used
Manufacturer: Siemens

SIEMENS 6ES7 223-1HF22-0XA0 DIGITAL INPUT/OUTPUT COMBINATION MODULE

SIEMENS EM 223 MODULE

The Siemens EM 223 digital I/O module features 4 inputs and 4 relay outputs, designed for S7-22X CPUs in the SIMATIC S7-200 series. Operates with 24V DC and 230V AC loads with high electrical isolation and compact size.

SKU: 965489 Category: Tags: , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

SIEMENS EM 223 DIGITAL I/O COMBINATION MODULE

The Siemens EM 223 is a compact and powerful digital input/output combination module designed for the SIMATIC S7-200 family. This versatile module is engineered to provide seamless integration with S7-22X CPUs, delivering reliable performance in industrial automation systems.

Manufacturer: Siemens
Family: SIMATIC S7-200
Type: Digital Input / Output Combination Module
Model: EM 223
MRN: 6ES7223-1HF22-0XA0
REF NO: C-A6V57405
E.Stand: 04
Uses: For Only S7-22X CPU

Technical Information

  • Supply Voltage: 24V DC load L+, 230V (24 / 230VAC) load L1
  • Digital Inputs: 4
  • Input Voltage: 24V DC
  • Input Current: 4 mA
  • Input Delay: 4.5 ms
  • No. of Digital Relay Outputs: 4
  • Output Current: 2000 mA
  • Isolation: 500V AC
  • Dimensions (W x H x D): 46 mm x 80 mm x 62 mm
Weight0,16 kg
