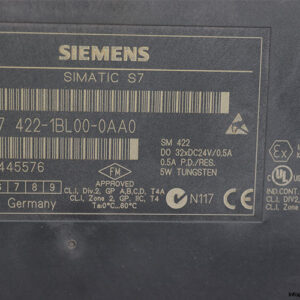

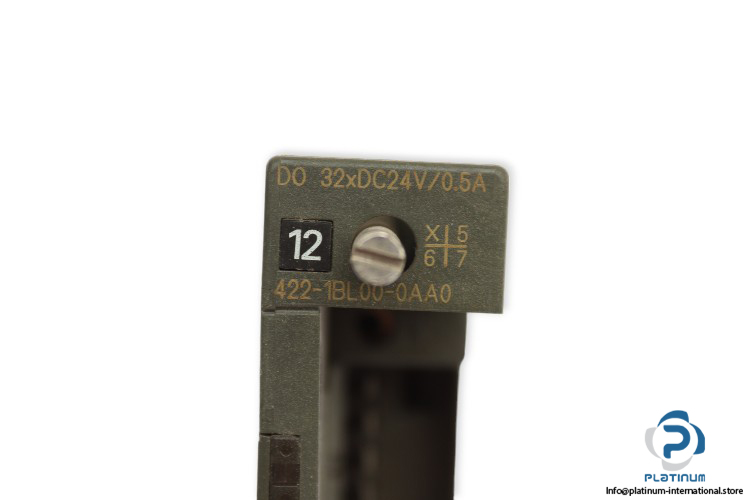

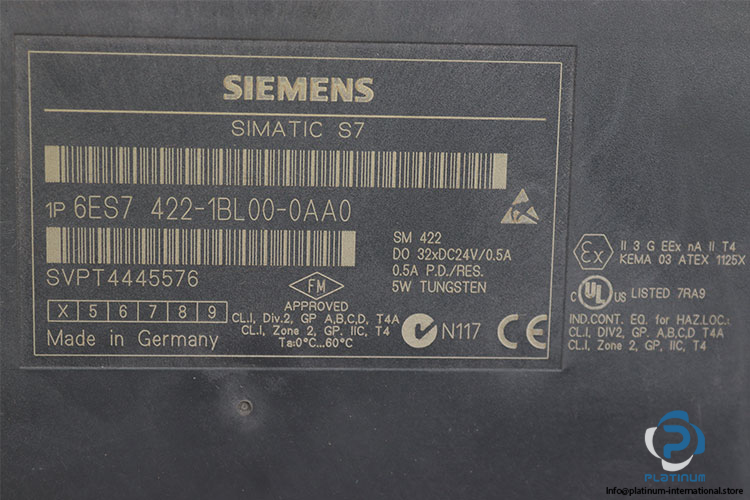

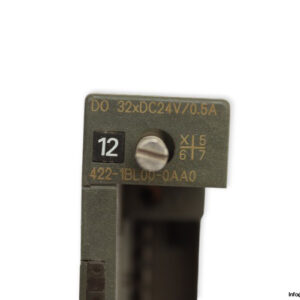

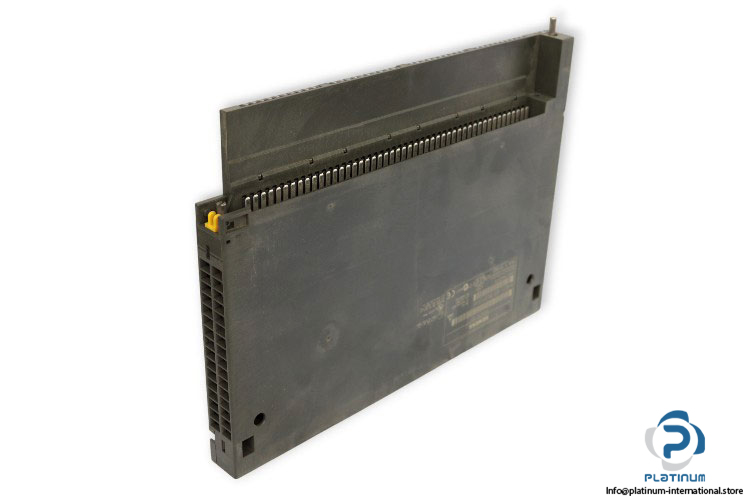

Manufacturer: Siemens
Type: Digital Output Module
MNR: 6ES7422-1BL00-0AA0
Family: SIMATIC S7-400

No. of digital outputs (DO): 32
Supply voltage: 24 V DC rated; (20.4 … 28.8 V DC)
Input current: 30 mA without load, 200mA from backplane bus 5 VDC
Output current:
— for signal “1” rated value 0.5 A
— for signal “1” permissible range, min. 5 mA
— for signal “1” permissible range, max. 0.6 A
— for signal “0” residual current, max. 0.3 mA
Switching: with resistive load, max. 100 Hz, with inductive load, max. 0.5 Hz
Power loss: 4 W
Switching capacity on lamp load: 5W
Isolation tested voltage: 500 V AC/707 V DC
Output delay with resistive load: “0” to “1”, max. (1 ms), “1” to “0”, max. (1 ms)
Temperature: 0 … 60°C
Dimensions: 25 x 290 x 210 mm
