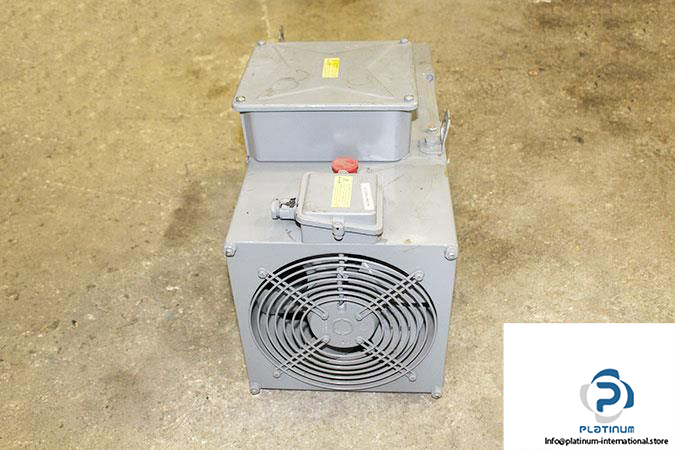

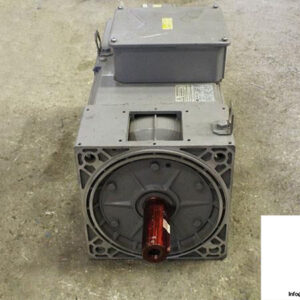

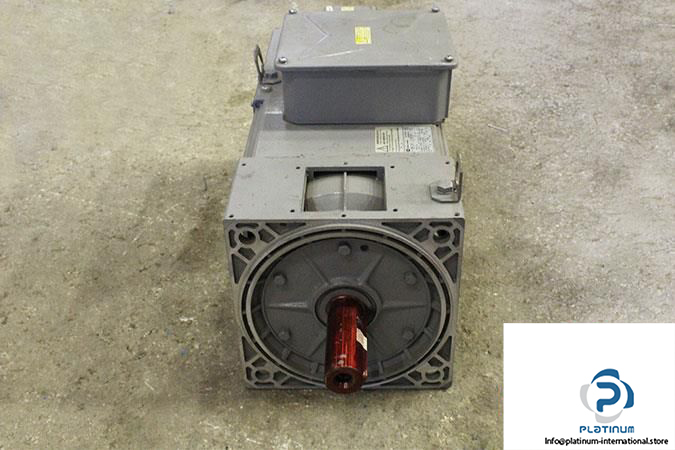

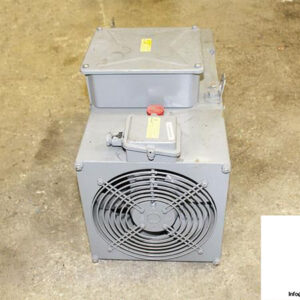

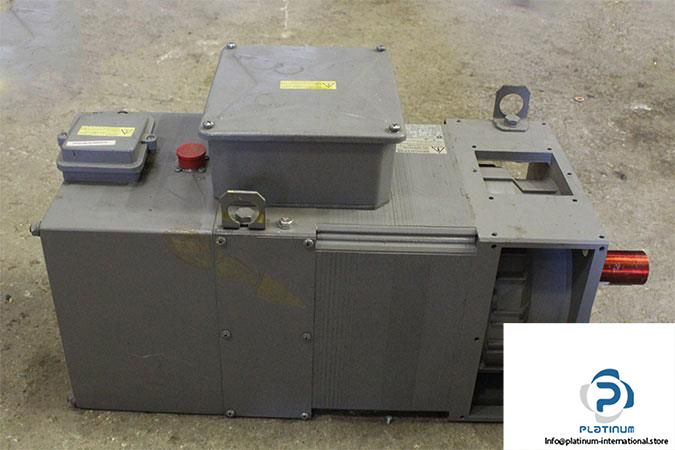

CONTROL TECHNIQUE HMFU132S ELECTRIC MOTOR

The CONTROL TECHNIQUE HMFU132S electric motor is engineered for industrial reliability and performance. With an 18 kW power rating and advanced encoder system, it™s ideal for high-demand, precision-driven environments. Compliant with IEC standards and built for continuous operation, this motor offers robust efficiency and durability.

Manufacturer: CONTROL TECHNIQUE
Type: Electric Motor
Family: HMFU
Model: HMFU 132 S
MRN: HMFU132S184DE
S No.: 05 M 88

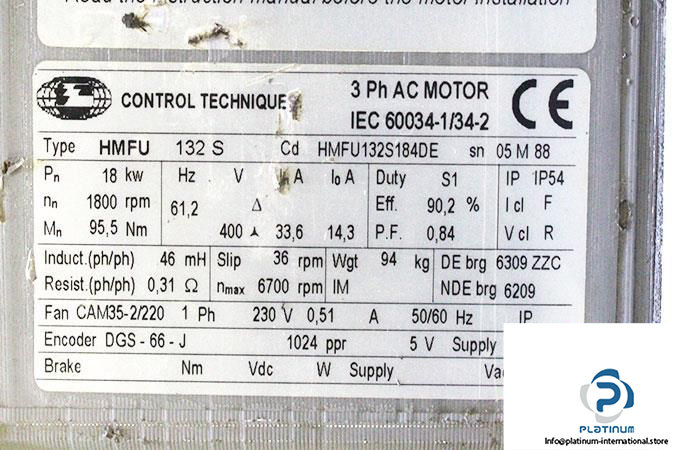

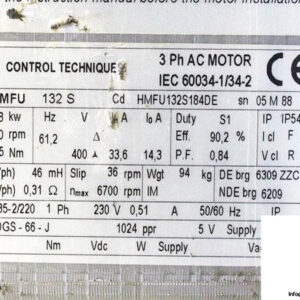

Technical Information

• Voltage: 400 V
• Frequency: 61.2 Hz
• Power: 18 kW
• Rated Torque: 95.5 Nm
• Speed: 1800 rpm (max. 6700 rpm)
• Stall Current: 14.3 A
• Standard: IEC 60034-1 / IEC 60034-2
• Isolation Class: F
• Duty: S1
• Efficiency: 90.2%
• Power Factor: 0.84
• Protection: IP54
• Encoder: DGS-66-J
• Encoder Pulses: 1024 ppr
• Encoder Voltage: 5 V
• Fan: CAM35-2/220
• Fan Voltage: 230 VAC
• Fan Current: 0.51 A
• Fan Frequency: 50/60 Hz
