CONTROL TECHNIQUES 115DSC300TAAAA SERVO MOTOR
The CONTROL TECHNIQUES 115DSC300TAAAA Servo Motor is designed for high-performance applications, delivering precision and reliability. With a rated voltage of 380/440 VAC, continuous torque of 9.5 Nm, and a rated speed of 3000 RPM, this motor ensures efficient operation in demanding environments.
Manufacturer: CONTROL TECHNIQUES
Type: Servo Motor
Model: 115DSC300TAAAA

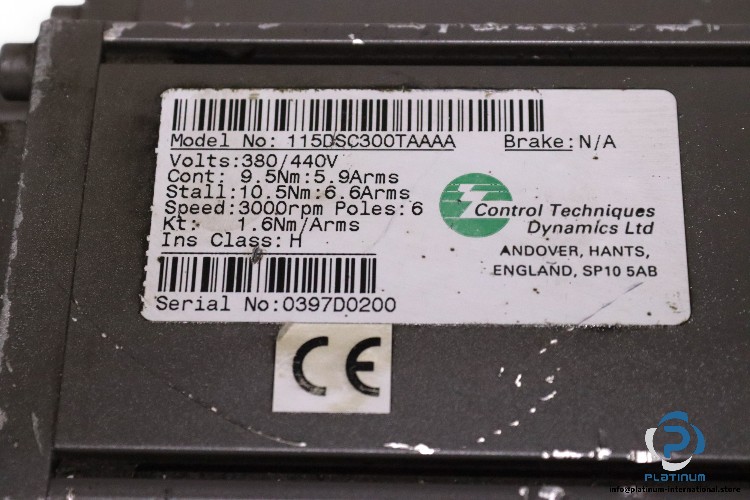

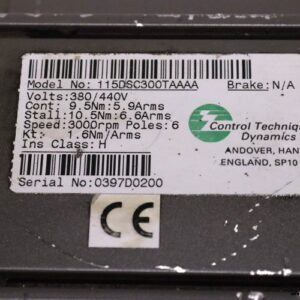

Technical Specifications
- Rated Voltage: 380/440 VAC
- Cont. Current: 5.9 A
- Cont. Torque: 9.5 Nm
- Stall Current: 6.6 A
- Stall Torque: 10.5 Nm
- Rated Speed: 3000 RPM
- Torque Constant: 1.6 Nm/A
- Insulation Class: H
- No of Poles: 6
