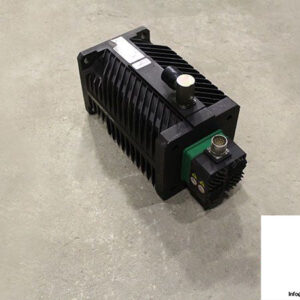

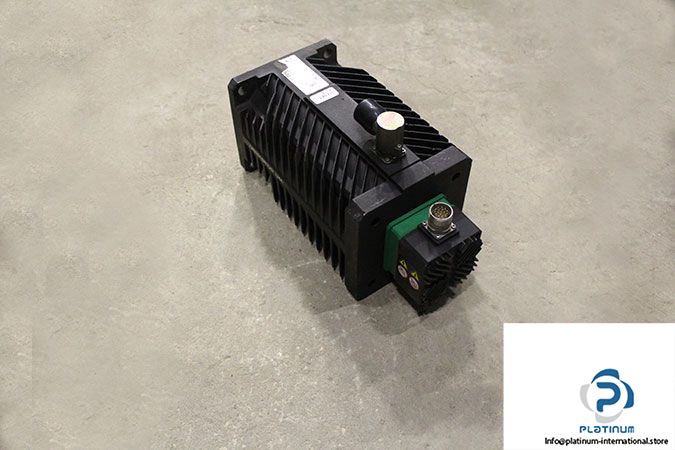

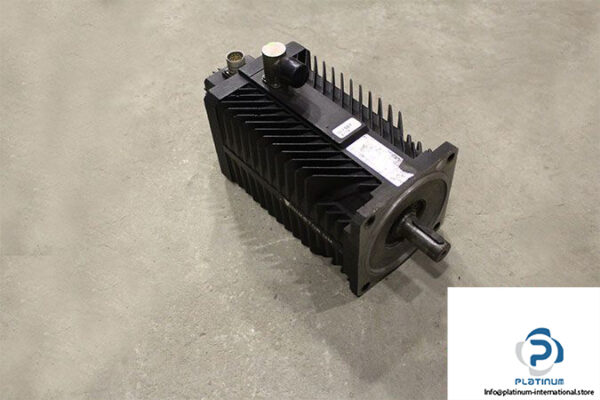

Manufacturer: Control Techniques

Type: Brushless AC Servo Motors

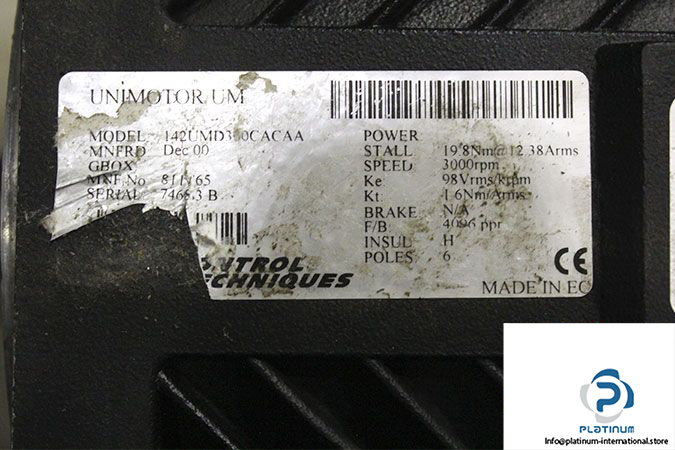

Model: 142 UMD 330 CACAA

Frame Size: 142

Motor Type: UM-For Uni drive

Stator Length: D

Stall Current [A]: 12.38

Still Torque [Nm]: 19.8

Rated Speed [rpm]: 3000

Constant Voltage [Vrms/krpm]: 98

Constant Torque [Nm/Arms]: 1.6

Number of Poles: 6

Insulation Class: H

Weight [kg]: 16.155
