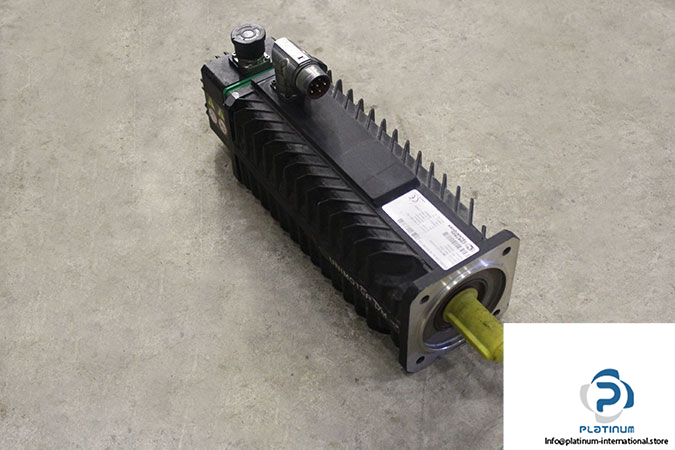

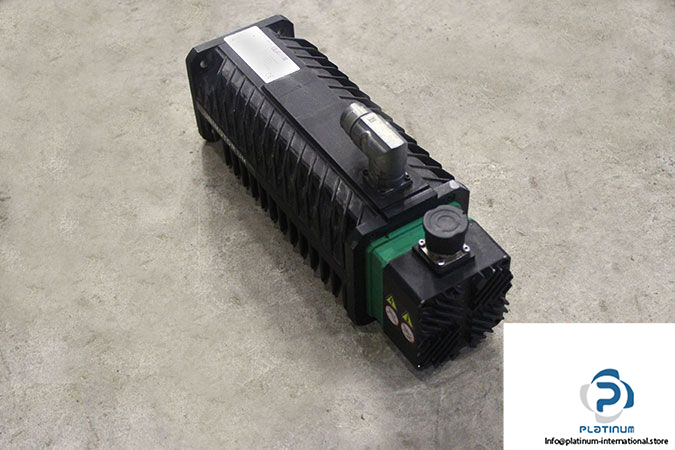

CONTROL TECHNIQUES 95UMC301CACAA BRUSHLESS AC SERVO MOTOR

This high-performance brushless AC servo motor from Control Techniques delivers precision, speed, and torque consistency for demanding motion control systems. Engineered for reliability and efficiency, it features advanced feedback and braking systems for industrial automation.

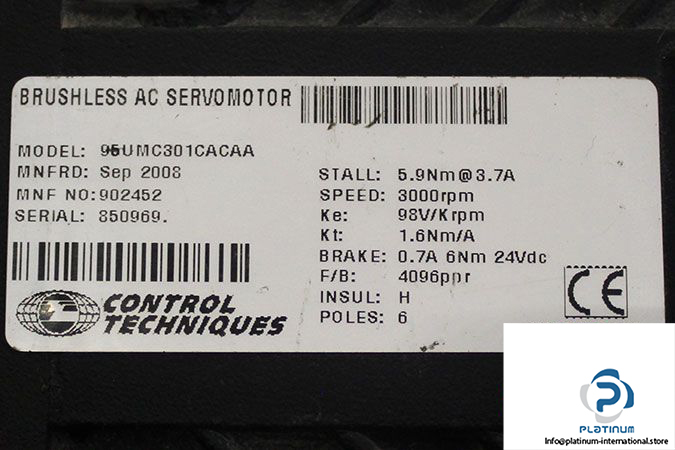

Manufacturer: Control Techniques
Type: Brushless AC Servo Motor
Model: 95UMC301CACAA
MNF No.: 902452
Ref No.: 850969

Technical Information

• Frame Size: 95
• Stall Current [A]: 3.7
• Voltage Constant [V/Krpm]: 98
• Rated Speed [rpm]: 3000
• Stall Torque [Nm]: 5.9
• Constant Torque [Nm/A]: 1.6
• Brake Voltage [VDC]: 24
• Brake Current [A]: 0.7
• Brake Torque [Nm]: 6
• Number of Poles: 6
• Insulation Class: H
• Feedback Device: Incremental Encoder 4096 C/T
• Connection Type: Connector (Std)
