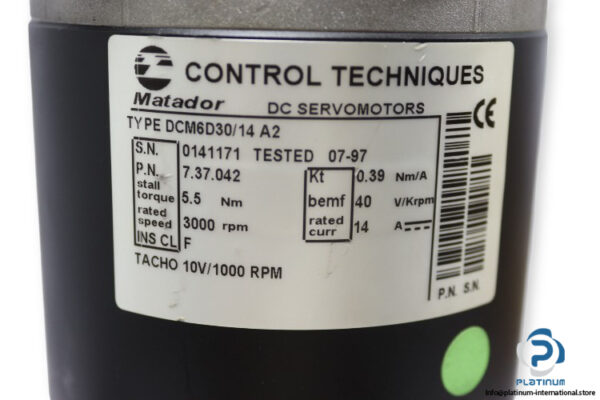

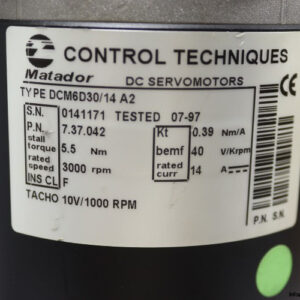

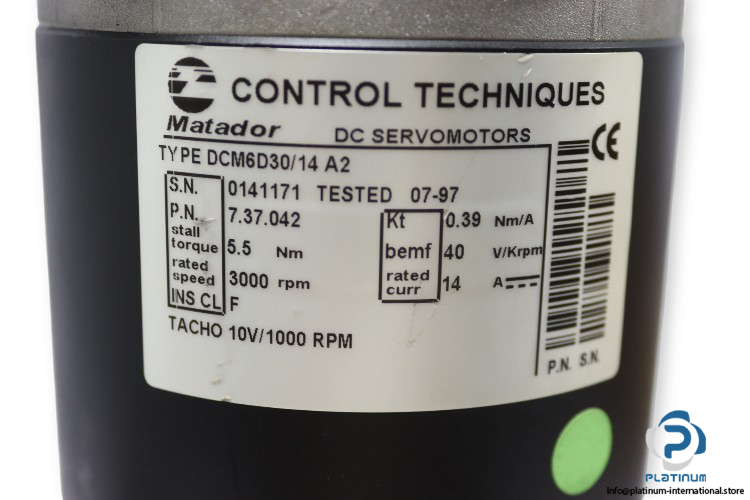

Manufacturer: Control Techniques
Type: DC Servo Motors
Model: DCM6D30/14 A2
S.N.: 0141171
P.N.: 7.37.042
Stall torque: 5.5 Nm
Rated current: 14 A
Rated speed: 3000 rpm
Maximum current: 70 A
Torque constant Kt: 0.39 Nm/A
Voltage constant: 40 V/krpm
Rotor inertia: 2.8 10-3 Kgm2
Insulation class: F
Motor feedback: tachometer
Tacho voltage: 10 V
Tacho speed: 1000 rpm
