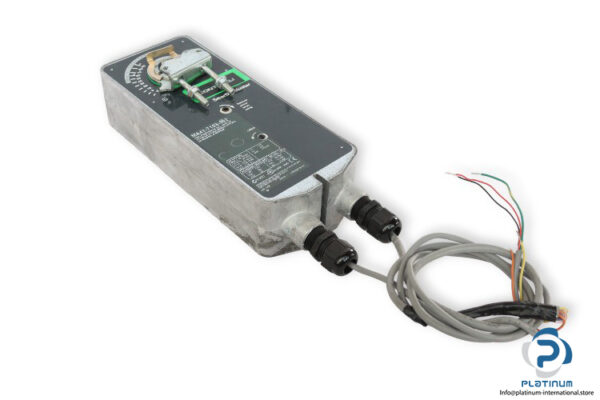

Manufacture: Controlli
Type: Spring Return Actuator

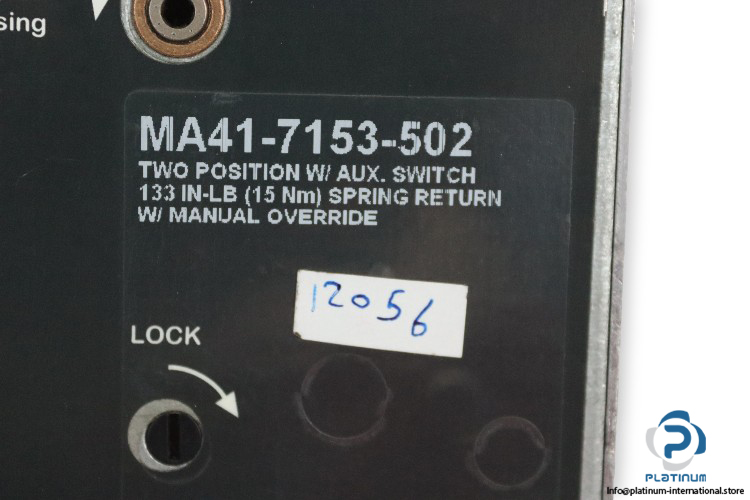

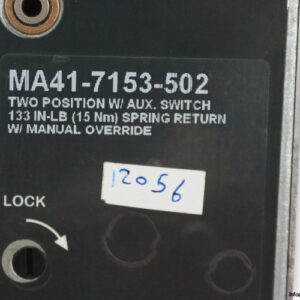

Model: MA417153502

Torque: 18 Nm

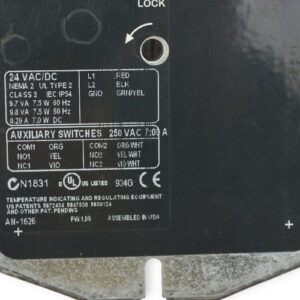

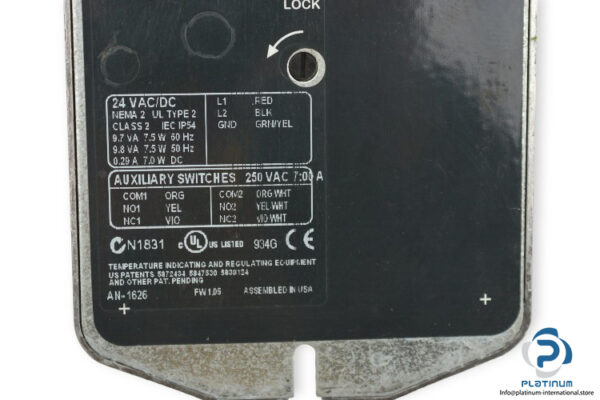

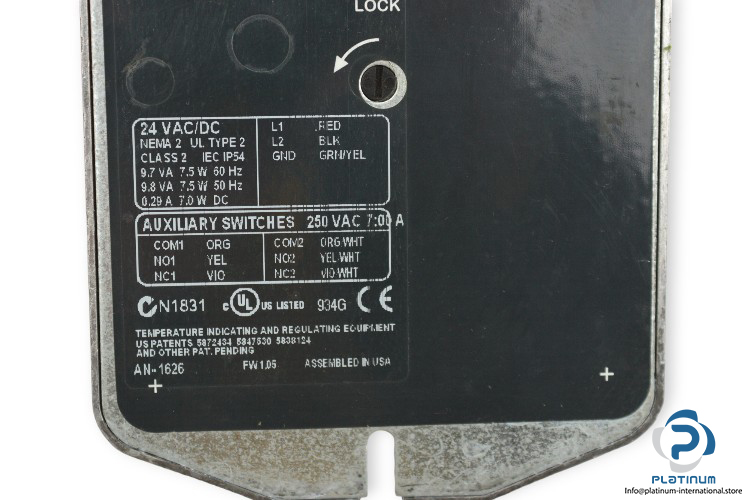

Nominal voltage: 24 V AC/DC
Nominal voltage frequency: 50/60 Hz
Actuator Power: 9.7 VA,7.5 W@60 Hz/9.8 VA,7.5 W@50Hz/7 W(DC)
Rated current DC: 0.29 A
Running time: Running: <190s, Spring Return: <30s
Rotation angle: max. 95°
Operating range: 0 … 10 V
Auxiliary switch Voltage: 250 V AC
Enclosure degree: NEMA 2, IP54
Control Signal: Two Position (On/Off) SPST

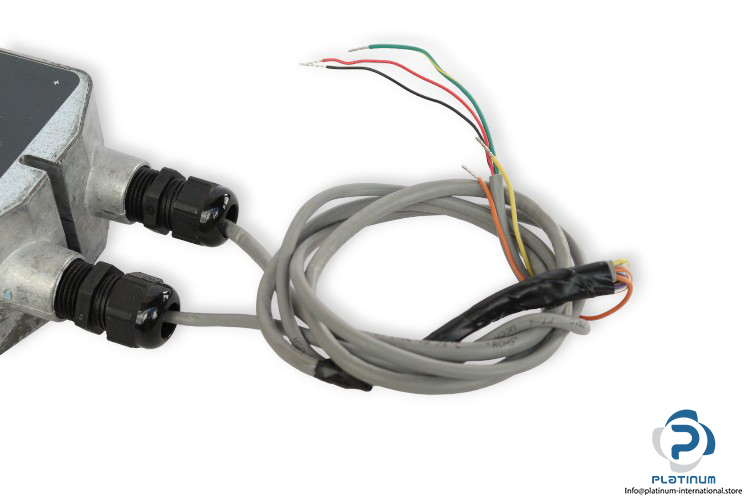

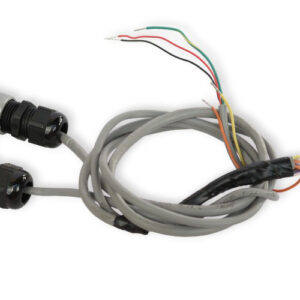

Connections: 0.9 m long, appliance cable
Operating temperature: -30 … 60°C
Dimensions: 287 x 100 x 89 mm
