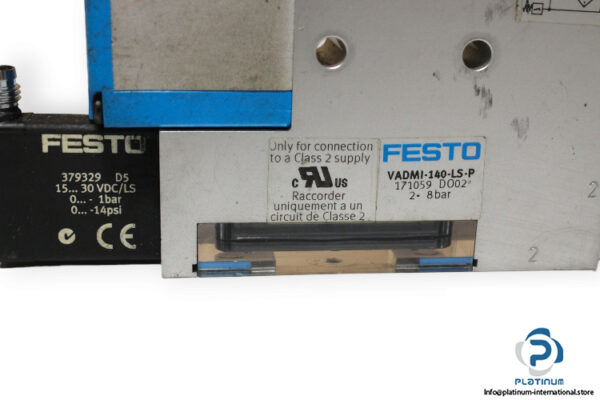

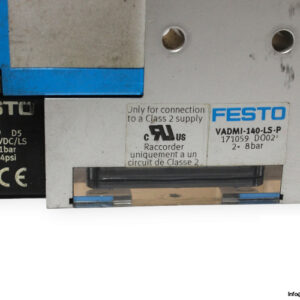

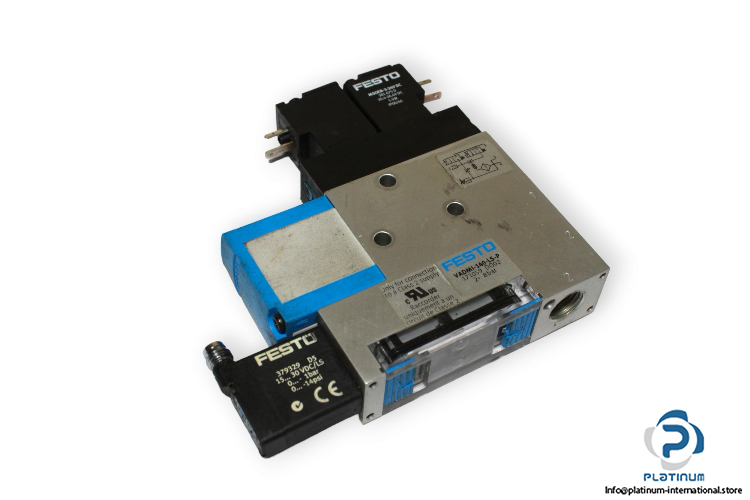

FESTO VADMI-140-LS-P VACUUM GENERATOR WITH SOLENOID COILS

The FESTO VADMI-140-LS-P is a high-performance vacuum generator designed for reliable pneumatic vacuum applications. Engineered with a 1.4 mm Laval nozzle and supported by FESTO solenoid coils, this generator ensures consistent vacuum generation under various pressure conditions.

Manufacturer: FESTO
Type: Vacuum Generator
Model: VADMI-140-LS-P
Part No.: 171059

Technical Information

• Width: 22 mm
• Operating Pressure: 2 / 8 bar
• Filtration Grade: 40 micron
• Nominal Width of Laval Nozzle: 1.4 mm
• Switching Contact: Normally Open (NO)

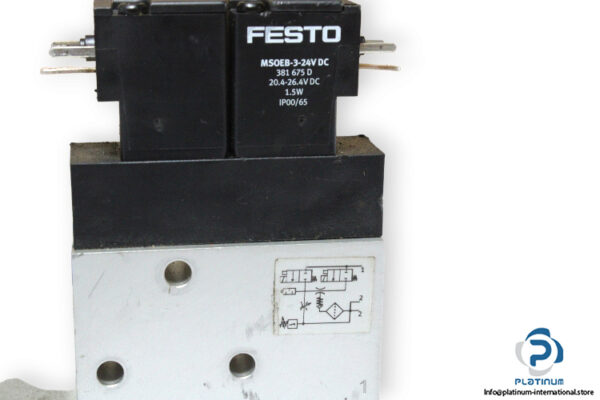

Attachment: FESTO 381675 Solenoid Coil

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSOEB-3-24VDC
Part No.: 381675

• Operating Voltage: 20.4 / 26.4 V DC
• Power Consumption: 1.5 W
• Protection Class: IP00 / IP65

Attachment: FESTO 379329 Solenoid Coil

Manufacturer: FESTO
Type: Solenoid Coil
Model: 379329

• Operating Voltage Range: 15 / 30 V DC
• Ambient Temperature: 0 / 50 °C
• Port Size: G1/8
