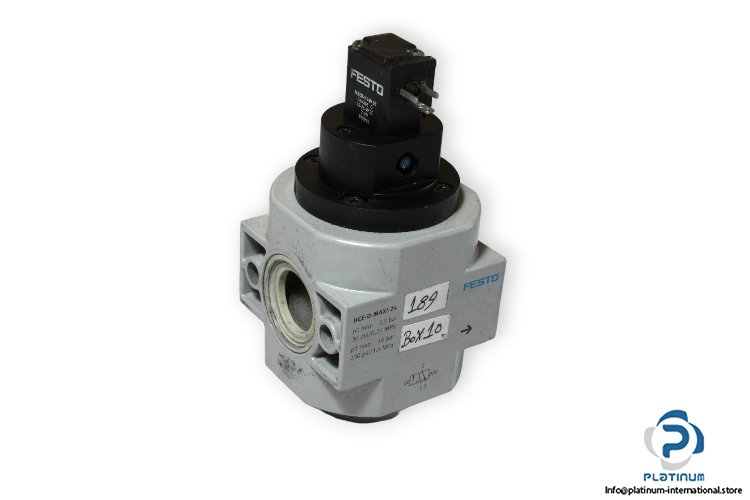

FESTO HEE-D-MAXI-24 ON/OFF VALVE WITH SOLENOID COIL

The FESTO HEE-D-MAXI-24 is a robust and efficient electrically actuated ON/OFF valve, engineered for precise control in pneumatic systems. This 3/2-way piston gate valve, built with die-cast aluminium, delivers dependable performance across a wide pressure range.

Manufacturer: FESTO
Type: ON/OFF Valve

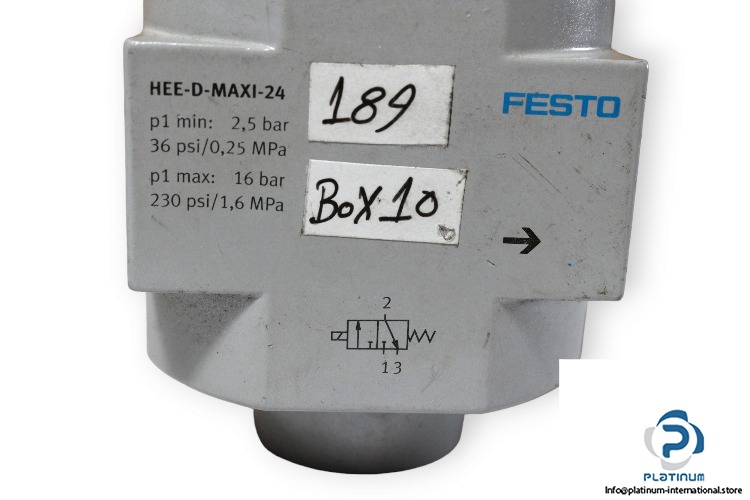

Model: HEE-D-MAXI-24
Part No.: 172962

Technical Information

• Fluid: Air
• Size: MAXI
• Design: Piston gate valve
• Function: 3/2-way, closed, monostable
• Type of Actuation: Electrically
• Operating Pressure: 2.5 … 16 bar
• Pneumatic Connection: G3/8
• Material: Die-cast aluminium
• Ambient Temperature: -10 to 60 °C

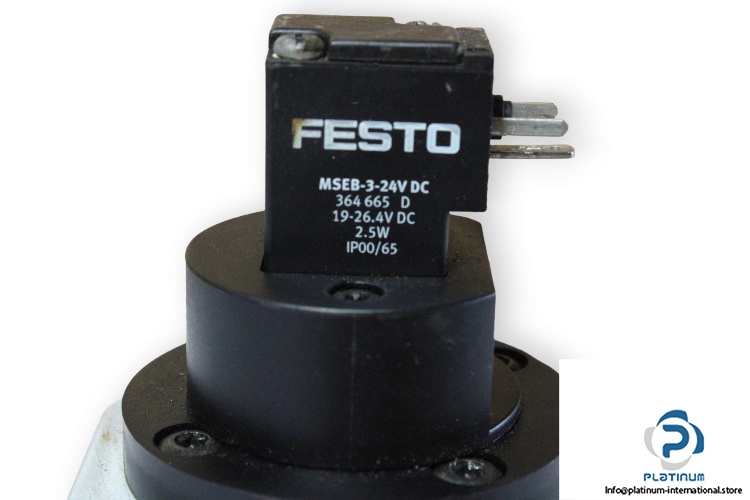

Attachment: FESTO SOLENOID COIL

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSEB-3-24V DC
Part No.: 364665

Solenoid Coil Technical Information

• Supply Voltage: 19 … 26.4 V DC
• Power Consumption: 2.5 W
• Protection Class: IP00 / IP65
