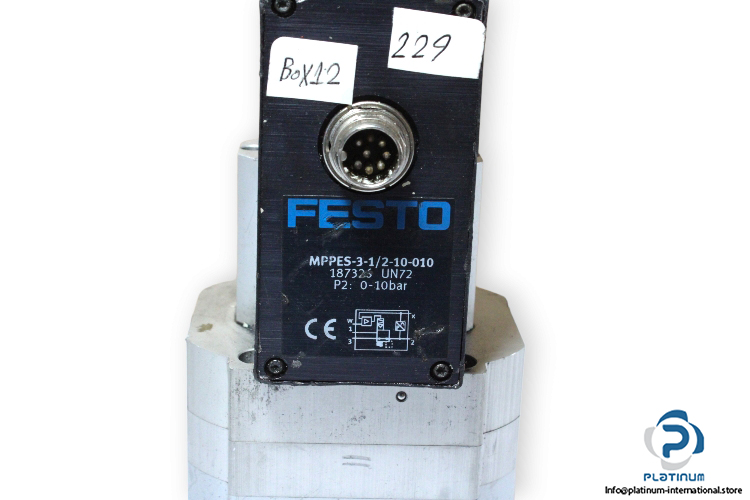

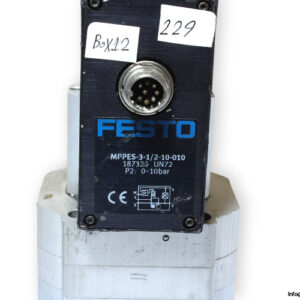

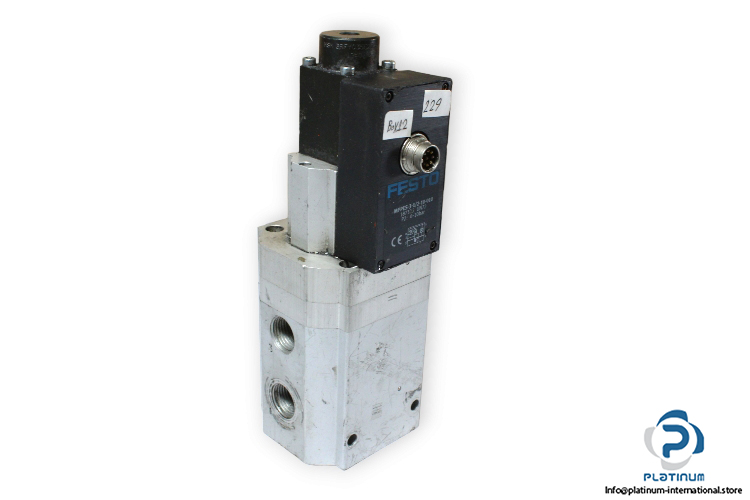

FESTO MPPES-3-1/2-10-010 PROPORTIONAL PRESSURE REGULATOR
The FESTO MPPES-3-1/2-10-010 is a high-precision proportional pressure regulator engineered for demanding industrial automation tasks. With electrically actuated control and pilot-operated piston design, it offers accurate and reliable pressure regulation in pneumatic systems.
Manufacturer: FESTO
Type: Proportional Pressure Regulator
Model: MPPES-3-1/2-10-010
Part No.: 187326
Technical Information
- Nominal Width Pressurization: 11 mm
- Exhaust Nominal Width: 12 mm
- Actuation Type: Electrically
- Sealing Principle: Soft
- Structural Design: Pilot-Controlled Piston Control Valve
- Operating Pressure: 12 bar
- Pressure Regulation Range: 0 / 10 bar
- Inlet Pressure 1: 11 / 12 bar
- Max. Pressure Hysteresis: 0.05 bar
- Switching Time Off: 450 ms
- On Switching Time: 230 ms
- Nominal Operating Voltage: 24 V DC
- Connection Size: G1/2
- Protection Class: IP65
- Ambient Temperature: 0 / 50 °C
