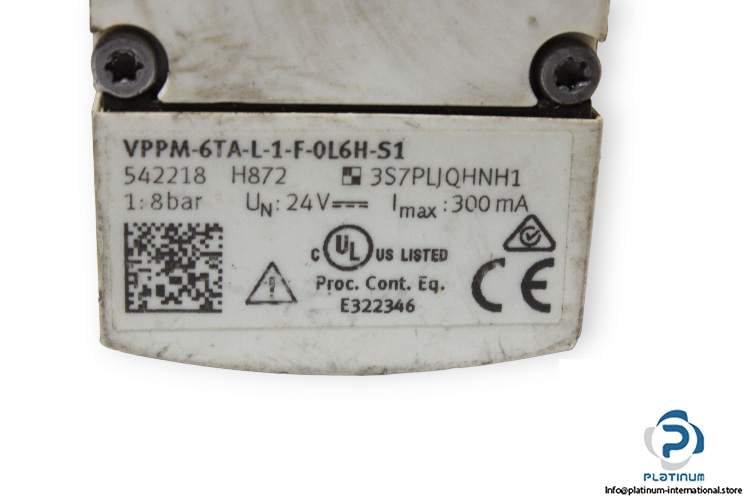

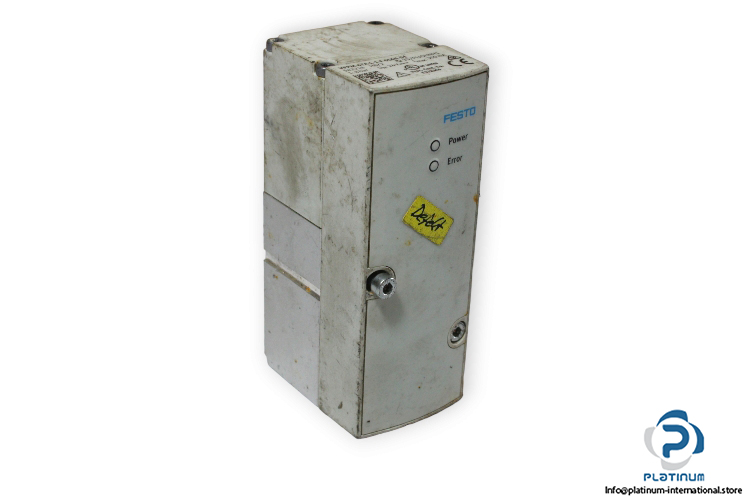

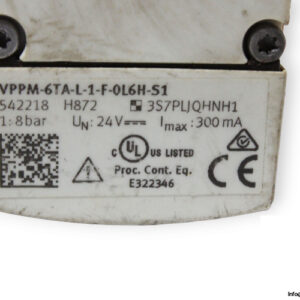

FESTO VPPM-6TA-L-1-F-0L6H-S1 PROPORTIONAL-PRESSURE REGULATOR
The FESTO VPPM-6TA-L-1-F-0L6H-S1 is a precision proportional-pressure regulator designed for advanced pneumatic applications. With a pilot-controlled diaphragm structure and soft sealing principle, it provides accurate and stable pressure regulation for demanding environments.
Manufacturer: FESTO
Type: Proportional-Pressure Regulator
Model: VPPM-6TA-L-1-F-0L6H-S1
Part No.: 542218
Technical Information
- Nominal Width Pressurization: 6 mm
- Exhaust Nominal Width: 4.5 mm
- Actuation Type: Electrical
- Sealing Principle: Soft
- Structural Design: Pilot-Controlled Diaphragm Regulator
- Pressure Regulation Range: 0.06 / 6 bar
- Inlet Pressure 1: 0 / 8 bar
- Max. Pressure Hysteresis: 0.03 bar
- Standard Nominal Flow Rate: 900 l/min
- Operating Voltage Range: 21.6 / 26.4 V DC
- Current Consumption Max.: 300 mA
- Degree Of Protection: IP65
- Medium Temperature: 10 / 50 °C
- Ambient Temperature: 0 / 60 °C
- Pneumatic Connection: Sub-Base
