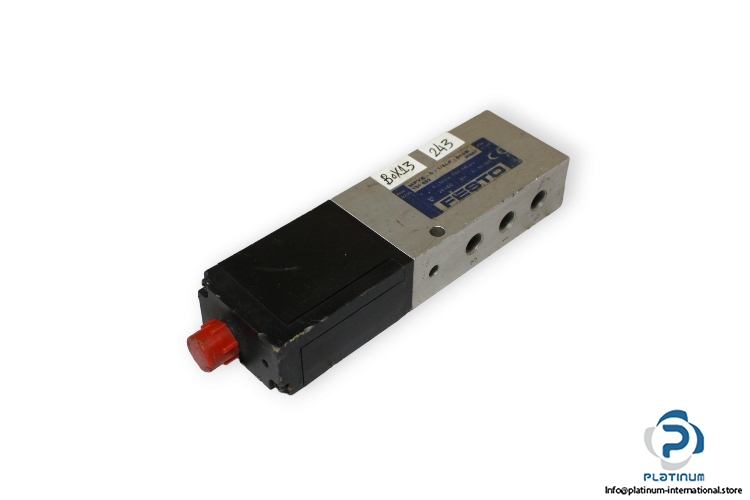

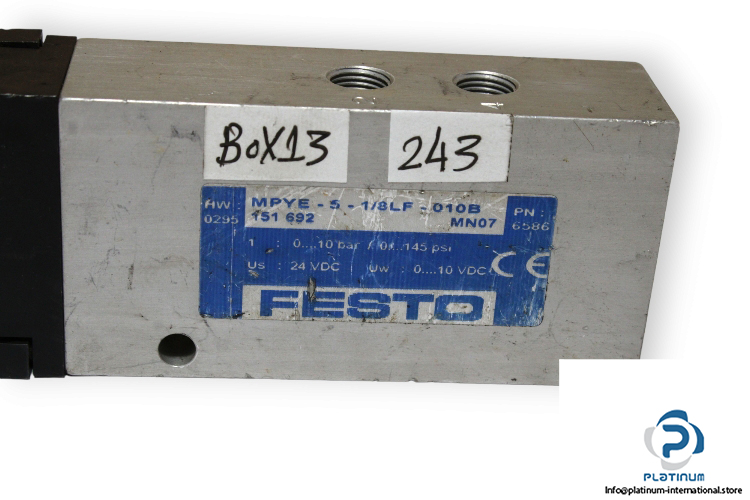

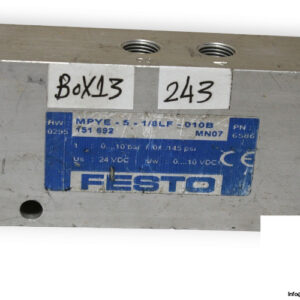

FESTO MPYE-5-1/8-LF-010-B PROPORTIONAL DIRECTIONAL CONTROL VALVE
The FESTO MPYE-5-1/8-LF-010-B is a precision-engineered proportional directional control valve designed for dynamic flow regulation in pneumatic systems. With electrical actuation, high response frequency, and compact form, it ensures accurate and responsive control of compressed air in industrial automation.
Manufacturer: FESTO
Type: Proportional Directional Control Valve
Model: MPYE-5-1/8-LF-010-B
Part No.: 151692
Technical Information
- Fluid: Compressed Air
- Structural Design: Piston Gate Valve
- Nominal Width: 4 mm
- Type of Control: Direct
- Actuation Type: Electrically
- Operating Pressure: 0 / 10 bar
- Nominal Flow Rate: 350 l/min
- Cut-Off Frequency: 95 Hz
- Reset Method: Magnetic Spring
- Port Size: G1/8
- Ambient Temperature: 0 / 50 °C
