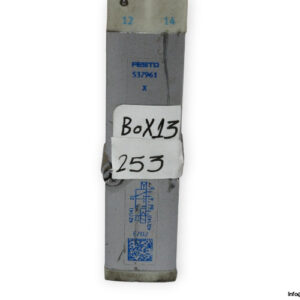

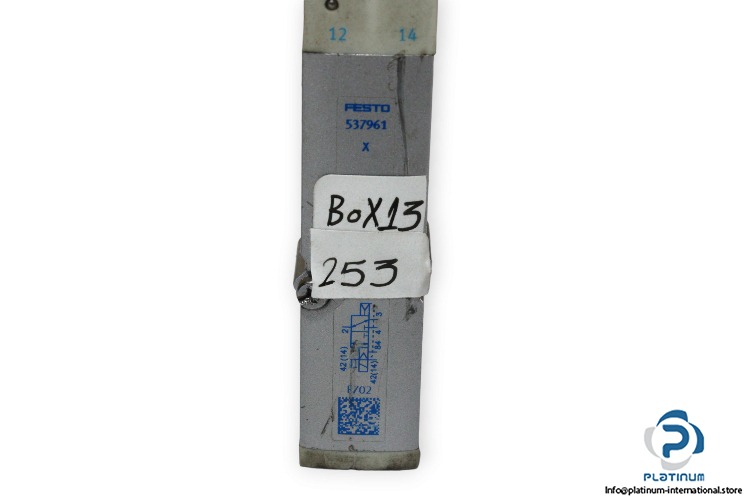

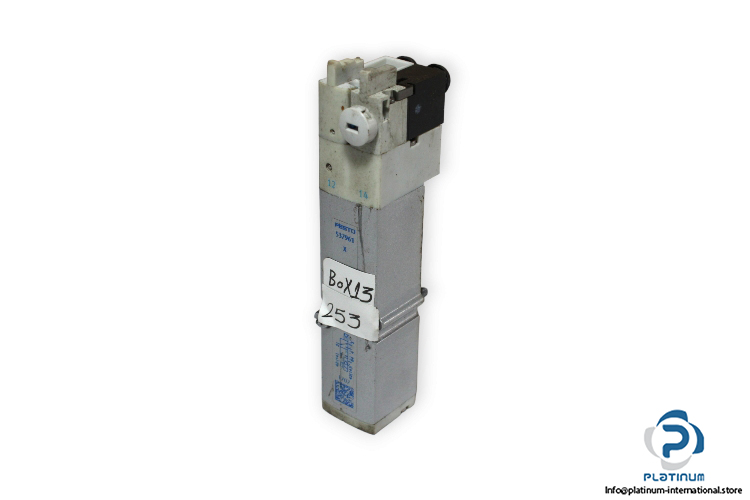

FESTO VMPA2-M1H-X-PI AIR SOLENOID VALVE

The FESTO VMPA2-M1H-X-PI is a high-performance air solenoid valve engineered for reliable and precise control in pneumatic systems. Featuring a 3/2-way monostable function and die-cast aluminium housing, this valve ensures long-lasting performance and energy-efficient operation in a wide pressure range.

Manufacturer: FESTO
Type: Air Solenoid Valve
Model: VMPA2-M1H-X-PI
Part No.: 537961

Technical Information

• Fluid: Air
• Design: Piston gate valve
• Function: 3/2-way, closed, monostable
• Type of Actuation: Electrically
• Operating Pressure: -0.9 to 10 bar
• Pilot Pressure: 3 to 8 bar
• Nominal Flow Rate: 470 l/min
• Operating Voltage: 24 V DC
• Pneumatic Connection: Sub based
• Material: Die-cast aluminium
• Ambient Temperature: -5 to 50 °C
