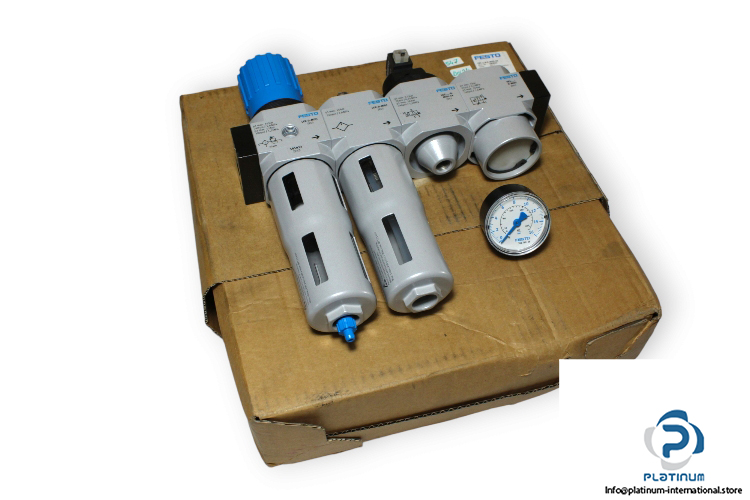

FESTO FRC-3/8-D-MIDI-KE SERVICE UNIT COMBINATION

The FESTO FRC38DMIDIKE is a modular service unit combination designed for compressed air systems, featuring high-performance filtration, regulation, and lubrication. It includes multiple FESTO components to ensure optimal air quality and system efficiency.

Manufacturer: FESTO
Type: Service Unit Combination
Model: FRC-3/8-D-MIDI-KE
Part No.: 185833

Technical Information

• Size: MIDI
• Media: Compressed Air, Neutral Gases
• Pressure Regulation Range: 2.5 / 12 bar
• Operating Pressure: 3 / 16 bar / 36 / 240 PSI / 0.25 / 1.6 MPa
• Nominal Flow Rate: 1420 l/min
• Filtration Grade: 40 micron
• Actuator Lock: Rotary Knob With Detent
• Temperature Range: -10 / 60 °C
• Pneumatic Connection: G3/8

Attachments

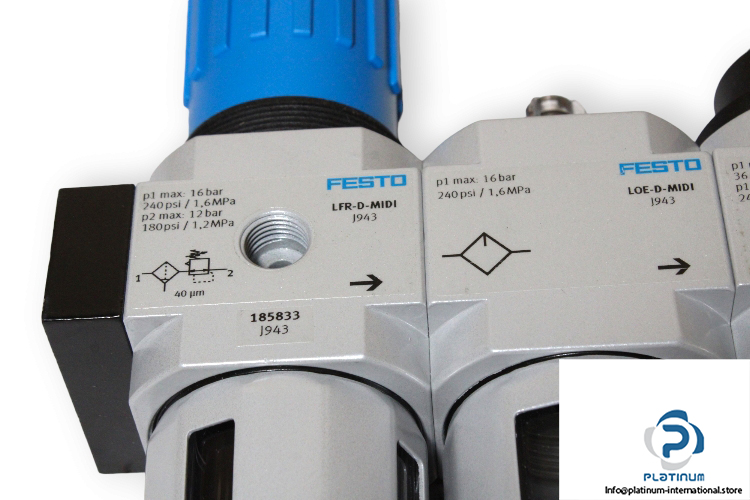

FESTO LFR-D-MIDI FILTER REGULATOR
Manufacturer: FESTO
Type: Filter Regulator
Model: LFR-D-MIDI

FESTO LOE-D-MIDI PROPORTIONAL STANDARD MIST LUBRICATOR
Manufacturer: FESTO
Type: Proportional Standard Mist Lubricator
Model: LOE-D-MIDI

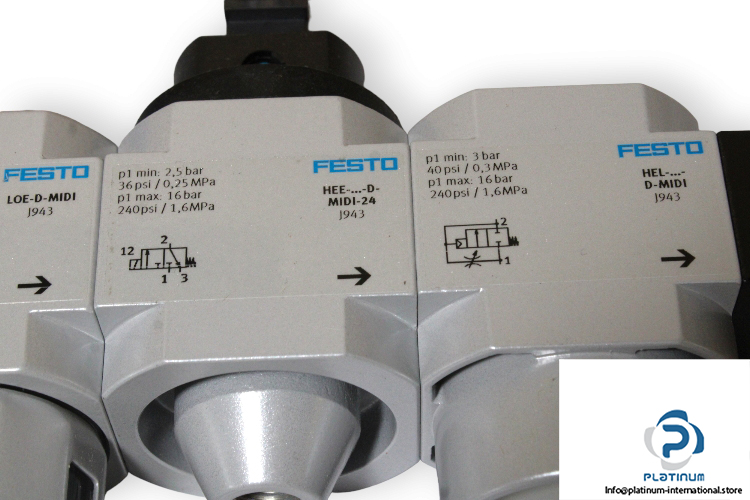

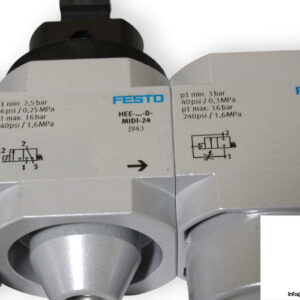

FESTO HEE-D-MIDI-24 ON/OFF VALVE
Manufacturer: FESTO
Type: On/Off Valve
Model: HEE-D-MIDI-24

FESTO HEL-D-MIDI ON/OFF VALVE
Manufacturer: FESTO
Type: On/Off Valve
Model: HEL-D-MIDI

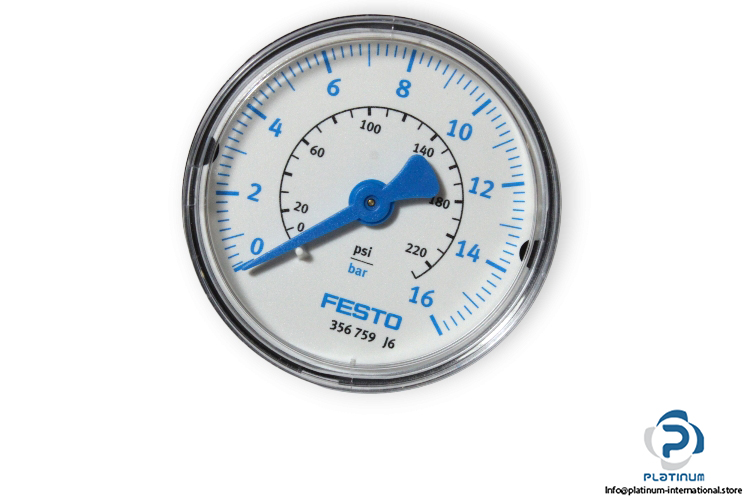

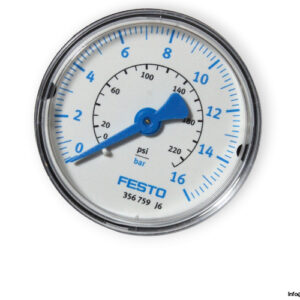

FESTO MA-50-16-1/4 PRESSURE GAUGE
Manufacturer: FESTO
Type: Pressure Gauge
Model: MA-50-16-1/4
Part No.: 356759

Pressure Gauge Technical Information

• Operating Medium: Inert Gases, Neutral Fluids
• Operating Pressure Display Range: 0 / 16 bar (0 / 232 PSI)
• Scale: Double Scale / Bar (Outside Scale) / PSI (Inner Scale)
• Material: ABS
• Connection: G 1/4
• Medium Temperature: -20 / 60 °C
