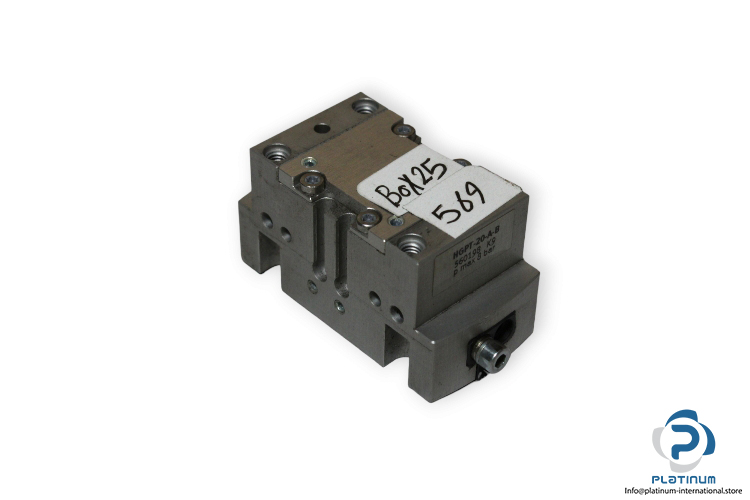

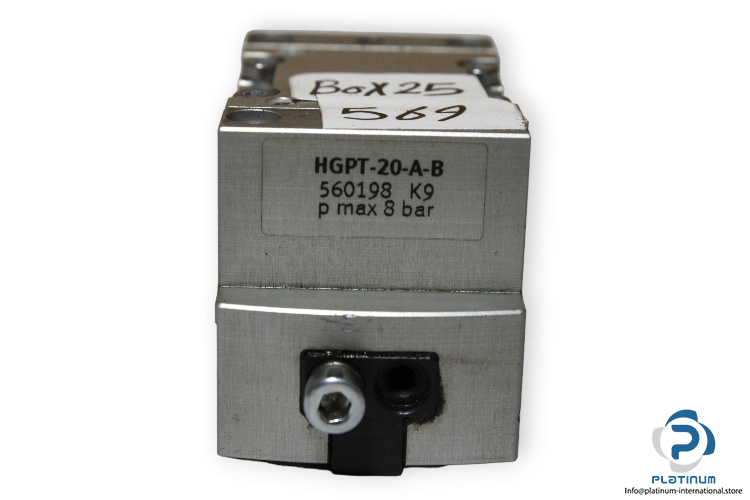

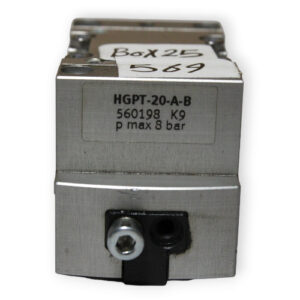

Manufacturer: FESTO
Type: Parallel gripper
Model: HGPT-20-A-B
Part No.: 560198

Size: 20
Stroke per gripper jaw: 4 mm
Max. interchangeability: 0.2 mm
Max. gripper jaw angular play ax, ay: 0.1 deg
Max. gripper jaw backlash Sz: 0.02 mm
Rotational symmetry: 0.2 mm
Pneumatic gripper repetition accuracy: 0.04 mm
Mode of operation: Double acting
Number of gripper jaws: 2
Actuator system: Pneumatic
Operating pressure: 3 bar … 8 bar
Operating pressure for sealing air: 0 bar … 0.5 bar
Max. operating frequency of pneumatic gripper: 3 Hz
Min. opening time at 6 bar: 22 ms
Pneumatic Connection: 5 mm
Temperature: 5 °C … 60 °C
