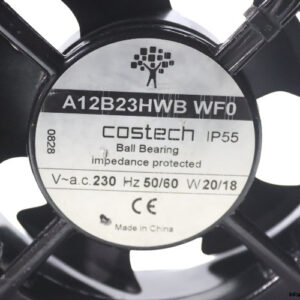

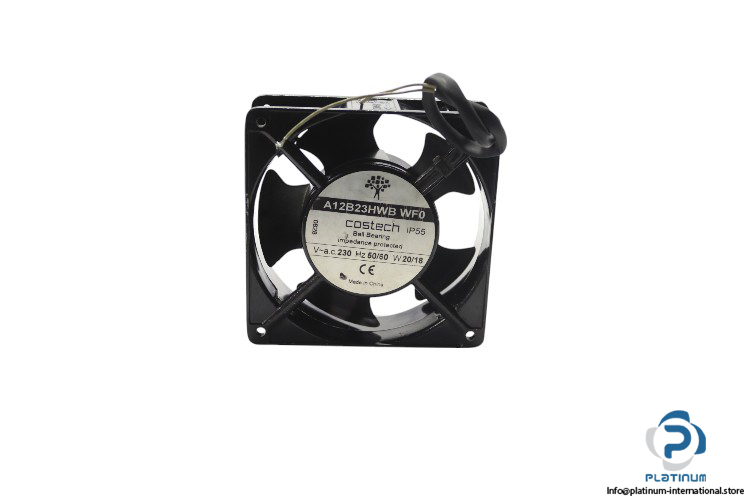

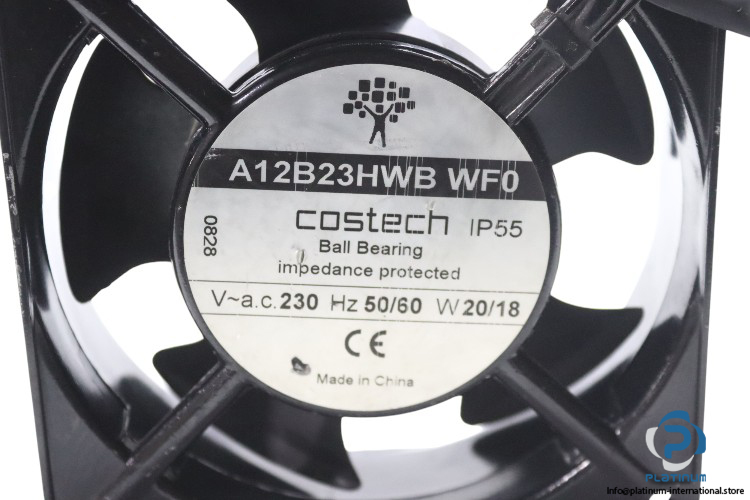

Costech A12B23HWB WF0 Axial Fan

The Costech A12B23HWB WF0 Axial Fan is a high-efficiency cooling solution designed for industrial and commercial ventilation systems. Featuring a square frame, ball bearing system, and IP55 protection class, it ensures durability and stable airflow in challenging environments.

Manufacturer: Costech

Type: Axial Fan

Model: A12B23HWB WF0

Technical Information:

• Frame Shape: Square Frame
• Number of Blades: 5
• Dimensions: 119 x 119 x 38 mm
• Direction: Push
• Bearing Type: Ball Bearing
• Voltage: 230 V AC
• Air Flow: 150 m³/h
• Speed: 2650 rpm
• Power Rating: 0.02/0.018 kW, 20/18 W
• Frequency: 50/60 Hz
• Inverter: Without Inverter
• Number of Wires: 2
• Blade Material / Housing Material: Plastic / Metal
• Protection Class: IP55
