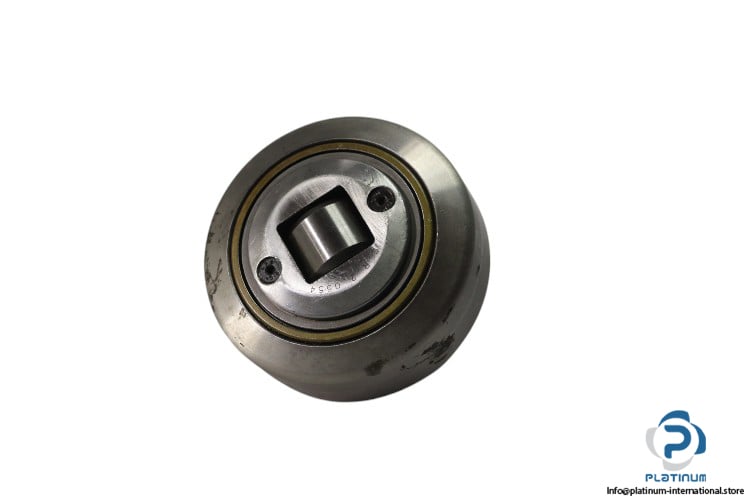

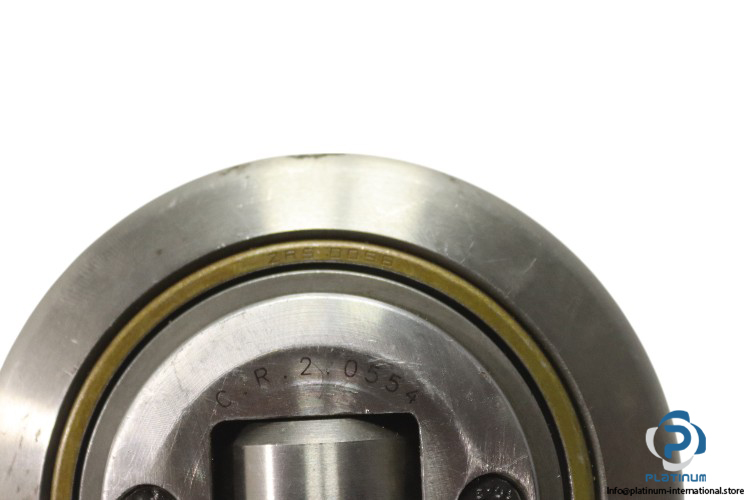

CR 2.0554 (ZRS.0058) Fixed Combined Bearing

The CR 2.0554 (ZRS.0058) Fixed Combined Bearing is engineered to handle both radial and axial loads simultaneously, making it ideal for applications requiring high stability and load capacity. With its ZRS sealed execution, this bearing ensures reliable performance and long service life in challenging industrial environments.

Manufacturer: CR

Type: Fixed Combined Bearing

Model: 2.0554 (ZRS.0058)

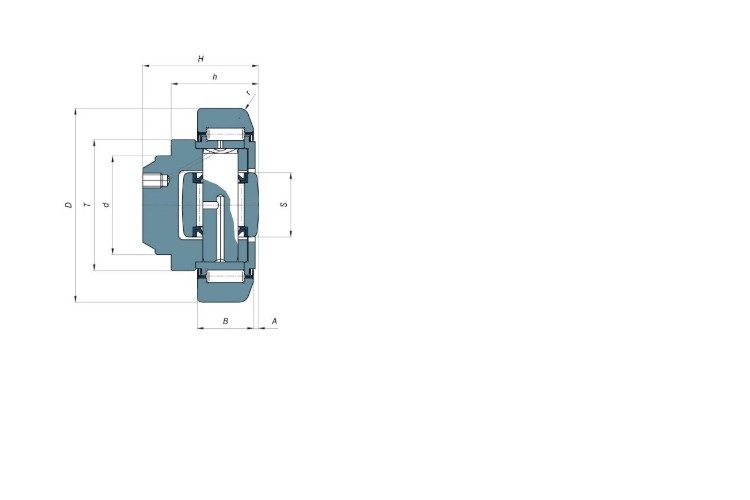

Technical Information:

• Bore Diameter (d): 45 mm
• Outer Diameter (D): 88.4 mm
• Width (B): 30 mm
• T: 59 mm
• H: 57 mm
• h: 44 mm
• Dynamic Load Rating: 83.8 kN
• Static Load Rating: 132.3 kN
• Dynamic Axial Load: 27.7 kN
• Static Axial Load: 42 kN
• Sealing: ZRS Execution
