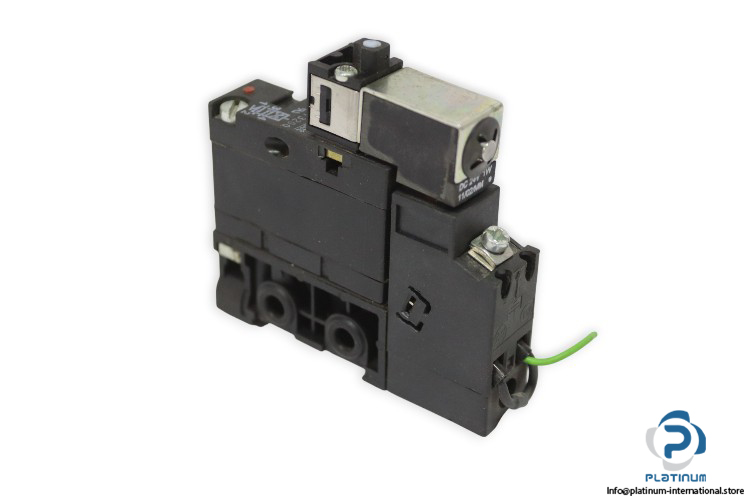

CROUZET 81 513 200 Miniature Control Valve
The CROUZET 81 513 200 is a compact, high-performance miniature control valve designed for precise pneumatic switching in automation and machine control systems. With a fast 5 ms switching time and efficient 4/2-way operation, this valve offers reliable control for low-flow pneumatic circuits. Its 24 V DC coil, push-in pneumatic connection, and low power consumption make it ideal for OEM equipment, compact actuators, robotics, and precision manufacturing setups.
Manufacturer: CROUZET
Type: Miniature Control Valve
Model: 81 513 200
Technical Information
- Fluid: Air
- Valve Function: Electrical
- Type of Actuation: 4/2 Way Valve
- Pneumatic Connection: Push-In
- Coil Type: 81519
- Code: 11/02/MM

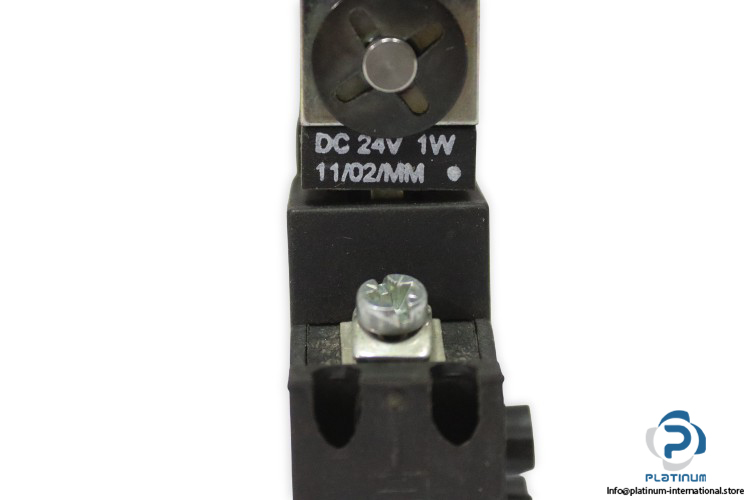

- Supply Voltage per Coil: 24 V DC
- Power Rating: 1 W
- Flow at 90 psi (6 bar): 7 CFM
- Operating Temperature: ˆ’10 to +50 °C
- Cv (kV): 0.15
- Switching Time (Relay Only): 5 ms
