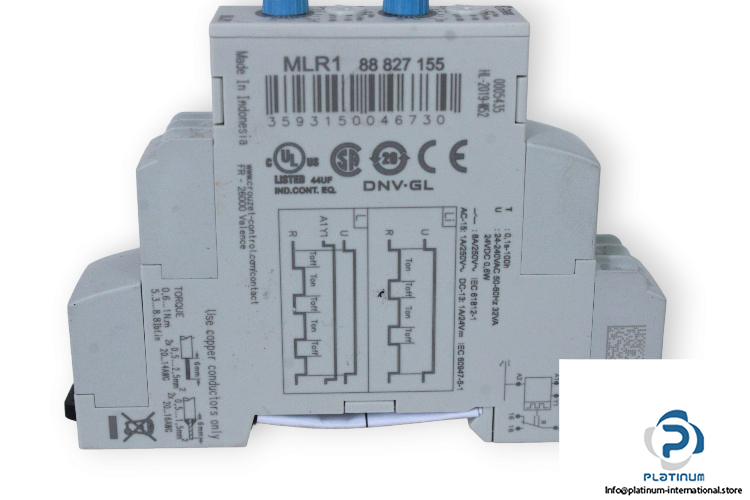

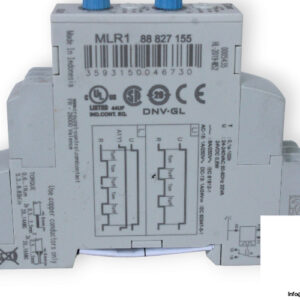

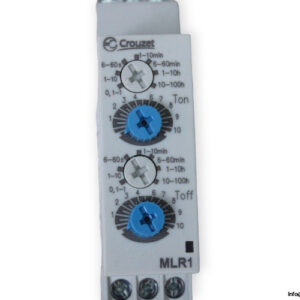

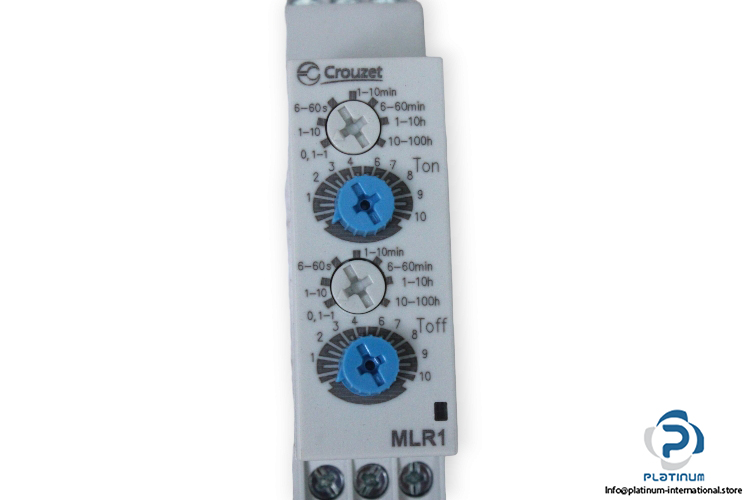

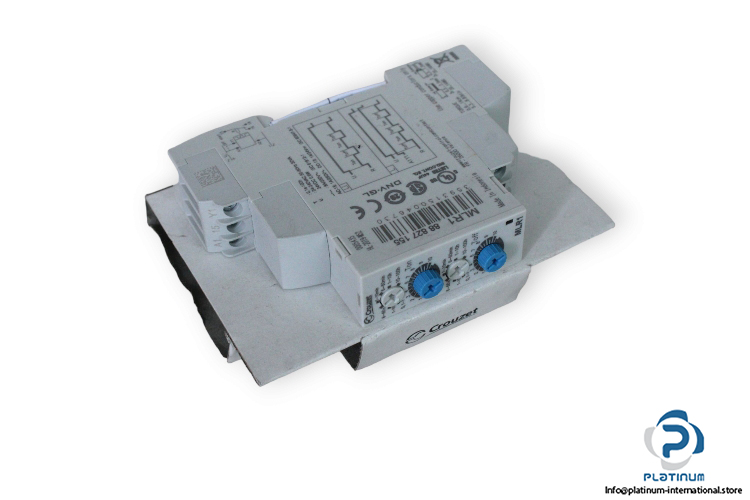

Manufacturer: CROUZET
Type: Timer
Model: MLR1
Part No.: 88827155

Number of outputs, delayed, change-over contact: 1
Number of outputs, delayed, normally closed contact: 1
Number of outputs, delayed, normally open contact: 1
Rated control supply voltage Us at AC 50HZ: 24 – 240 VAC
Rated control supply voltage Us at AC 60HZ : 24 – 240 VAC
Rated control supply voltage Us at DC: 24 VDC
Time range: 0,1 – 100h
Type of electric connection: Screw connection
Voltage type for actuating: AC/DC
Width: 17.5 mm
Depth: 69 mm
Height: 90 mm
