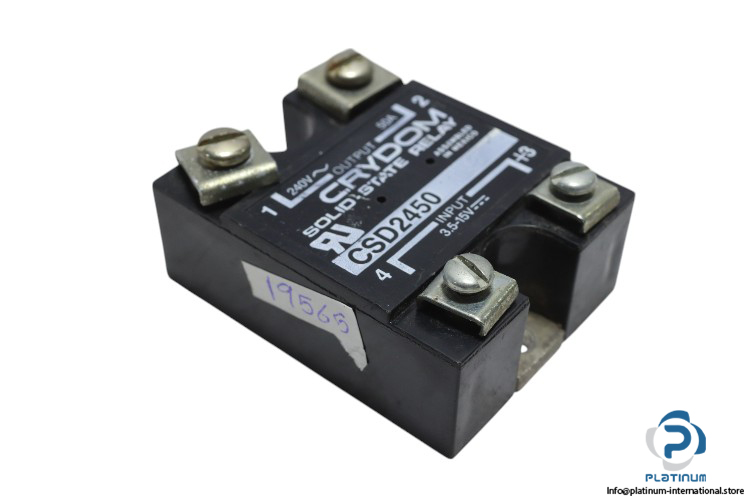

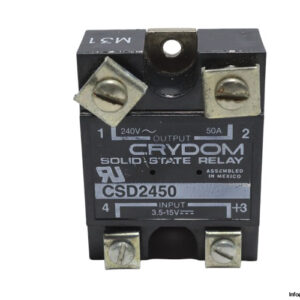

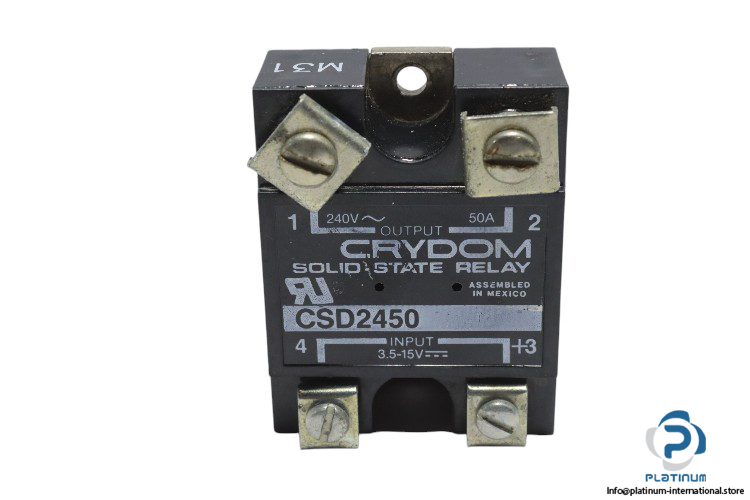

Crydom CSD2450 Solid State Relay
The Crydom CSD2450 Solid State Relay is designed for high-performance applications requiring reliable switching with excellent durability. Offering wide operating voltage and high load current ratings, this SSR provides precise control and is ideal for automation, industrial, and commercial applications.
- Manufacturer: Crydom
- Type: Solid State Relay (SSR)
- Model: CSD2450
- Series: CSD
Technical Information
- Operating Voltage: 24 to 280 V AC
- Control Voltage: 3.5 to 15 VDC
- Load Current Rating: 50 A
- Transient Overvoltage: 600 Vpk
- Max. Surge Current (16.6ms): 597/625 Apk
- Max. On-State Voltage Drop @ Rated Current: 1.6 Vpk
- Thermal Resistance Junction to Case: 0.63 °C/W
- Max. Off-State Leakage Current at Rated Voltage: 1 mA
The Crydom CSD2450 SSR ensures fast, reliable, and durable performance for high-voltage applications, ensuring efficient operation with minimal power loss.
