Manufacturer: C&S

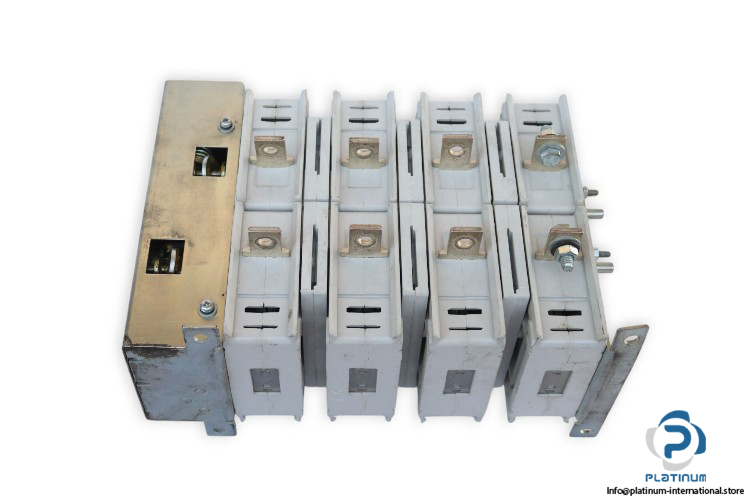

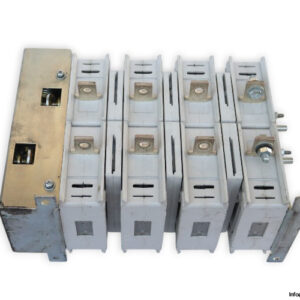

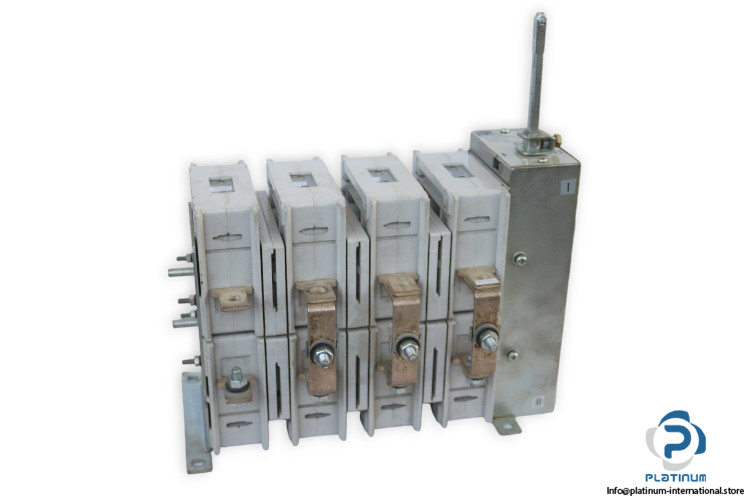

Type: Switch Disconnector

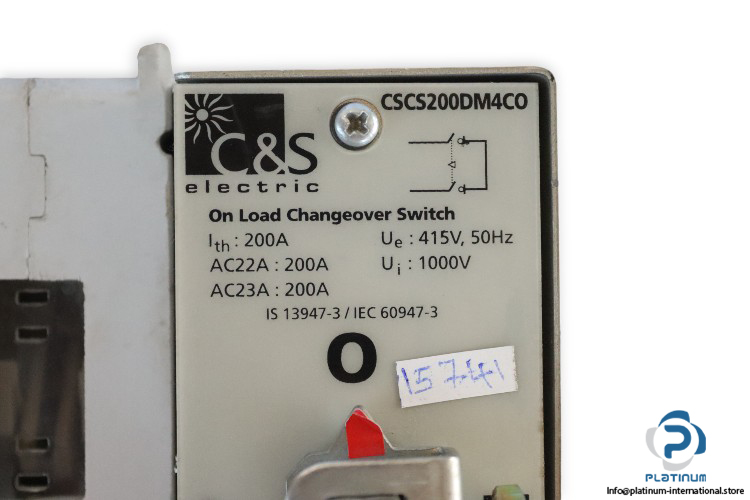

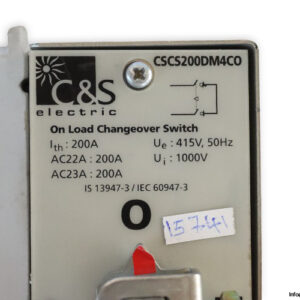

Model: CSCS200DM4CO

Thermal current Ith: 200 A
Rated voltage Ue: 415 V,50 Hz
Insulation voltage Ui: 1000 V
Rated current AC-22A: 200 A
Rated current AC-23A: 200 A
No. of poles: 4
Rated breaking capacity in category AC-23: 1600 A
Rated operational power AC-23: 110 kW
Power loss/ pole: 3.5 W
Operating Torque: 8.2 N.m
Protection degree: IP54
Ambient temperature: 40°C
Standard: IS 13947-3/IEC 60947-3
Dimensions: 310 x 252 x 345 mm
