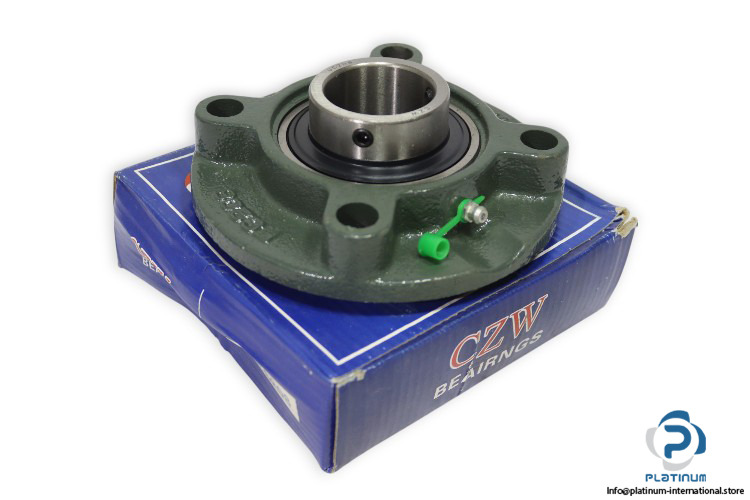

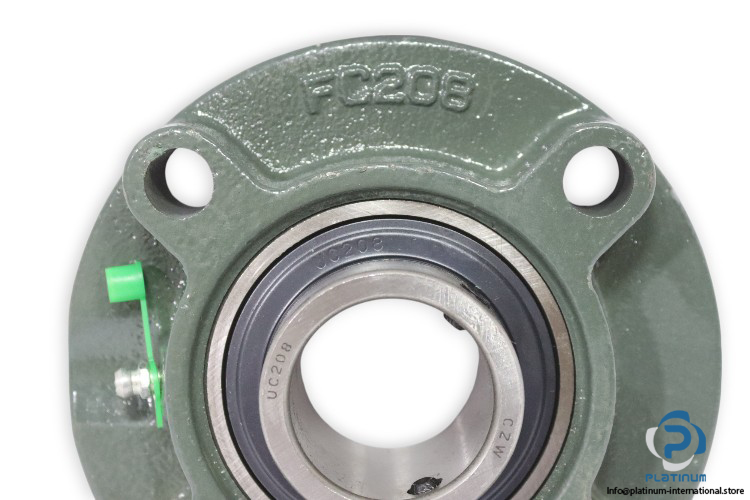

CZW UCFC 208 ROUND FLANGE BALL BEARING UNIT
The CZW UCFC 208 is a robust round flange ball bearing unit designed for durability, accuracy, and easy installation in industrial applications. With high-quality housing and precision bearing support, this unit delivers reliable load handling and smooth performance.
Manufacturer: CZW
Type: Round Flange Ball Bearing Unit
Model: UCFC 208
Bearing Unit: UC 208
Housing Unit: FC 208
Technical Information
- Bore Diameter: 40 mm
- Outside Diameter: 145 mm
- Mounting Holes Distance: 120 mm
- Mounting Hole Dimension: 14 mm
- Width of Inner Ring: 49.2 mm
- Overall Width: 41.2 mm
