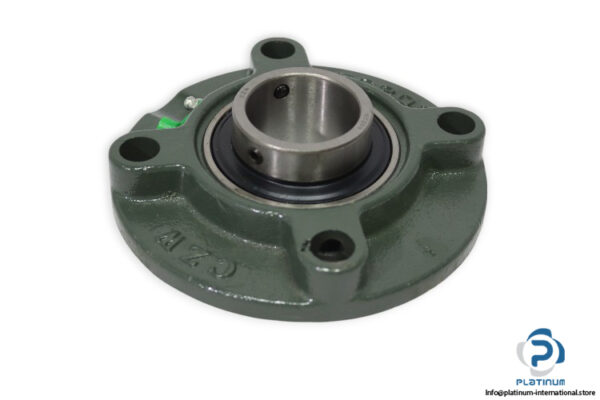

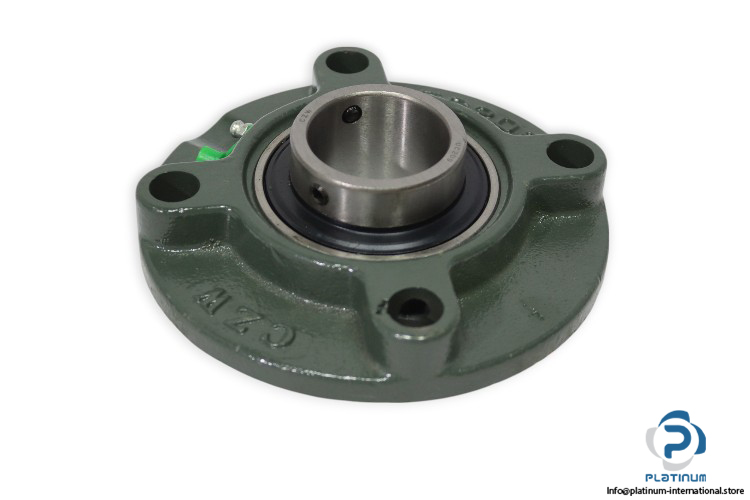

CZW UCFC 209 ROUND FLANGE BALL BEARING UNIT
The CZW UCFC 209 Round Flange Ball Bearing Unit is a robust and durable bearing solution, designed to provide stable mounting and reliable performance in demanding industrial applications. It combines the UC 209 bearing insert with the FC 209 housing for long service life and smooth operation.

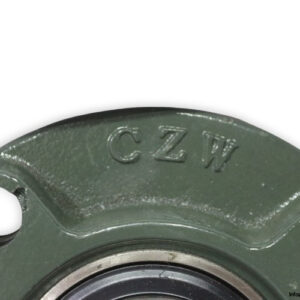

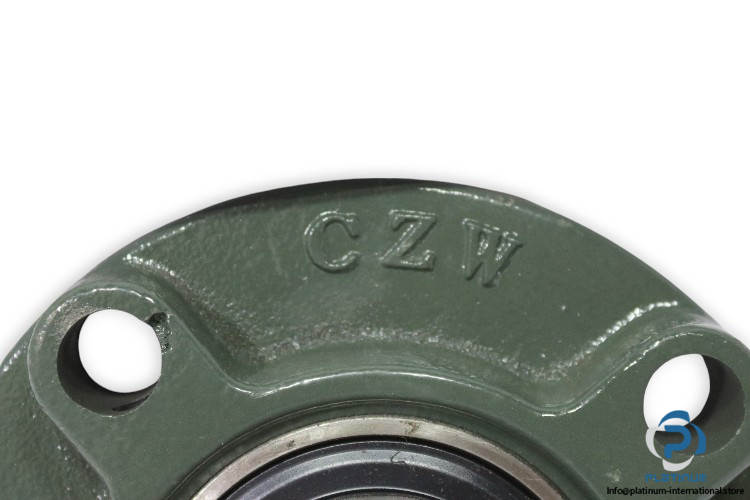

Manufacturer: CZW
Type: Round Flange Ball Bearing Unit
Model: UCFC 209

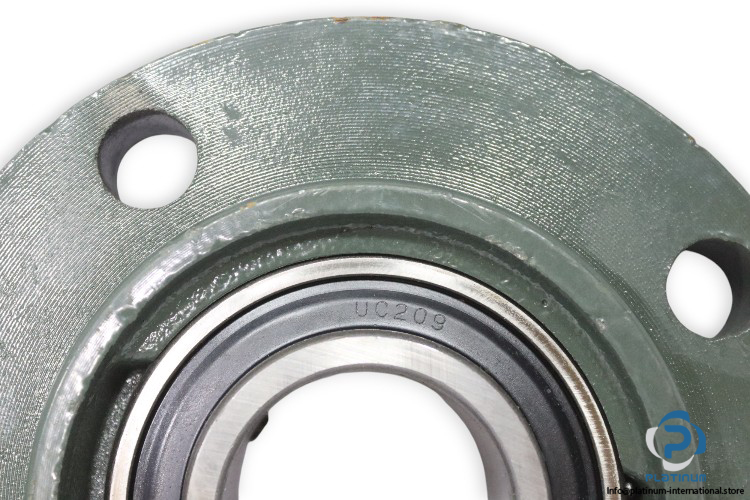

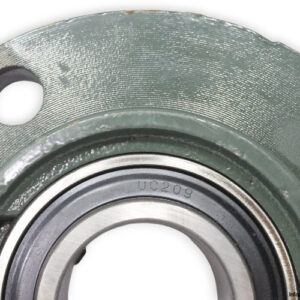

Bearing Unit: UC 209

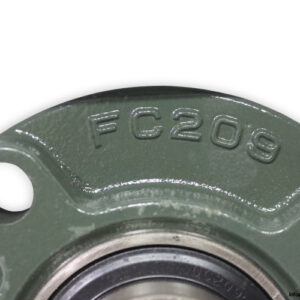

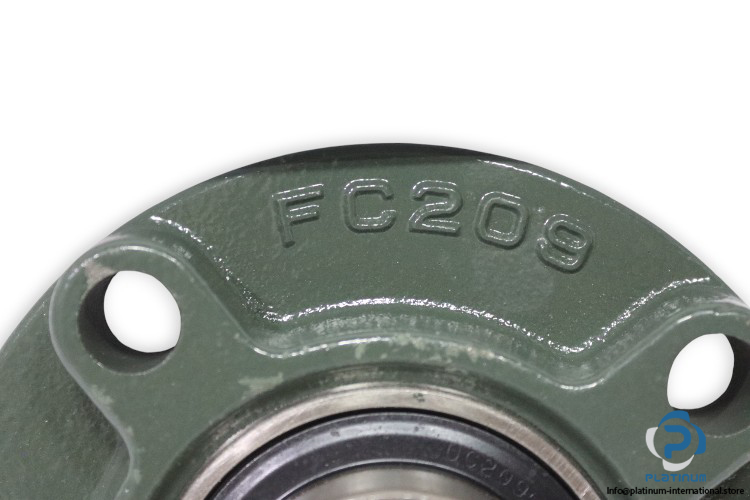

Housing Unit: FC 209
Technical Information
- Bore Diameter: 45 mm
- Outside Diameter: 160 mm
- Mounting Holes Distance: 132 mm
- Mounting Hole Dimension: 16 mm
- Width of Inner Ring: 49.2 mm
- Overall Width: 40.2 mm
