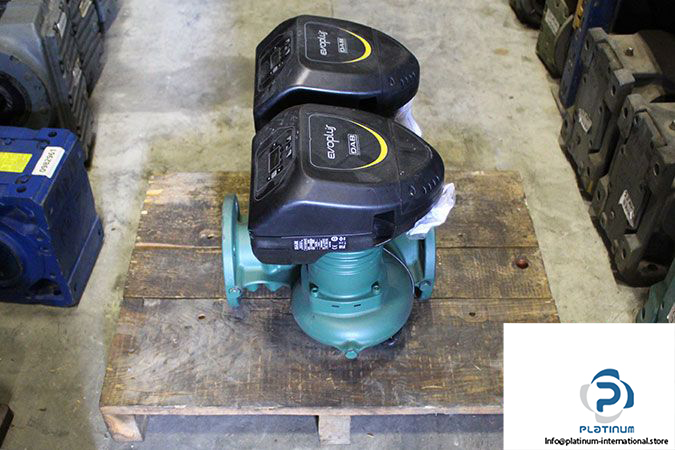

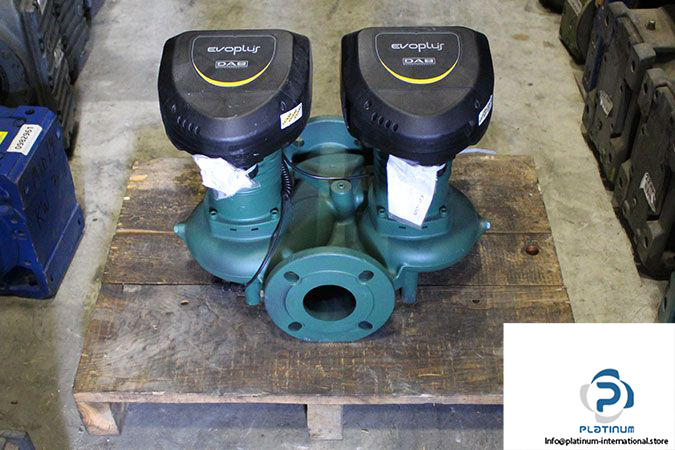

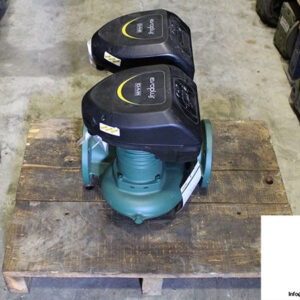

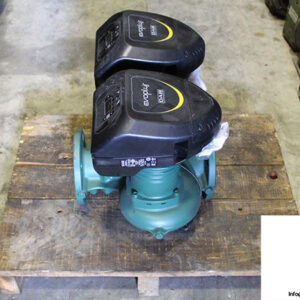

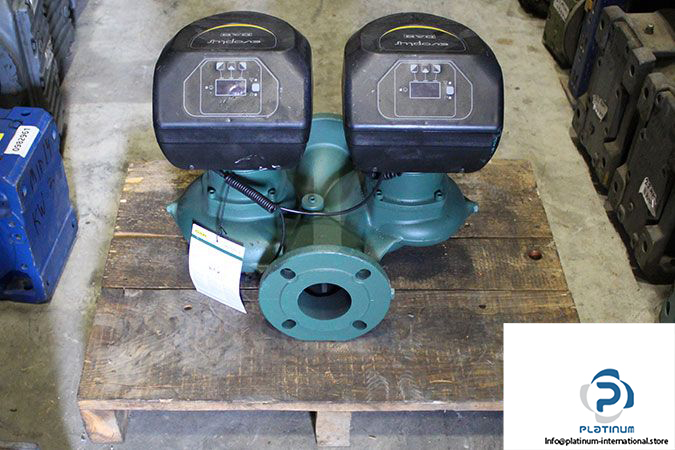

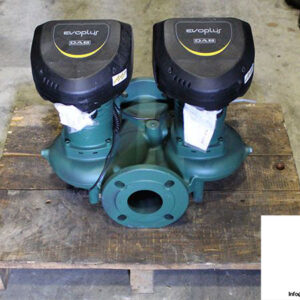

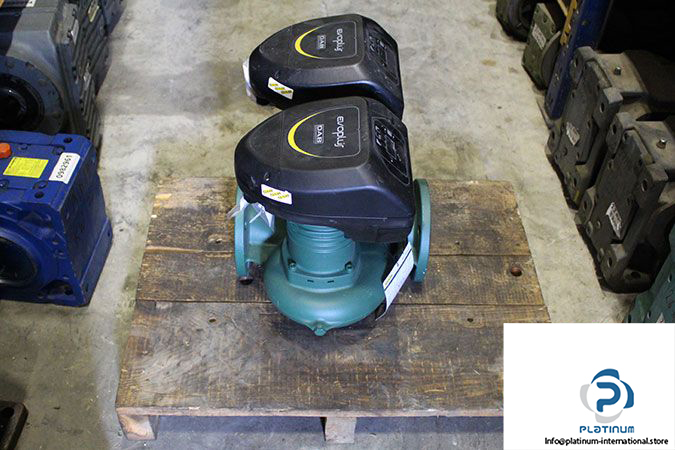

Manufacturer: DAB
Type: Inline Pump

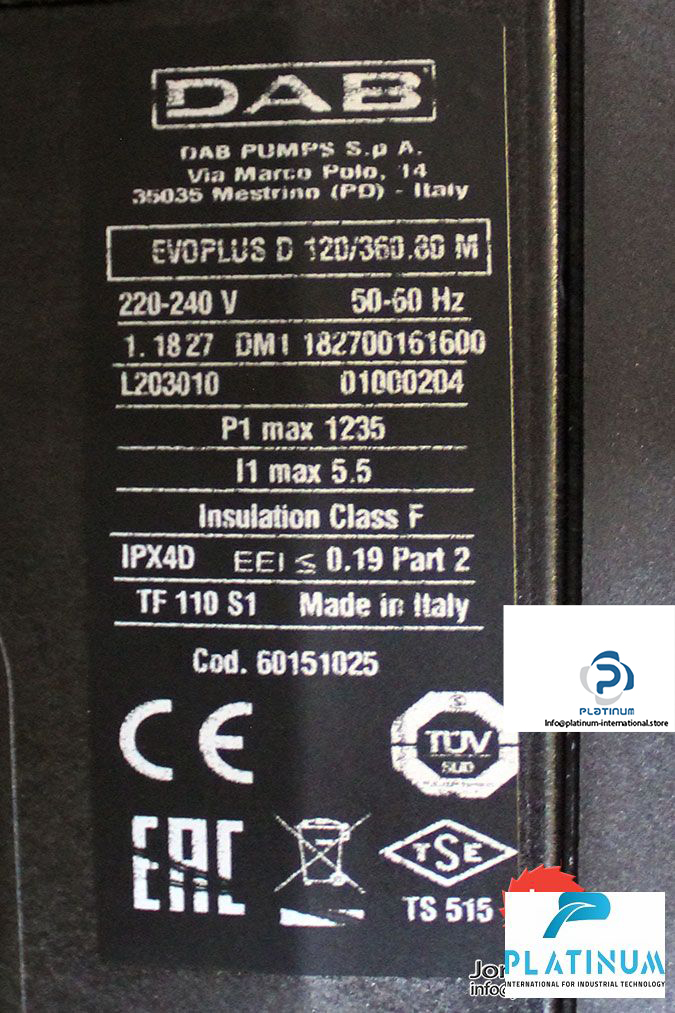

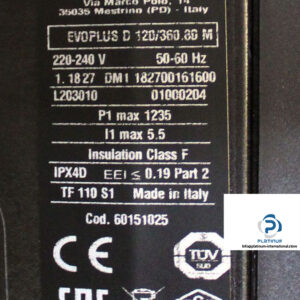

Model: D120/360.80M
Applications:
Large residential buildings
Condominiums and apartment blocks
Homes
Clinics and Hospitals
Schools
Office buildings
Real Estate Assets
Twin Circulator Flange
Maximum Head[m]: 12
Centre Distance[mm]: 360
Maximum Working Pressure[kPa]: 1235
Flow Rate: 3 to 75,6 m3/h
Standard voltage[V]: single-phase 220/240
Maximum Current[A]: 5.5
Rated Frequency[Hz]: 50/60
Nominal Diameter of Flanged Ports[mm]: 80 (8 Holes)
Liquid Temperature Range[°C]: –10…110
Pumped Liquid: Clean, Free of Solid Contaminants and Mineral Oils, Non-Viscous.
Chemically Neutral, Close to The Properties of Water (Max. Glycol Contents 30%).
Protection Class[IP]: 44
Insulation Class: F
Weight[kg]: 47.8
