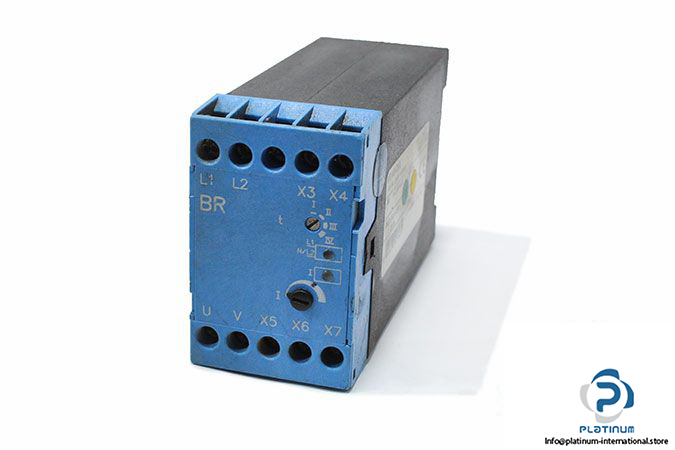

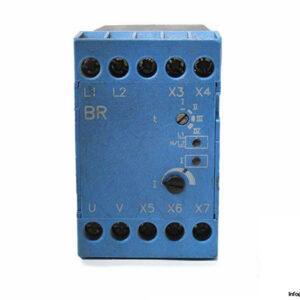

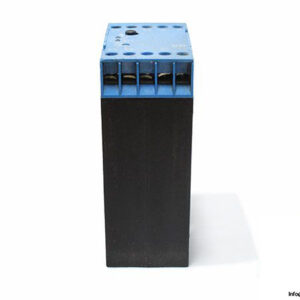

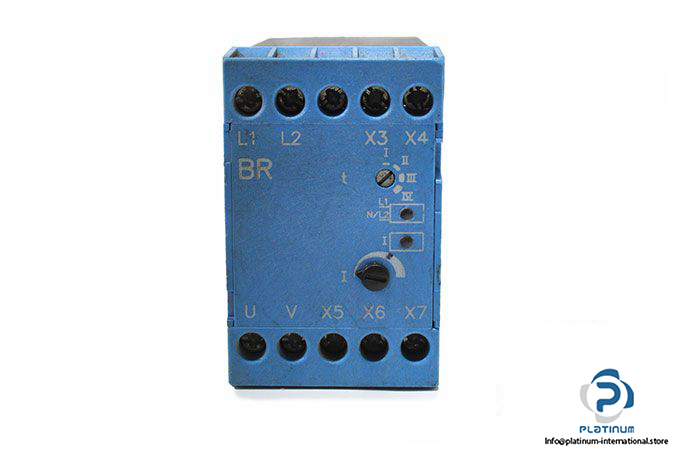

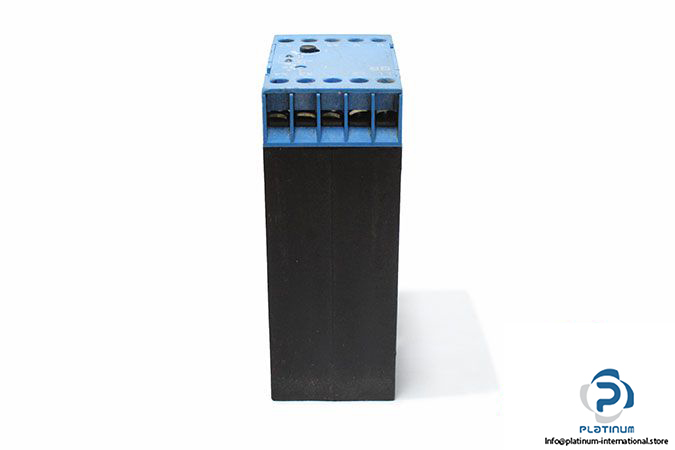

Manufacturer: DAHMS PETER ELECTRONIC

Type: Braking Device

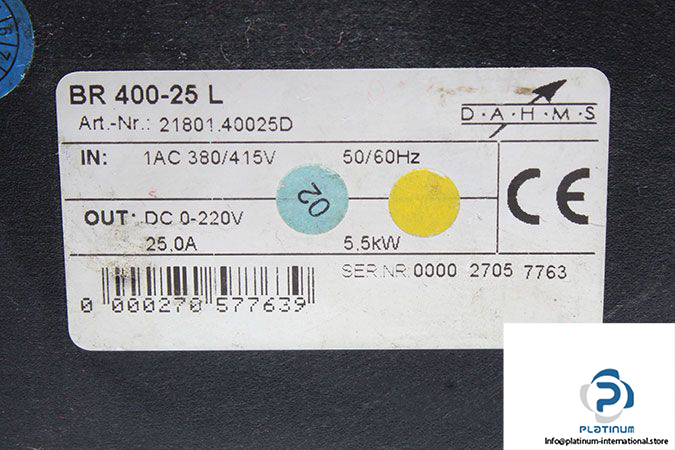

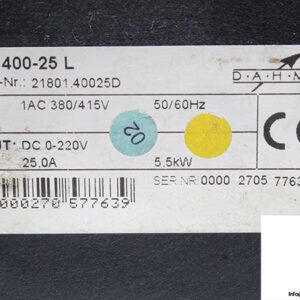

Model: BR 400-25L

Order No.: 21801.40025



Applications: sawing machines, centrifuges, wood working machines, textile machines, conveying systems

Input:

Mains Voltage: Single phase 380/415 VAC

Frequency: 50/60 Hz

Power Draw of the Electronics: 6 VA

Rated Device Current: 25A

Output:

Braking Voltage: 0 … 220 VDC

Back-Up Fuse High-Speed: 25 A

Motor Rating: 5.5 kW

Contact Rating: relay contact for motor contactor = 6A/250V~

Delay Time for Reduction of Residual: 500ms

Max. Braking Frequency at Braking Time 5s: 1/min.

Ambient Temperature: 0 … 45°C

Dimensions: 45 X 122 X 73 mm

Weight: 0.6 Kg
