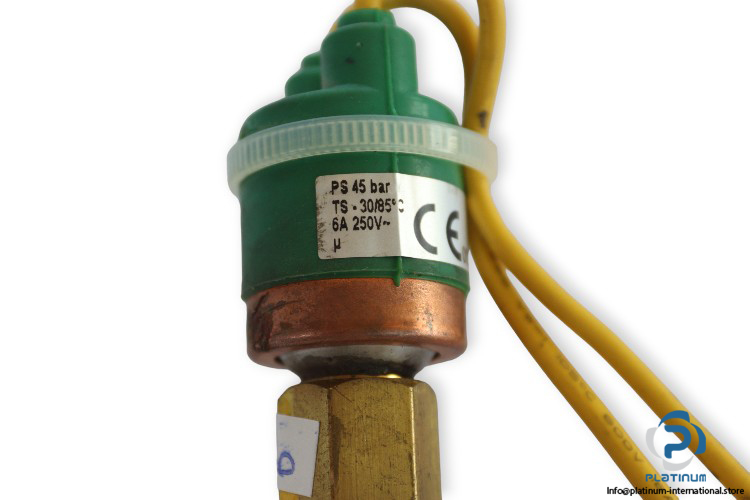

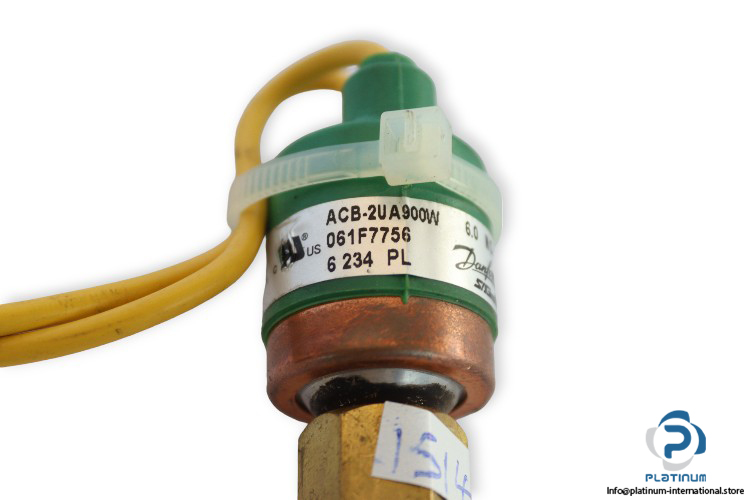

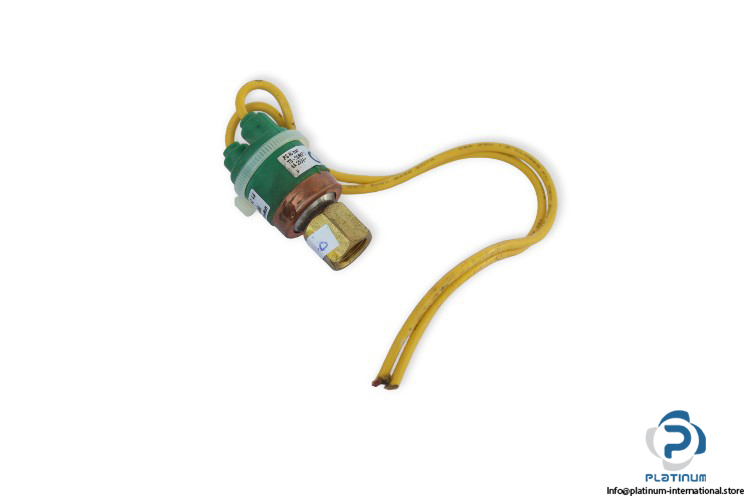

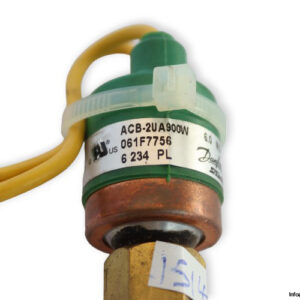

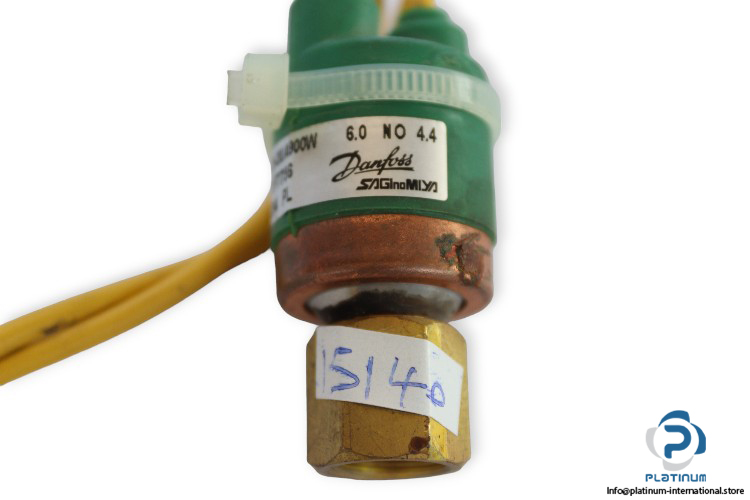

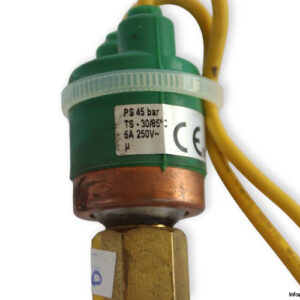

Danfoss 061F7756 Cartridge Pressure Switch

The Danfoss 061F7756 Cartridge Pressure Switch is designed for reliable pressure monitoring in pneumatic systems. With a high burst pressure rating and a wide operating temperature range, it provides durability and performance in demanding environments.

Manufacturer: Danfoss

Type: Cartridge Pressure Switch

Model: 061F7756

Alternative Model: ACB-2UA900W

Technical Information:

• Fluid: Air
• Operating Pressure Max: 45 bar
• Burst Pressure: 200 bar
• Contact: SPST Normally Open (NO)
• Contact Rating: 250 V AC, 6 A
• Pneumatic Connection: G 1/4
• Ambient Temperature: -30 / 85 °C
