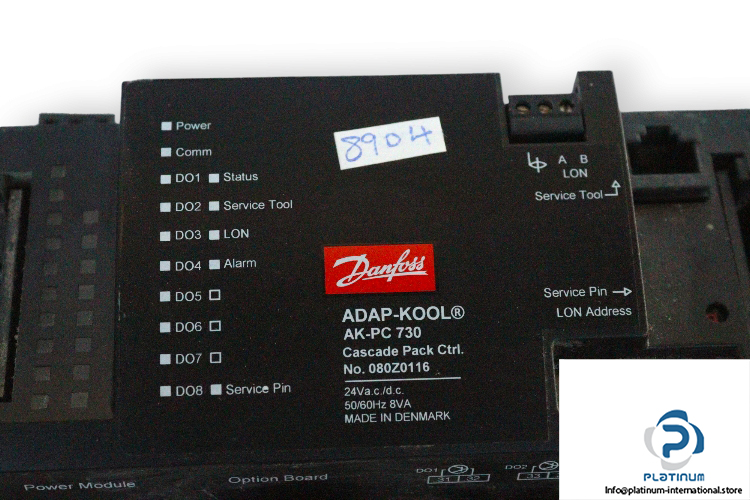

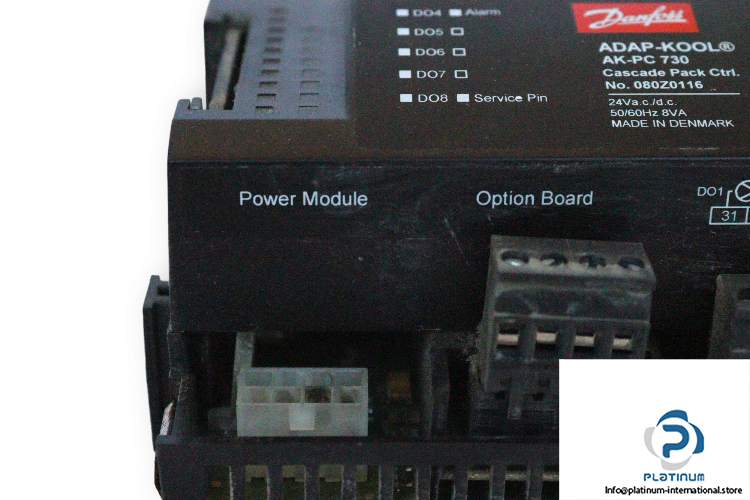

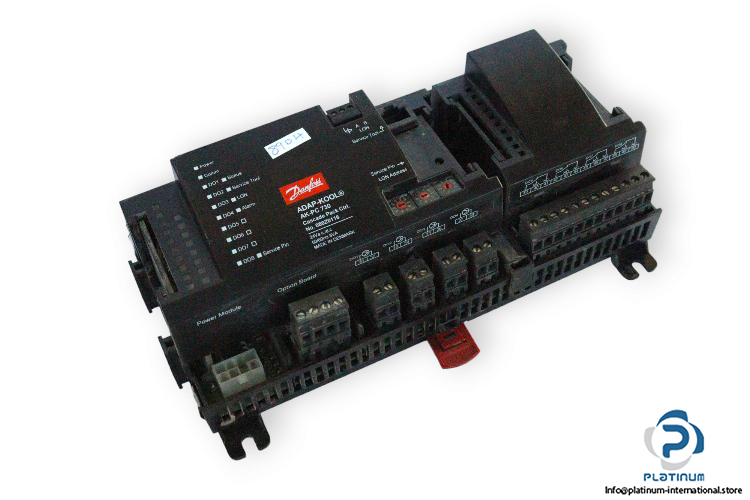

DANFOSS AKPC730 CAPACITY CONTROLLER

The Danfoss AKPC730 is a high-performance controller designed for efficient and intelligent capacity control of compressors and condensers. It supports multi-language interfaces and a wide range of industrial applications, including cascade control systems.

Manufacturer: Danfoss
Type: Capacity Controller
Model: AKPC730
Code No.: 080Z0116

Technical Information

• Function: Controller for capacity control of compressors and condensers
• Application: Compressor / Condenser / Both / Cascade Control
• Languages: English, German, French, Dutch, Italian
• Supply Voltage: 24 V DC/AC
• Power Consumption: 8 VA
• Frequency: 50/60 Hz
• Analog Inputs: Pt 1000 ohm /0°C, Resolution: 0.1°C, Accuracy: +/- 0.5°C
• On/Off Supply Voltage Inputs:
  – Low Voltage: 0 / 80 V AC/DC (Off: U < 2 V, On: U > 10 V)
  – High Voltage: 0 / 260 V AC (Off: U < 24 V, On: U > 80 V)

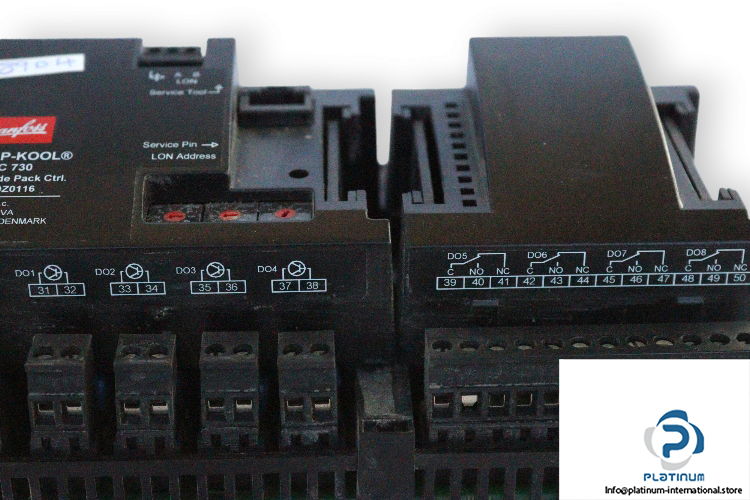

• Relay Outputs SPDT: AC-1 (ohmic) 4 A, AC-15 (inductive) 3 A, U Min. 24 V, Max. 230 V
• Ambient Temperature (Operation): -20 to 55°C
• Enclosure: Material: PC / ABS, Density: IP10, VBG 4
• Mounting: For panel wall or DIN rail
