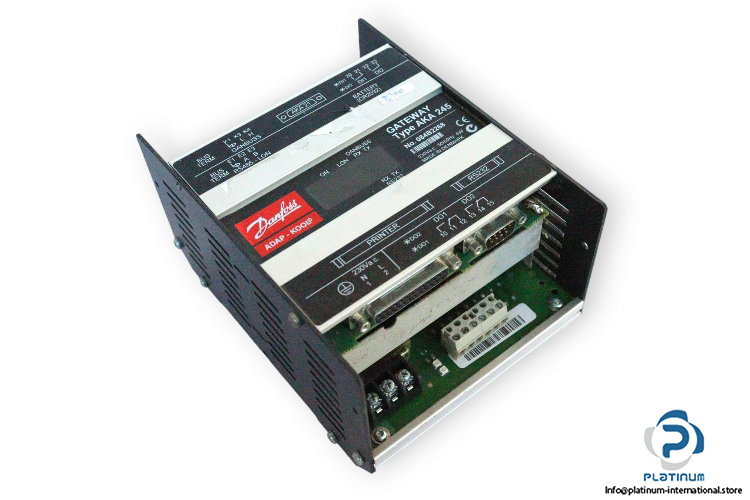

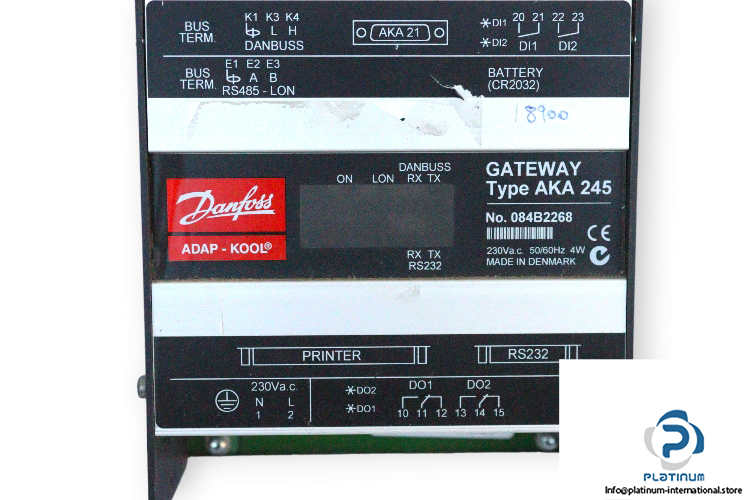

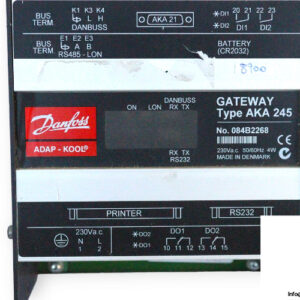

Manufacture: Danfoss
Type: Gateway
Model: AKA245
Code No.: 084B2268

Supply voltage: 230 V AC
Power consumption: 4 VA
Relay outputs: Max. contact load 1 A / 230 V
Digital inputs: Off -cycle voltage: >12 V d.c. Short-circuit current: >15 mA, <50 Ma Changeover level off: < 2 V Changeover level ON: > 6 V
Ambient temperature During operation: 0 … +55°C
Enclosure: IP 00
Mounting: screw brackets/ DIN rail
Dimensions: 155 x 165 x 95 mm
