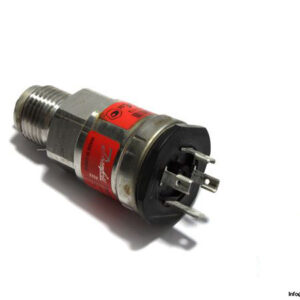

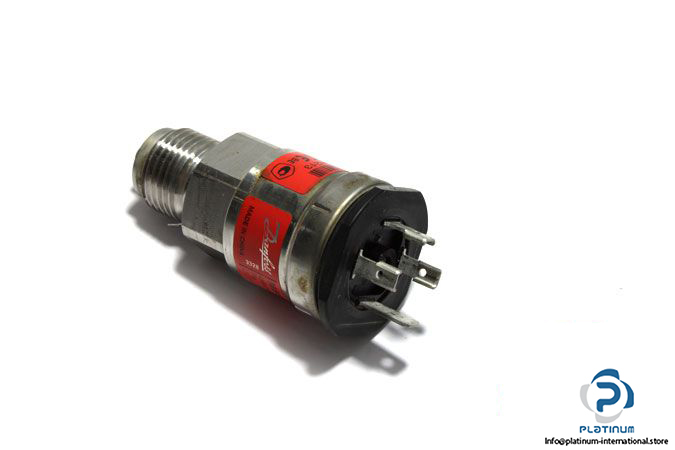

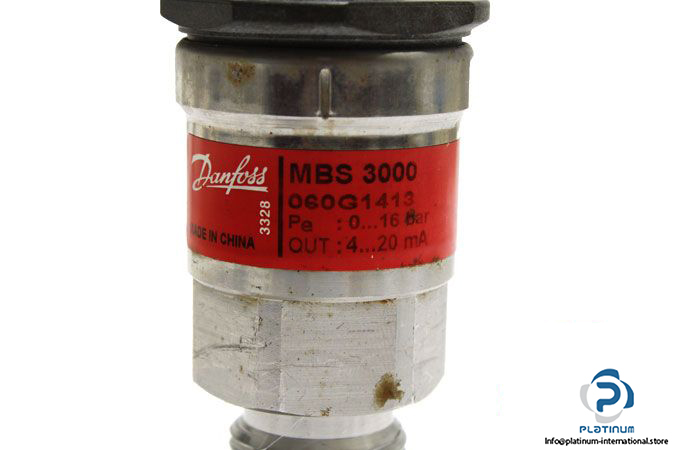

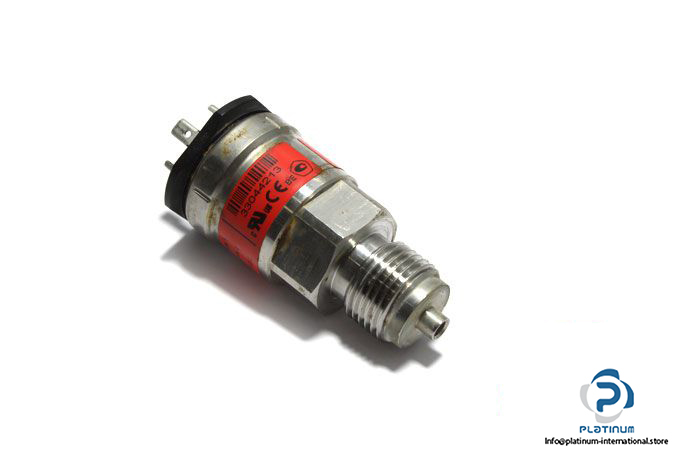

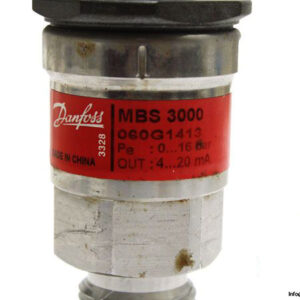

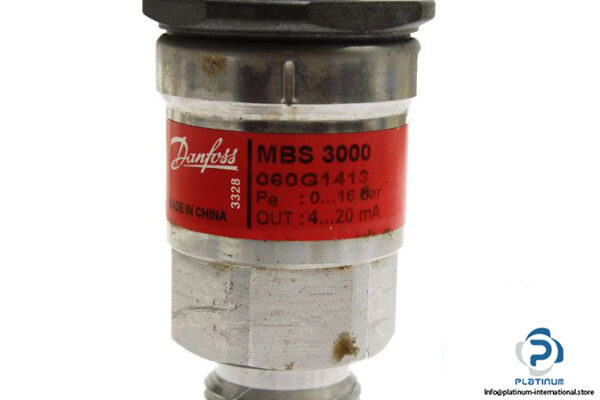

DANFOSS MBS3000 Pressure Transmitter
The DANFOSS MBS3000 Pressure Transmitter provides reliable pressure measurement for hydraulic and severe industrial applications. Designed with an acid-resistant stainless steel enclosure, it ensures durability, resistance to cavitation, and stability under pressure peaks.
Manufacturer: DANFOSS
Type: Pressure Transmitter
Model: MBS3000
MRN: 060G1413
Technical Information
- Pressure Measuring Range: 0 to 16 bar
- Connection: G 1/2 threaded
- Electrical Connection: Plug connection
- Supply Voltage: 10 to 30 V DC
- Current Output: 4 to 20 mA
- Sensor Temperature Range: minus 40 to 85 degree Celsius
- Construction: Acid-resistant stainless steel (AISI 316L)
- Features: Resistant to cavitation, liquid hammer, and pressure peaks
- Application: Designed for severe industrial and hydraulic environments
