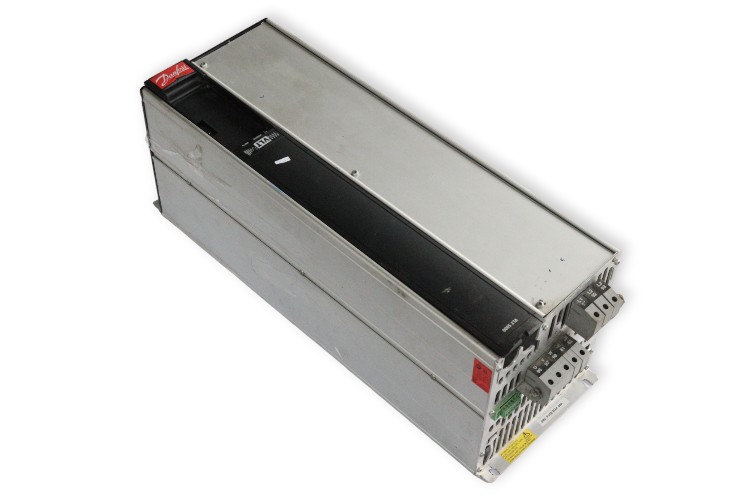

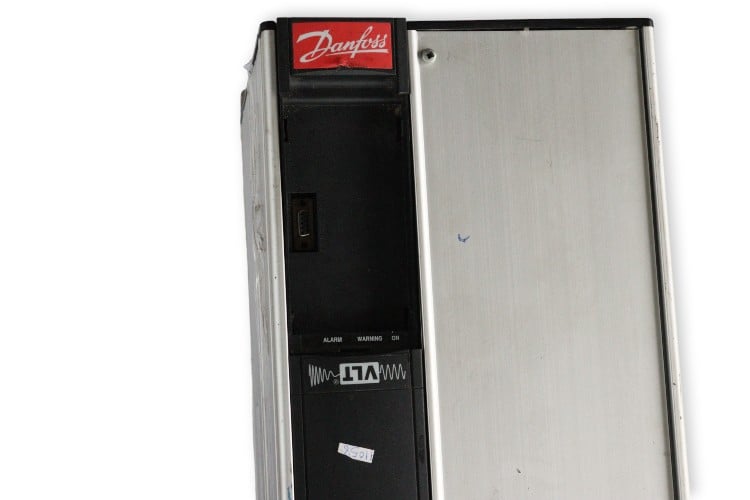

DANFOSS VLT5032PT5C20SBR3D0F00A00C0 FREQUENCY INVERTER

The Danfoss VLT5032PT5C20SBR3D0F00A00C0 is a high-performance frequency inverter engineered for dynamic motor control in industrial applications. Part of the trusted VLT 5000 series, this unit offers robust power handling, wide frequency output, and energy-efficient operation. Built with an IP20 protection rating and a compact design, it’s an ideal choice for precise and scalable motor speed control across various systems.

Manufacturer: Danfoss
Type: Frequency Inverter

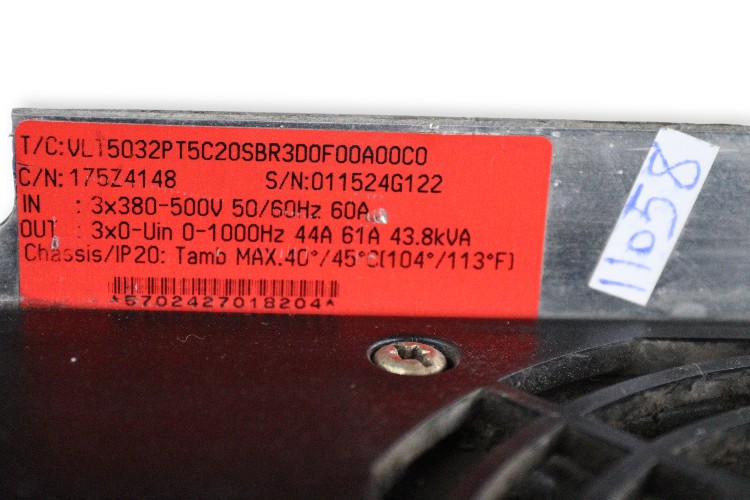

Model: VLT5032PT5C20SBR3D0F00A00C0

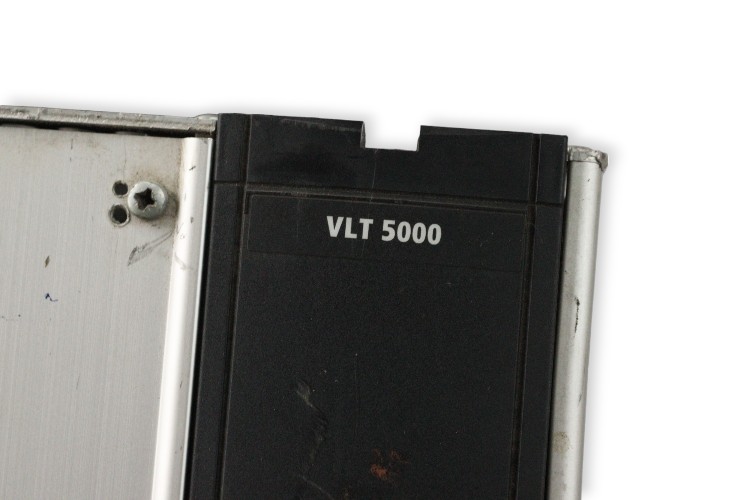

MNR: VLT 5000
Part No.: 175Z4148
Serial No.: 011524G122

Technical Information

• Input Voltage: 3× 380“500V AC
• Input Frequency: 50/60 Hz
• Input Current: 60 A
• Output Voltage: 3× 0“Uin (variable up to input voltage)
• Output Frequency: 0“1000 Hz
• Output Current: 44 A / 61 A
• Output Power: 43.8 KVA
• Protection Rating: IP20
• Ambient Temperature Limit: Max. 40¯°C / 45¯°C
