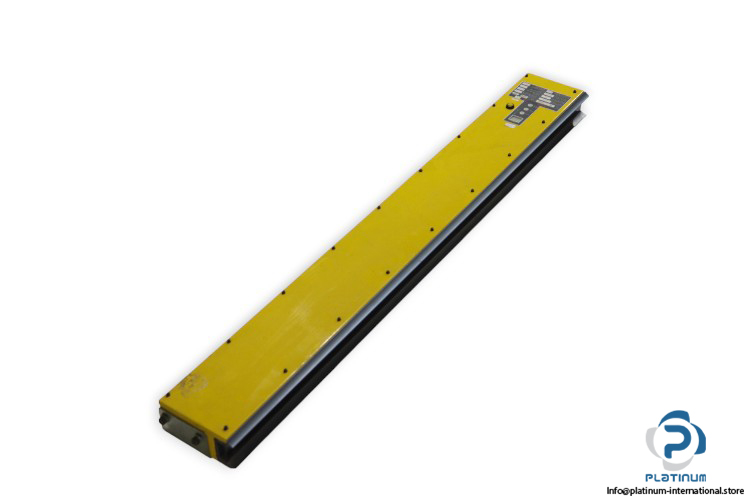

DATA LOGIC SB-1-A1200 LIGHT CURTAIN

The Data Logic SB-1-A1200 is a high-performance safety light curtain designed to protect personnel and equipment in automated environments. With a 1200 mm protected height and fast response time, it offers reliable detection for safety-critical applications. Engineered to operate in a wide temperature range and with robust object sensitivity, it is ideal for use in manufacturing lines, robotic systems, and machine guarding.

Manufacturer: DATA LOGIC
Type: Light Curtain
Model: SB-1-A1200
Serial No.: 02/2400

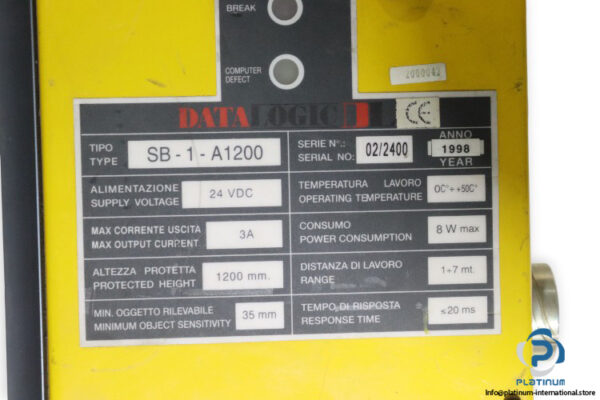

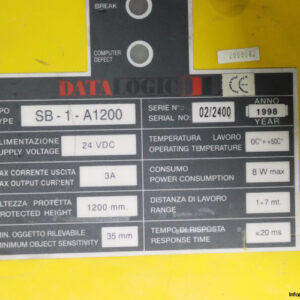

Technical Information

• Supply Voltage: 24 VDC
• Max Output Current: 3 A
• Power Consumption: 8 W max
• Protected Height: 1200 mm
• Minimum Object Sensitivity: 35 mm
• Operating Temperature Range: 0°C to +50°C
• Sensing Range: 1 to 7 m
• Response Time: ‰¤ 20 ms
