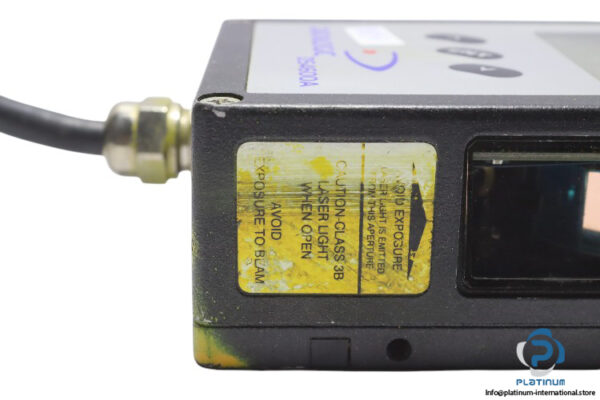

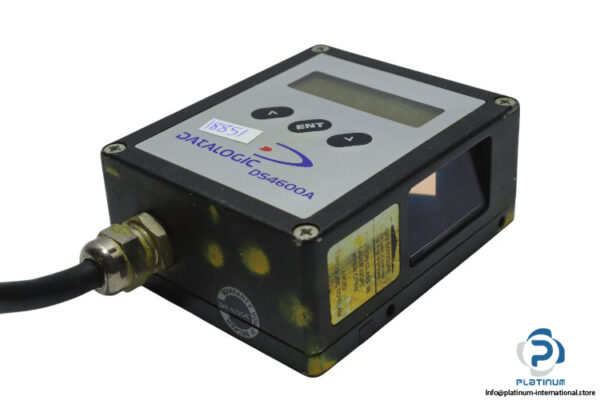

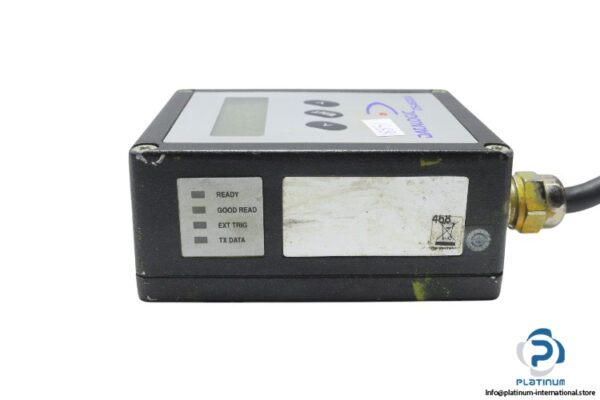

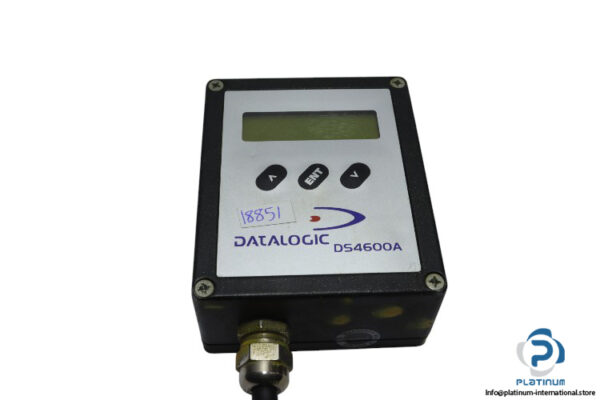

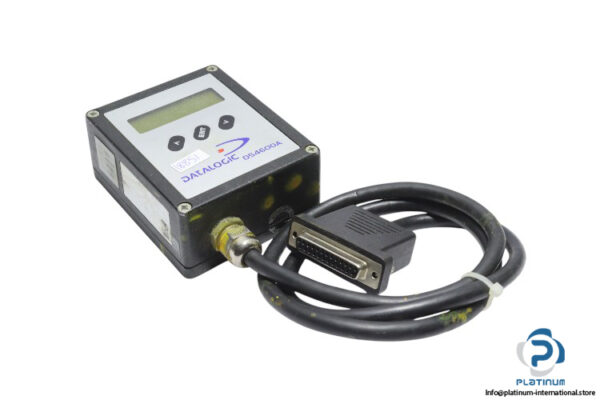

Datalogic DS4600A Barcode Scanner
The Datalogic DS4600A Barcode Scanner is a high-performance scanning solution designed for industrial applications. With a reading distance of up to 1,000 mm, an 800 scan/s rate, and multiple serial interfaces, this scanner ensures fast and accurate barcode reading.
- Manufacturer: Datalogic
- Type: Barcode Scanner
- Model: DS4600A
Technical Information
- Reading Distance: Up to 1,000 mm
- Operating Voltage: 10 to 30 V DC
- Scan Rate: 800 scan/s
- Input Signal: ˜Presence Sensor™ plus 2 programmable inputs (Optocoupled NPN/PNP transistor)
- Serial Interfaces: One RS232, one SW programmable RS232 / RS485 Multidrop
- Aperture Angle: 60 degrees
- Connection: 25-pin D-sub Connector
- Protection Class: IP65
- Dimensions: 101 x 83.5 x 42 mm
- Operating Temperature: 0 to 40°C
