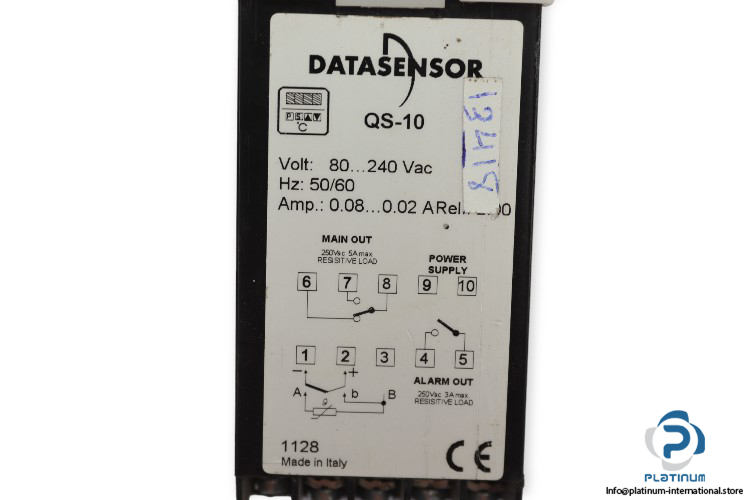

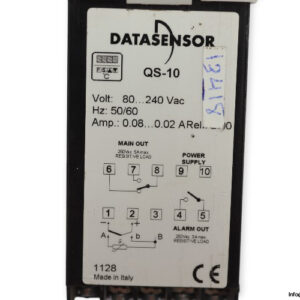

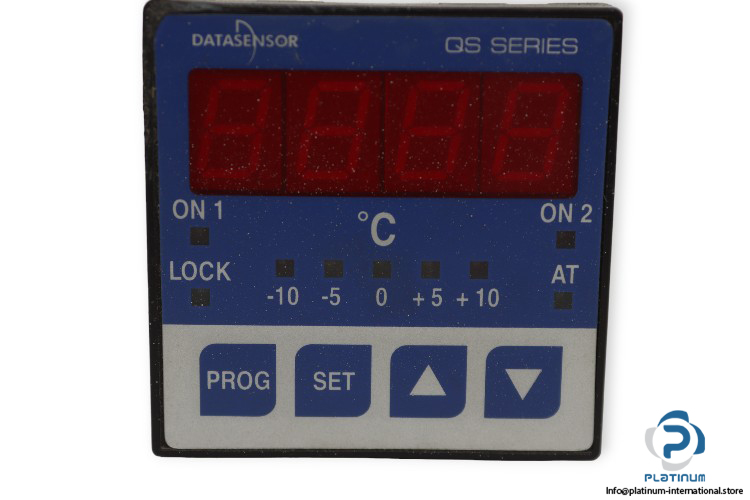

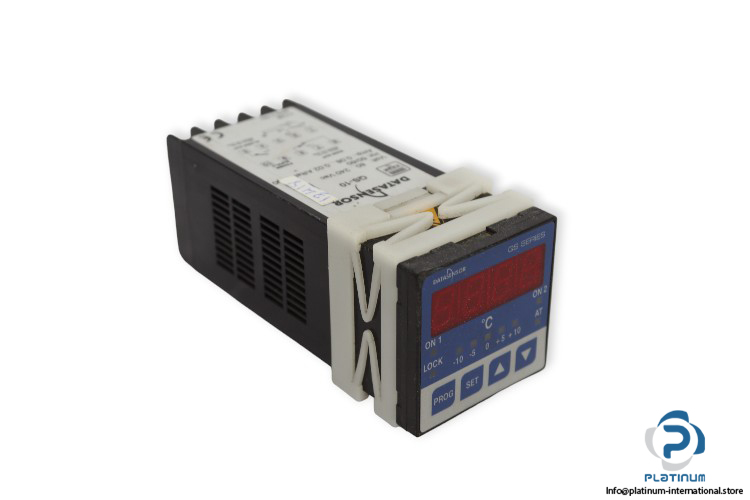

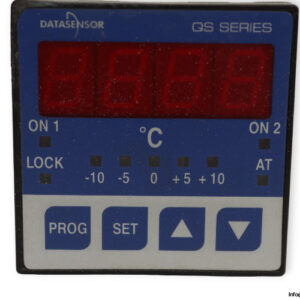

Manufacturer: DATASENSOR
Type: Temperature Controller
Model: QS10
Part No.: 1128

Sensor Input: Selectable Between (E, J, K, L, R, S, T) Thermocouples and PT100„¦/0°C RTDs
Measurement Precision: RTD ± 0.3% Fs, TC ± 0.4% Fs, ±1 Digit; (TC-R, TC-S ± 1% FS From 0 To 200°C) Temperature Drift 0.01% Fs/°C Of Tamb.
Supply Voltage: 80 … 240 V AC
Rated Current: 0.08 … 0.02 A
Power Consumption: 5 VA
Output Points:
– Relay SPDT, Changeover Contact (CO), 250 V AC, 5 A On Resistive Load; Or Transistor Version with 12 V DC 20 mA
– Relay SPST, Normally Open (NO), 250 V AC, 3 A On Resistive Load
Material: ABS
Protection Class: IP20
Temperature: -10 … 55 °C
Dimensions: 48 x 48 x 118 mm
