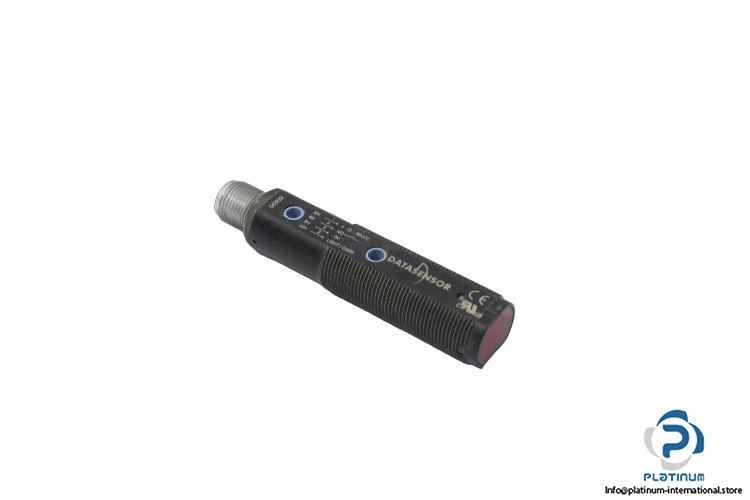

Manufacturer: DATASENSOR DATALOGIC
Type: Photoelectric Polarised Retro-Reflective Sensor
Model: S51-PA-5-B01-PK
Order No.: 952701271

Operating distance: 0.1 … 3 m
Response time: 1 ms
Switching frequency max.: 500 Hz
Operating Voltage: 10 … 30 V DC
Current Consumption max.: 35 mA
Electrical design: PNP
Switching output: Dark/light selectable
Type of light: Red LED 650 nm
Adjustment: Potentiometer
Connector type: M12 Connector, 4 -pin
Protection class: II
Enclosure rating: IP67
Ambient Operating temperature: –25 … 55°C
Diameter, housing length: 18, 81 mm
Housing: Threaded type
Housing material: PBT
Lens material: PMMA
