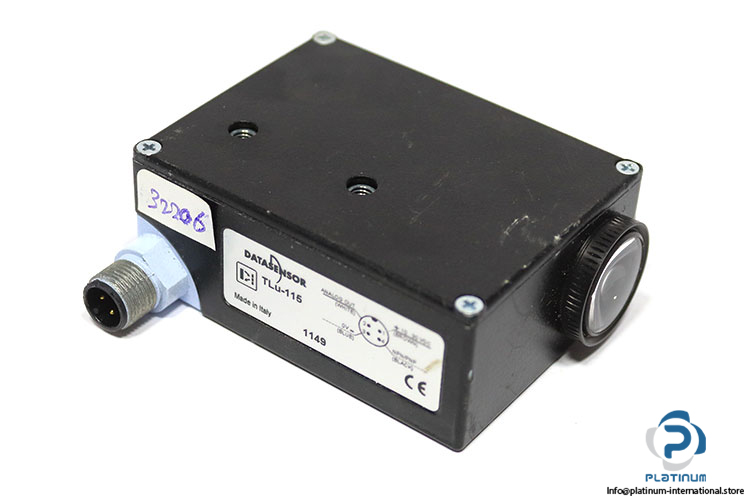

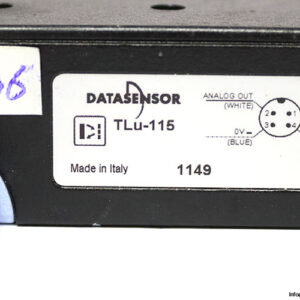

DATASENSOR TLU-115 Contrast Sensor
The DATASENSOR TLU-115 Contrast Sensor is a high-speed and highly accurate optical sensor designed for detecting color or contrast differences in advanced automation systems. It provides fast switching, precise detection, and reliable performance in packaging, printing, and labeling applications.
Manufacturer: DATASENSOR
Type: Contrast Sensor
Model: TLU-115
Code: 1149
Series: TLU
Technical Information
- Power Supply: 10 to 30 VDC
- Output: NPN and PNP

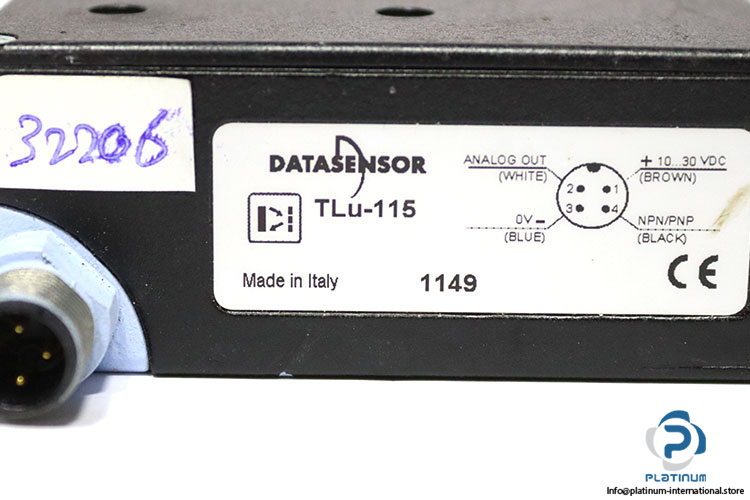

- Connector Type: M12 4 pin male
- Response Time: 50 microseconds max or 25 microseconds max
- Switching Frequency: 10 kilohertz max or 20 kilohertz max
- Timing Function: 20 milliseconds minimum

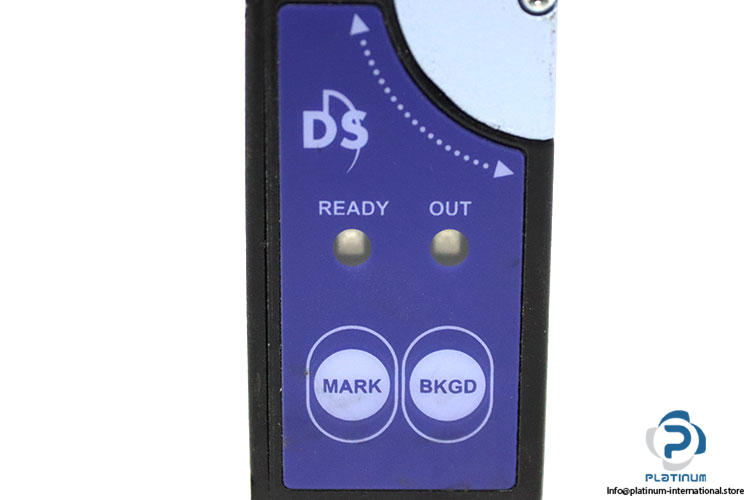

- Output ON Indicators: Output LED red, Ready LED green
- Setting: By pushbuttons or by wires, 4 storage settings
- Retention Data: Non volatile EEPROM memory
- Operating Temperature: minus 10 to 55 degree Celsius
- Electric Shock Protection: Class 1
- Operating Distance: 9 millimeters or 18 millimeters
- Minimum Spot Dimension: 1.5 by 5 millimeters or 2 by 7 millimeters or 3 millimeter diameter
- Depth of Field: plus or minus 3 millimeters or plus or minus 4 millimeters
- Emission Type: Green 526 nanometers, Red 630 nanometers with automatic selection, or White 400 to 700 nanometers
- Ambient Light Rejection: According to EN 60947-5-2
