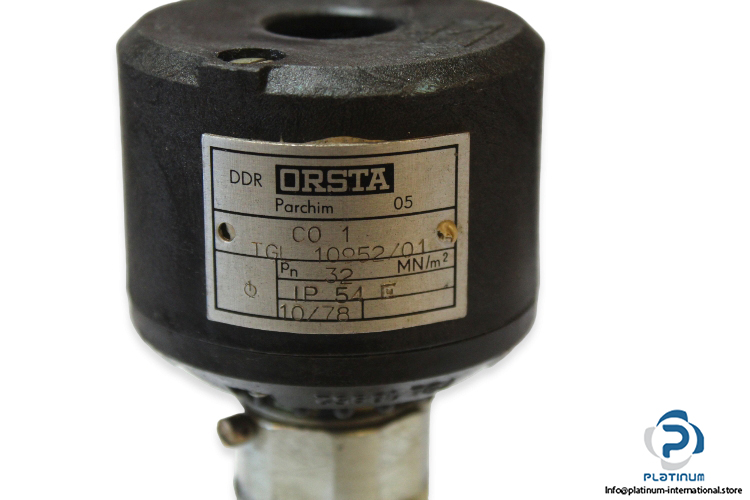

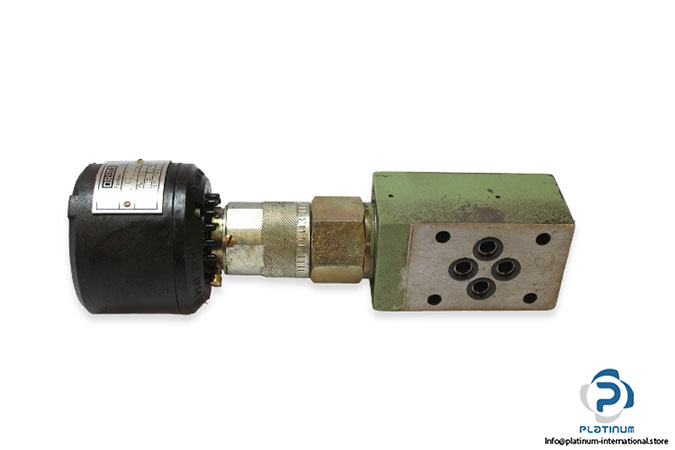

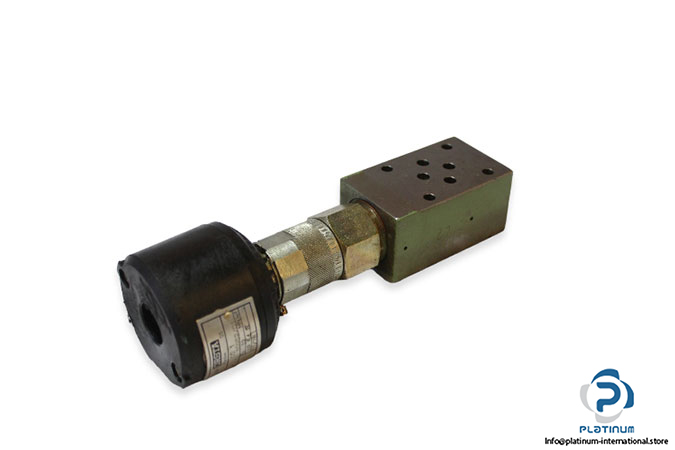

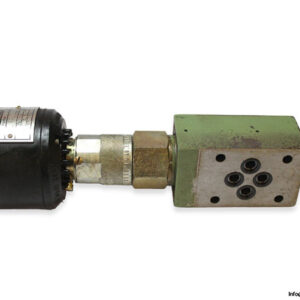

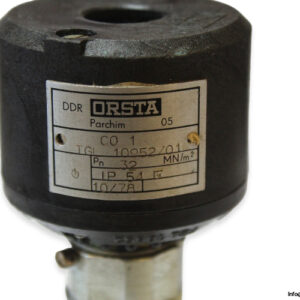

DDR ORSTA TGL10952/01 PRESSURE SWITCH

This industrial pressure switch by DDR Orsta is engineered for high-pressure monitoring in hydraulic systems. With a wide measuring range up to 32 MPa and robust G ¾ threaded connection, it ensures precise pressure control in demanding environments. The device supports up to 250 V AC and is IP54 rated for dependable field performance.

Manufacturer: DDR Orsta
Type: Pressure Switch
Model: TGL10952/01
Code: 10/37, CO1

Technical Information

• Pressure Measuring Range: 4 to 32 MPa
• Max. Pressure: 32 MN/m²
• Connection: G ¾, Threaded
• Electrical Connection: 17 mm Cable Entry
• Supply Voltage: 250 V AC
• Fluid Temperature Range: -25 to 60 °C
• IP Rate: IP54
