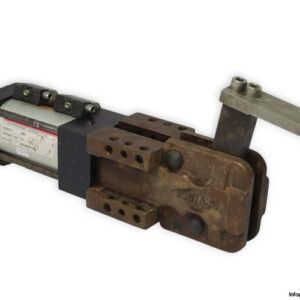

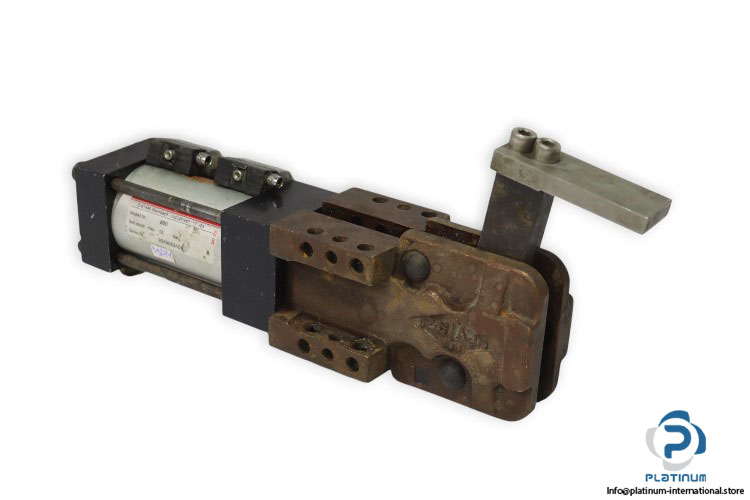

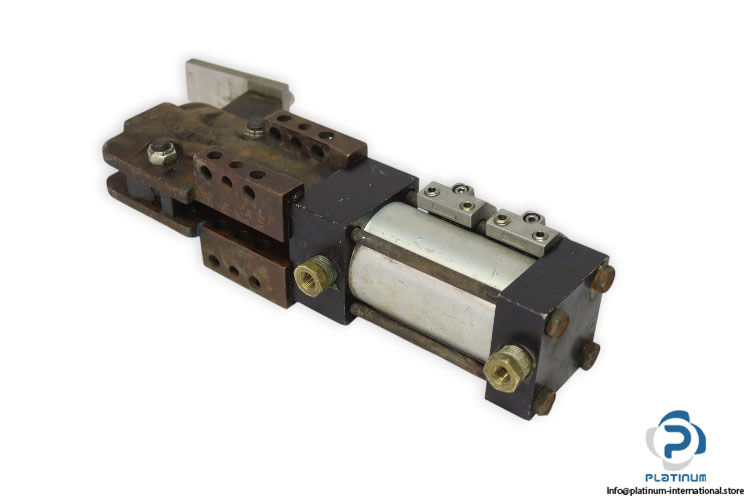

DE.STA.CO / DESTACO Pneumatic Heavy-Duty Action Clamp 860

The DE.STA.CO / DESTACO 860 is a pneumatic heavy-duty action clamp with a vertical clamp arm, designed for secure and reliable clamping in demanding industrial applications. Built with a robust 50.8 mm cylinder bore and a maximum holding torque of 380 Nm, it delivers consistent performance under high-pressure operation. Equipped with a FESTO SMEO-1-S-LED-24 B proximity sensor for precise position detection.

Manufacturer: DE.STA.CO / DESTACO
Type: Pneumatic Heavy-Duty Action Clamp / Cylinder with Vertical Clamp Arm
Model: 860

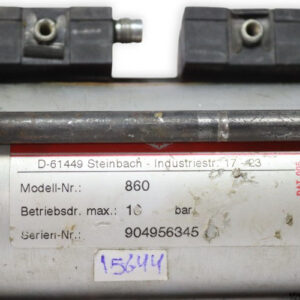

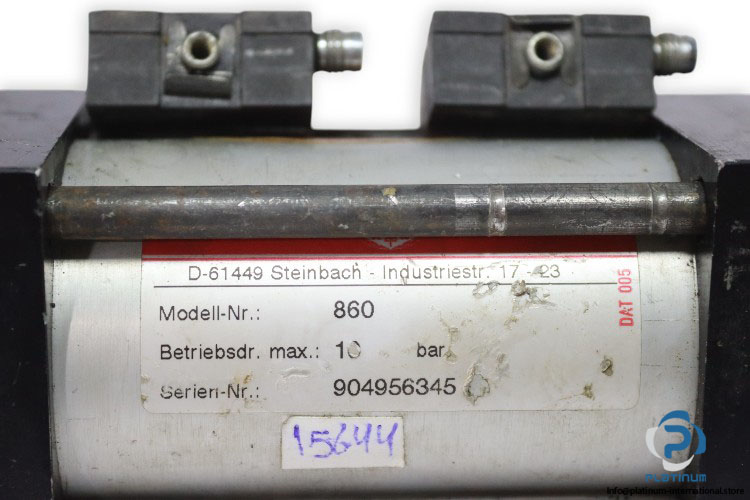

Serial No.: 904956345

Technical Information

• Cylinder Bore: 50.8 mm
• Clamp Arm Length: 138 mm
• Holding Torque (Max): 380 Nm
• Pressure: 10 bar max.
• Connection: G3/8

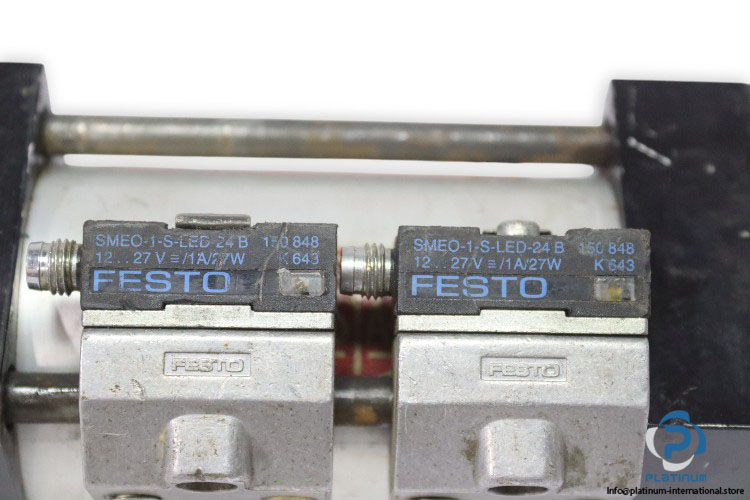

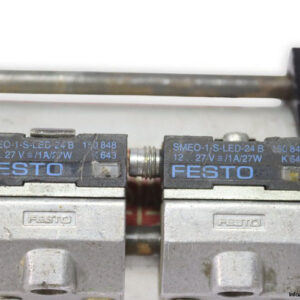

Proximity Sensor (Included)

• Manufacturer: Festo
• Type: Proximity Sensor
• Model: SMEO-1-S-LED-24 B
• Part No.: 150 848
• Ref. Code: K643
• Voltage: 12 to 27 V AC/DC
• Current: 1 A
• Max. Switching Capacity: 27 W
• Switching Output: Contacting, bipolar
• Switching Element Function: N/O contact
• Electrical Connection: M8x1
