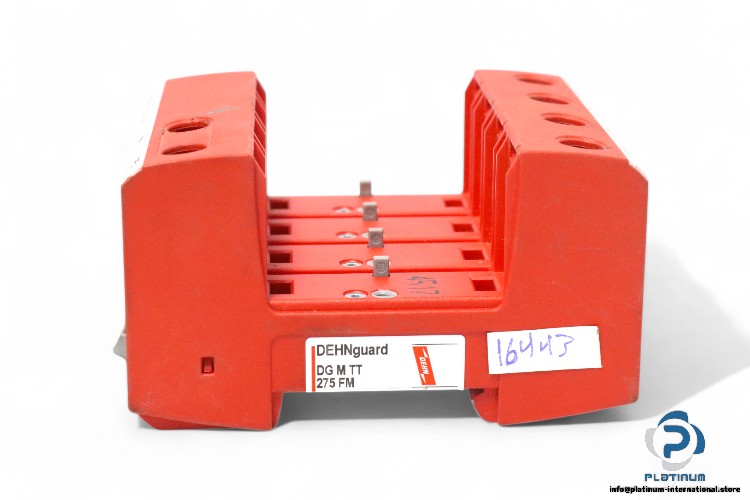

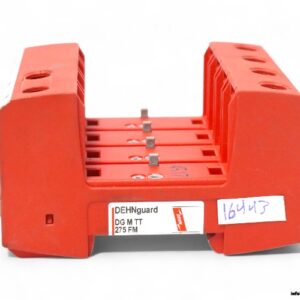

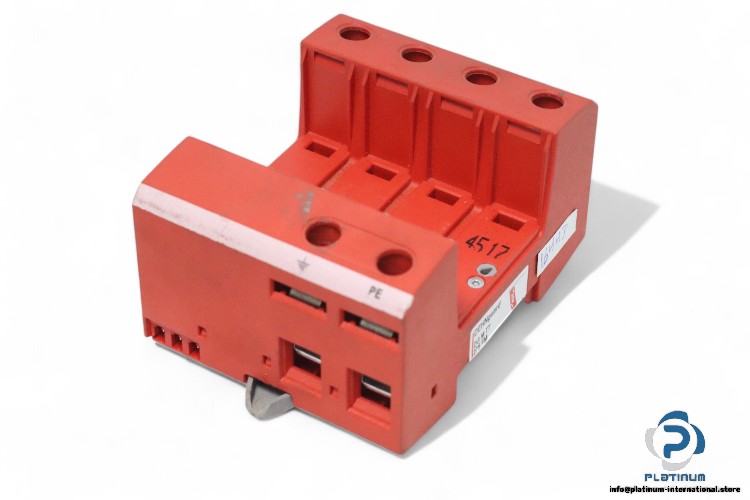

Manufacturer: DEHNGUARD
Type: SURGE ARRESTER
Model: DGMTT275FM
Part no.: 952315

For mounting on: 35 mm DIN rails acc. to EN 60715
SPD according to EN 61643-11 / IEC 61643-11: type 2 / class II
Nominal voltage (a.c.) (UN): 230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (UC):
275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (In): 20 KA
Max. discharge current (8/20 µs) (Imax): 40 Ka
Operating temperature range (TU): -40 … +80 °C
Number of ports: 1
Enclosure material: thermoplastic, red, UL 94 V-0
Degree of protection: IP 20
Nominal frequency AC: 16.7 Hz
Dimension: 90X72X66 mm
