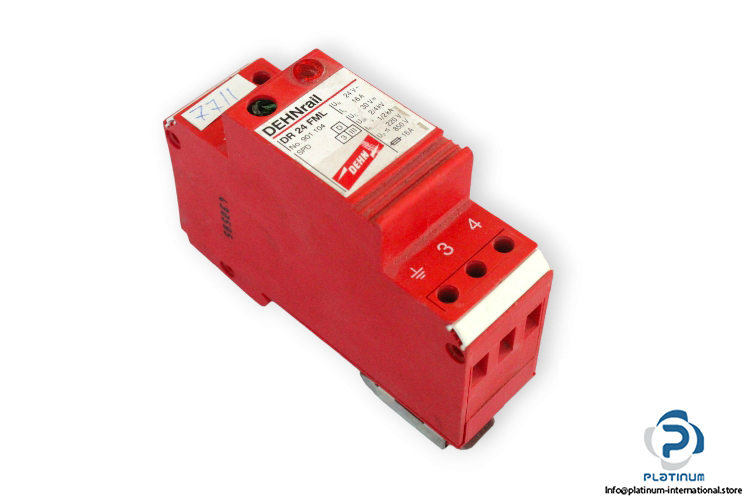

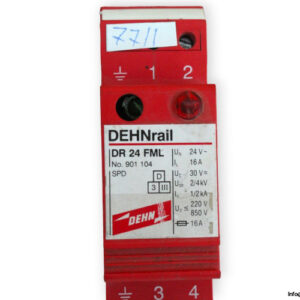

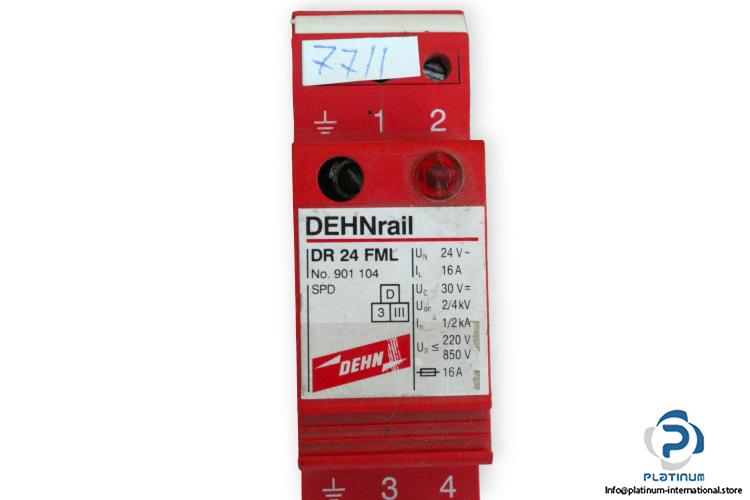

Manufacturer: Dehnrail
Type: Surge Arrester
Model: DR24FML
Part No: 901104
Nominal Voltage: 24 V AC
Nominal Load Current Il: 16 A
Max Continuous Voltage: 30 V AC/DC
Combined Impulse UoC: 2/4 kV
Nominal Discharge Current: 1 / 2 kA
Voltage Protection Level: 220 V / 850 V
Max. overcurrent Protection: 16 A
Switching Contact: 250 V AC / 0.5 A
Operating Temperature: -40 … 80 °C
Degree of protection: IP20
Dimensions: 90 X 27 X 58 mm
