Manufacturer: Delta Electronics
Type: Axial Fan
Model: AFB1212VH
Frame Shape: Square Frame
No. of Blades: 7

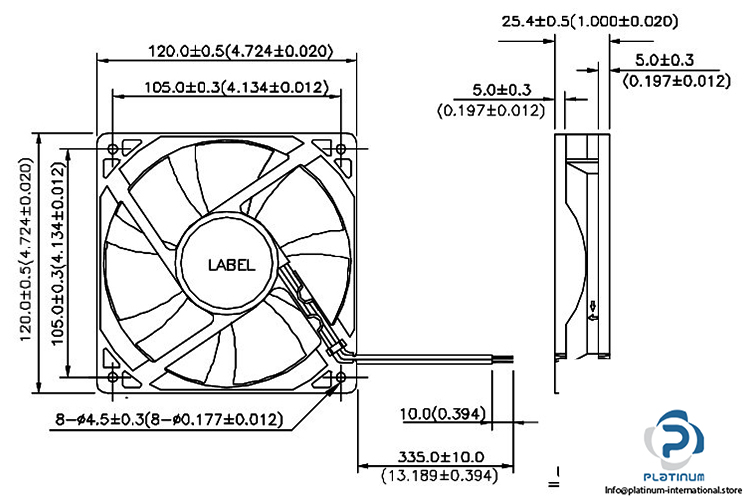

Dimensions (mm): 120x120x25
Direction: Push
Voltages (V DC): 12
Power Rating (W): 4.8
Speed (rpm): 3100

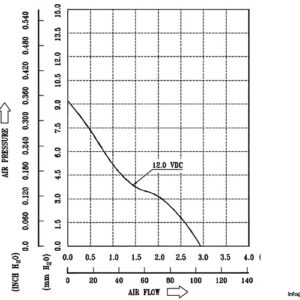

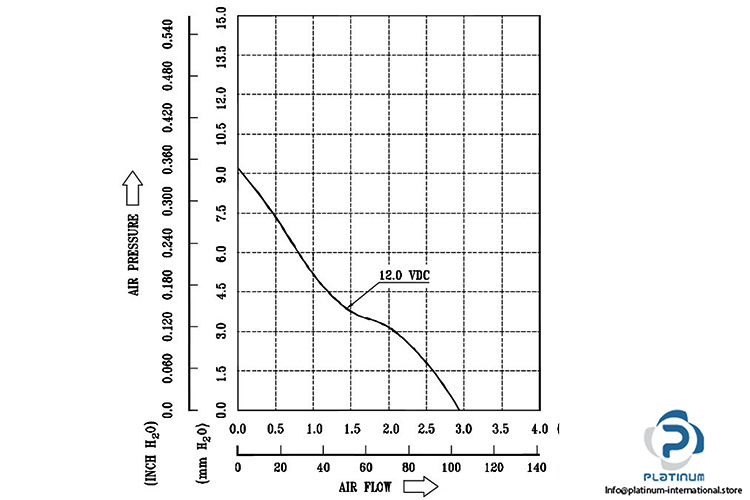

Flow Rate (m3/h): 176.28
Flow Rate (CFM): 104.3076923
Current (A): 0.6
Inverter: without Inverter
Number of Wires: 4
Blade material / Fan housing material: Plastic / Plastic
Industrial Fans

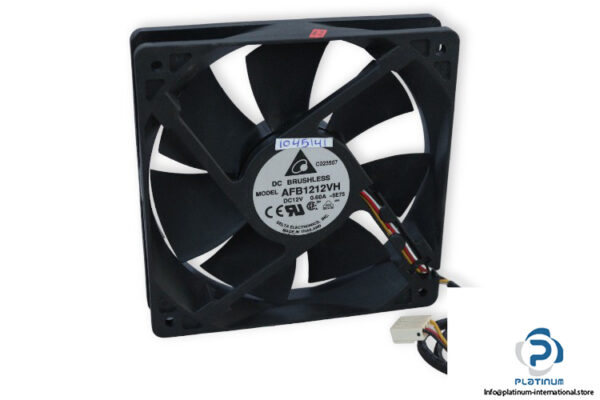

DELTA ELECTRONICS AFB1212VH AXIAL FAN
Manufacturer: Delta Electronics
Type: Axial Fan
Model: AFB1212VH
In stock: 3 pcs
Very low
Hurry! Only 3 left in stock.
| Weight | 0,21 kg |
|---|---|
| Condition | |
| No. of Wires | |
| Type of Product | |
| Frame Shape | |
| Voltage Type | |
| Inverter | |
| Blade Material | |
| Fan Housing Material | |
| Direction | |
| Voltage [V] | |
| No. of Blades | |
| Shelf No. | |
| Speed [RPM] | |
| Manufacturer | |
| Current [A] | |
| Power [kW] | |
| Dimensions [mm] | |
| Model | |
| Flow Rate [m3/h] | |
| Flow Rate CFM |
