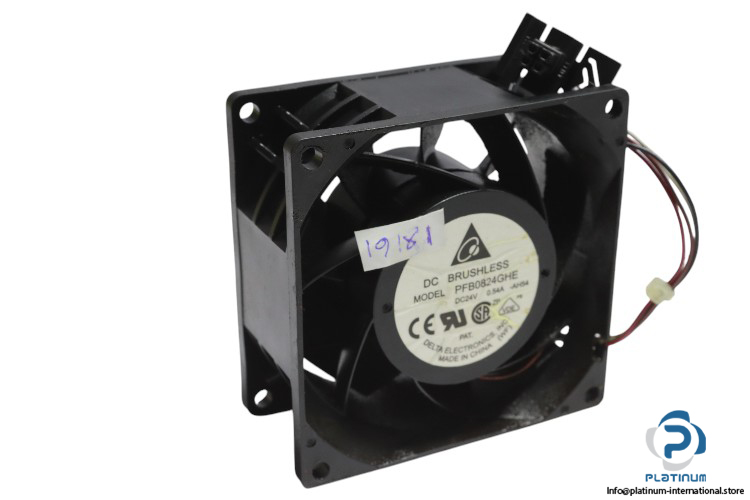

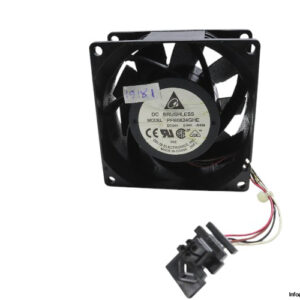

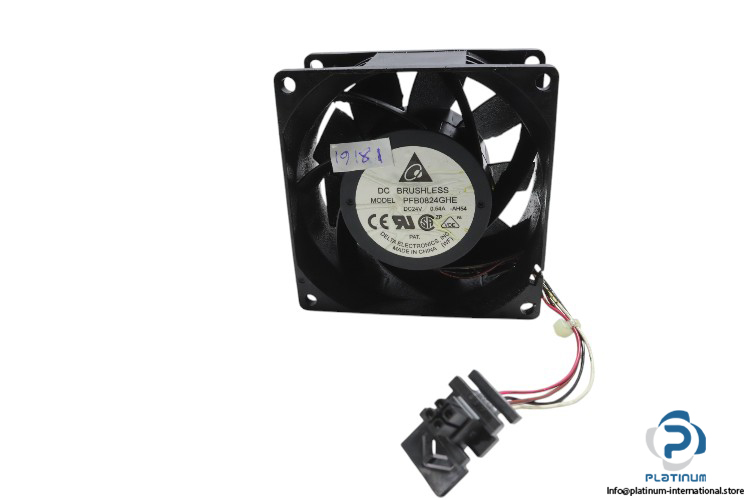

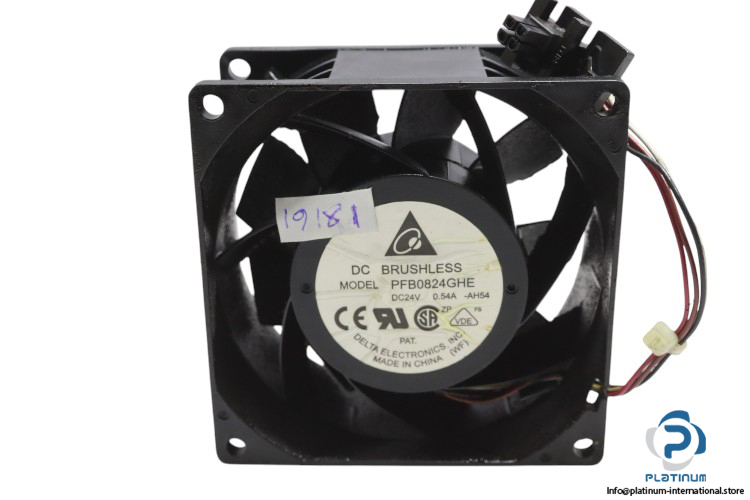

Delta PFB0824GHE DC Brushless Fan
The Delta PFB0824GHE DC Brushless Fan is designed for efficient cooling in ABB ACS880 drives. With a high-speed performance of 6100 rpm and an air flow capacity of 86.44 CFM, this axial fan ensures reliable temperature management in industrial applications. Built with a durable ball-bearing system, it delivers long-lasting performance with minimal maintenance.
- Manufacturer: Delta
- Type: DC Brushless Fan
- Model: PFB0824GHE
Technical Information
- Designed for: ABB ACS880 drives
- Frame Shape: Square Frame
- Current Rating: 0.54 A
- Voltages (V DC): 24
- Power Rating (W): 10.8
- Speed: 6100 rpm
- Number of Wires: 2
- Air Flow: 86.44 CFM (2.448 m³/min)
- Bearing Type: Ball
- Fan Type: Axial
- Noise: 55.5 dB(A)
- Blade Material / Fan Housing Material: Plastic / Plastic
- Operating Temperature: -10 to 60°C
- Dimensions (mm): 80 x 80 x 38 mm
The Delta PFB0824GHE is an ideal cooling solution for high-performance applications, ensuring efficient airflow and heat dissipation.
