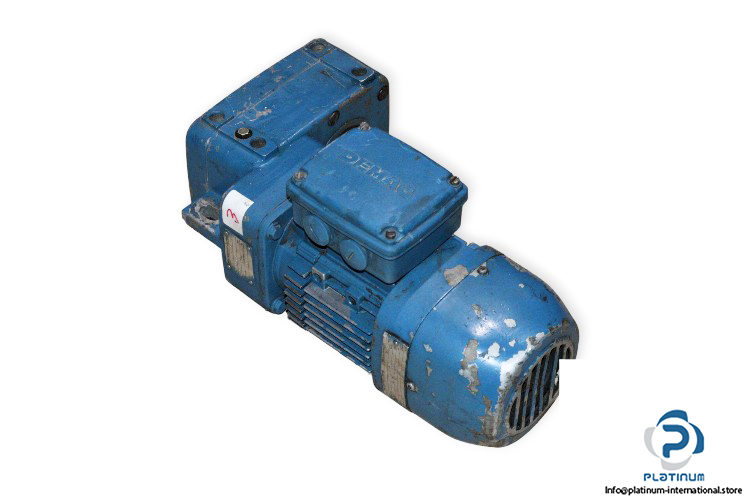

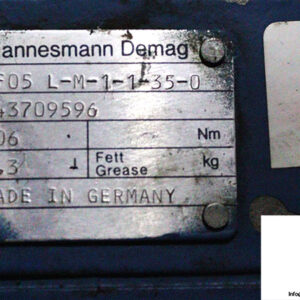

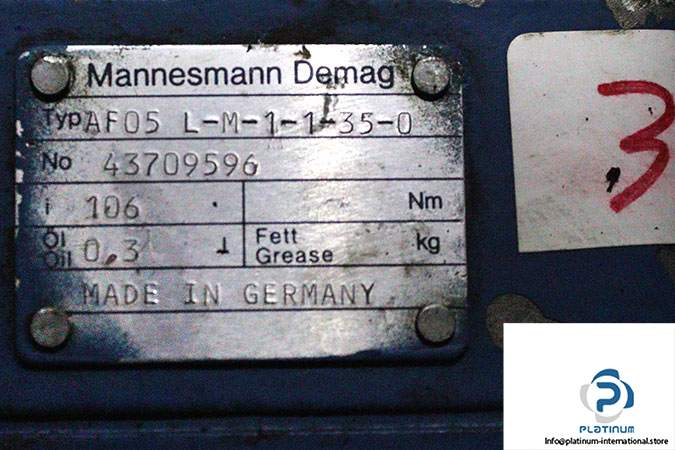

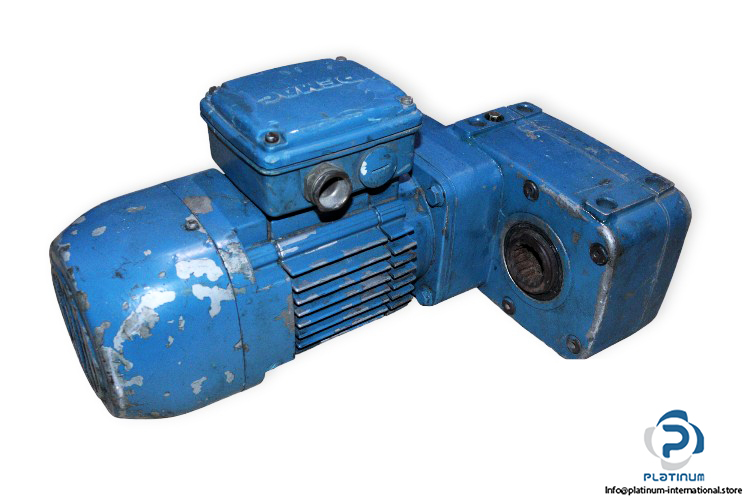

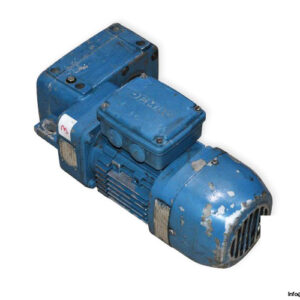

Manufacturer: Demag
Type: Gear Motors
Model: AF05L-M-1-1-35-0
Motor Nr.: 64604841

Ratio [i]: 106
Oil [L]: 0.3
Attachment: DEMAG KBV 71 B 8/2 AC MOTOR

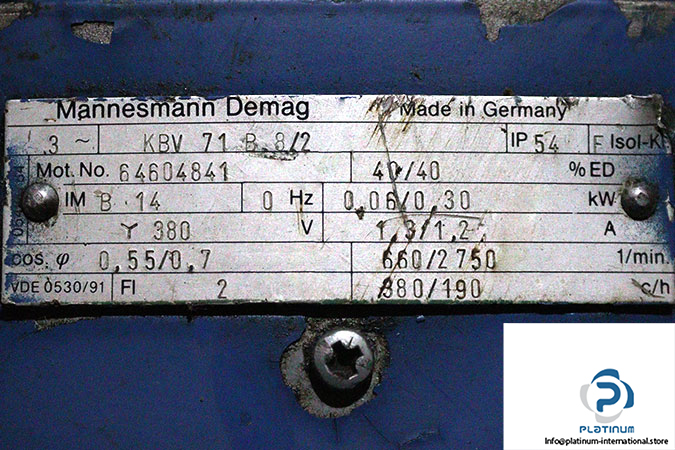

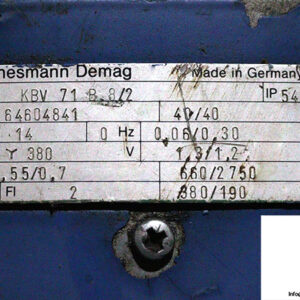

Manufacturer: Demag
Type: AC Motors
Model: KBV71B8/2
Motor Speed [r/min]: 660/2750
Motor Power [kW]: 0.06/0.3
Rated Voltage [V]: 380 Star
Nominal Current [A]: 1.3/1.2
Motor Frequency [Hz]: 50
Cos Phi: 0.55/0.70
Thermal Class: F
Protection Class [IP]: 54
Mounting Position [IM]: B14
