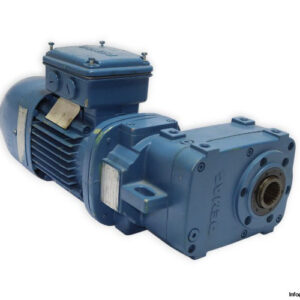

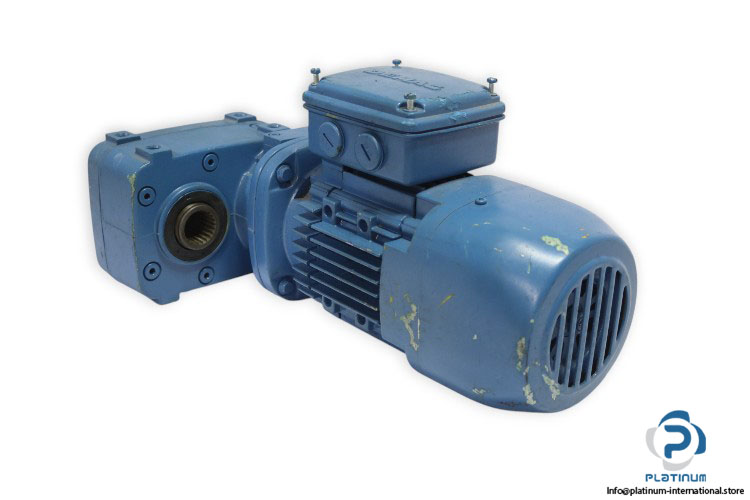

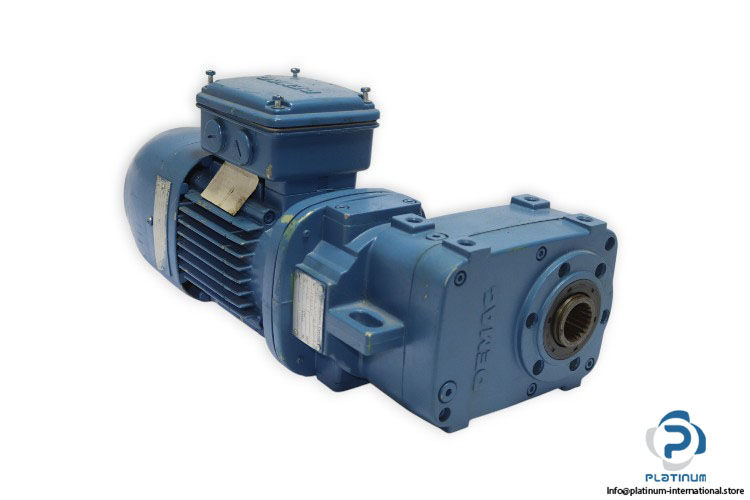

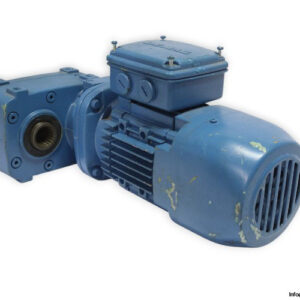

DEMAG KBV 71 B 8/2 GEAR MOTOR WITH MANNESMANN DEMAG AF04 GEAR ATTACHMENT

The Demag KBV 71 B 8/2 Gear Motor, combined with the Mannesmann Demag AF04 Gear Attachment, offers reliable and efficient performance for industrial drive applications. Featuring dual-speed operation, robust IP55 protection, and high mechanical precision, this unit is ideal for continuous and demanding operations.

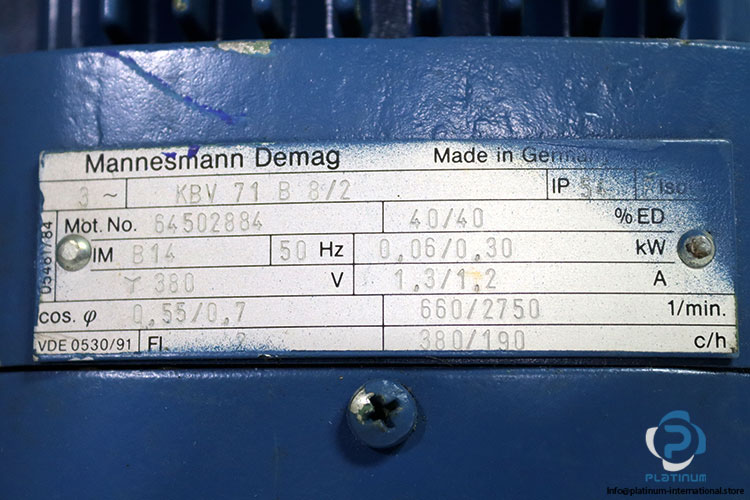

Manufacturer: Demag
Type: Gear Motor
Model: KBV 71 B 8/2
Part No.: 64502884

Technical Information

• Mounting: IM B14
• Frequency: 50 Hz
• Voltage: 380 V (Y connection)
• Power: 0.06 / 0.30 kW
• Current: 1.3 / 1.2 A
• Speed: 660 / 2750 rpm
• Power Factor (cos φ): 0.55 / 0.7
• Protection Class: IP55
• Insulation Class: F
• Duty Cycle: 40%
• Cycles per Hour (c/h): 380 / 190
• Standard: VDE 0530/91

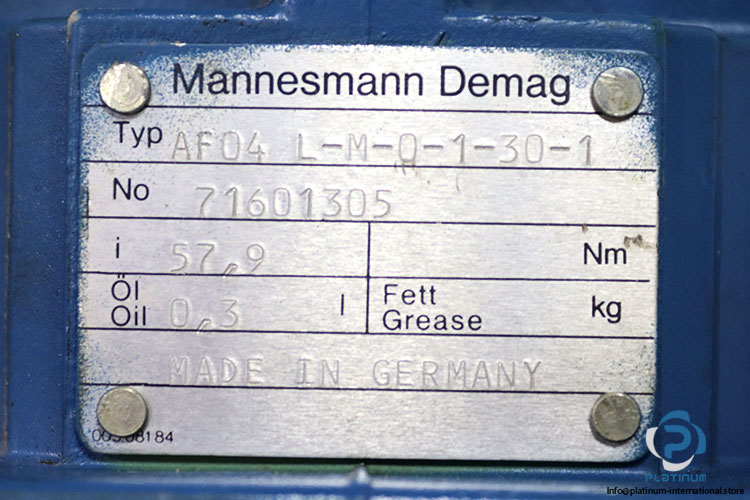

Attachment: Mannesmann Demag AF04 Gear
Model: AF04 L-M-0-1-30-1
Part No.: 71601305

Attachment Technical Information

• Ratio: 57.9
• Oil Capacity: 0.3 L
