DEMAG KMH 112 B 2/3 MOTOR

The DEMAG KMH 112 B 2/3 Motor is a high-performance industrial motor designed for reliable operation in demanding applications. With dual-speed capability, IP55 protection, and compliance with VDE 0530/91 standards, it offers excellent efficiency, durability, and precision control.

Manufacturer: Demag
Type: Motor
Model: KMH 112 B 2/3
Part No.: 70501369
Code: FI 1.3

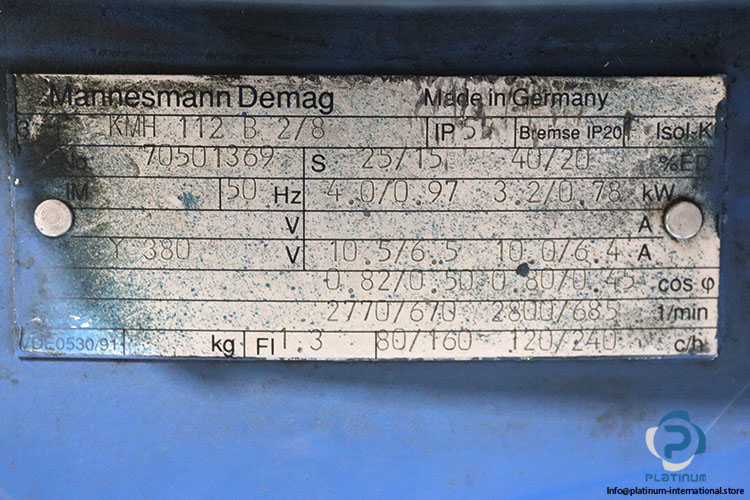

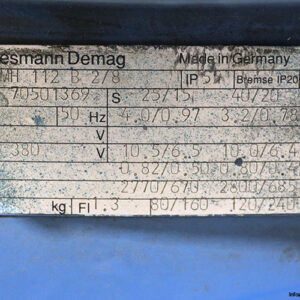

Technical Information

• Frame Size: 112 mm
• Frequency: 50 Hz
• Voltage: 380 V
• Power: 4.0 / 0.97 kW, 3.2 / 0.78 kW
• Current: 10.5 / 6.5 A (high speed), 10.0 / 6.4 A (low speed)
• Power Factor (cos φ): 0.82 / 0.50, 0.80 / 0.45
• Speed: 2770 / 670 rpm, 2800 / 685 rpm
• Protection: IP55
• Brake Protection: IP20
• Insulation Class: K
• Duty Cycle: 25 / 15 %, 40 / 20 % ED (high/low speed)
• Cycles per Hour (c/h): 80 / 160, 120 / 240
• Standard: VDE 0530/91
