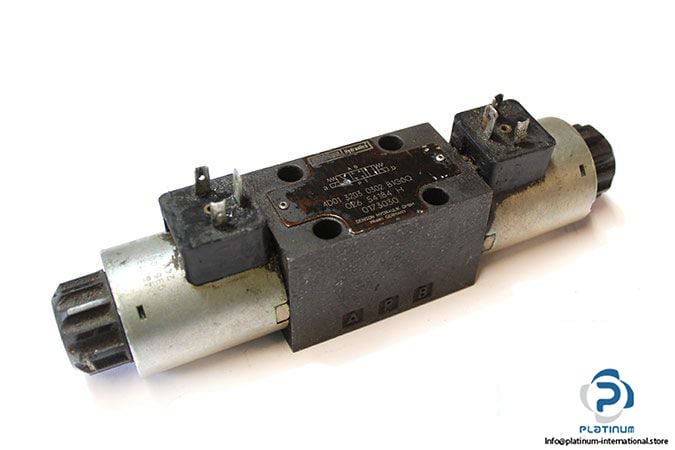

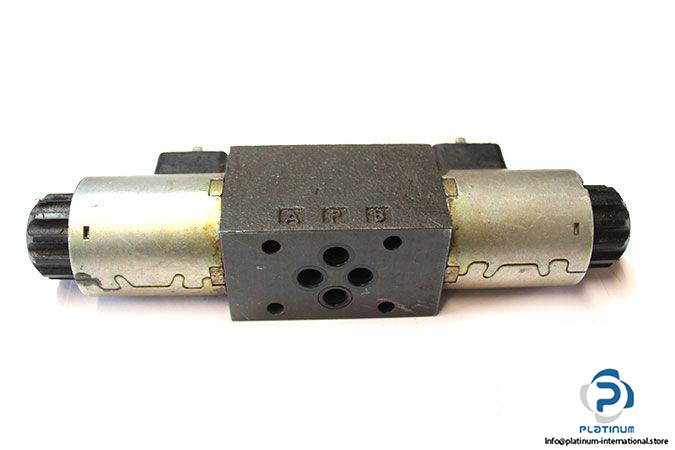

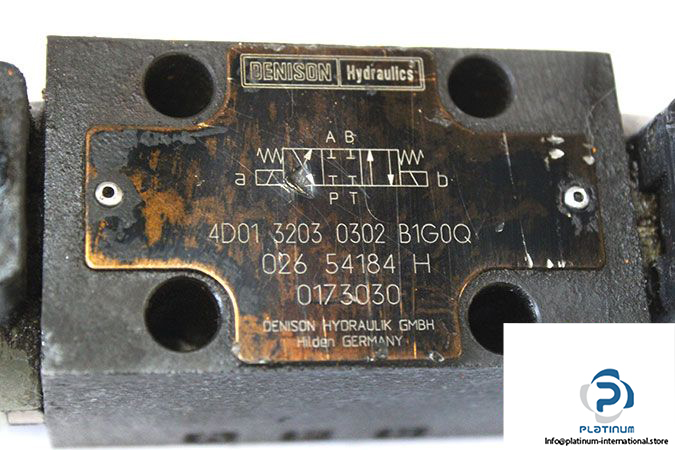

Manufacturer: DENISON

Type: Directional Control Valve

Model: 4D01 3203 0302 B1G0Q

Nominal Size: NG 06

Ambient Temperature Range: -25 …. +50 °C

Max. Operating Pressure at Ports P, A, B: 350 bar

Max. Operating Pressure at Port T: 210 (DC), 140 (AC) bar

Maximum Flow: 80 L/min

Fluid Temperature Range: -25 …. +80 °C

Viscosity Range:10…650 mm²/s

Hydraulic Connection: Sub-plate

Attachment: DENISON 45 136 04C0A SOLENOID COIL

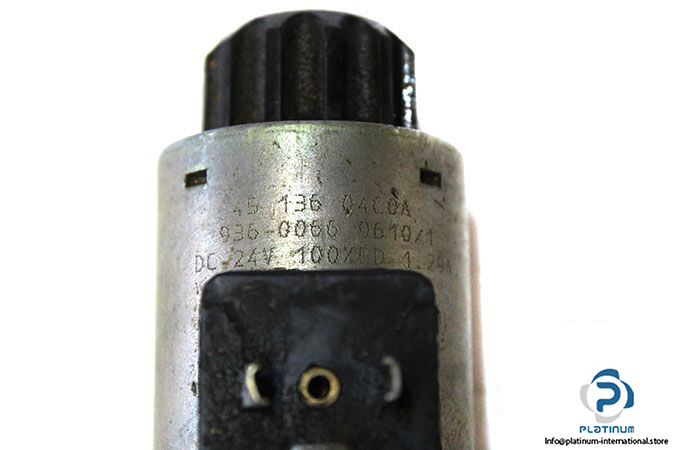

Manufacturer: DENISON

Type: Solenoid Coil

Model: 45 136 04C0A

Voltage: 24 V DC

Current: 1.29 A

Weight: 2.17 kg
