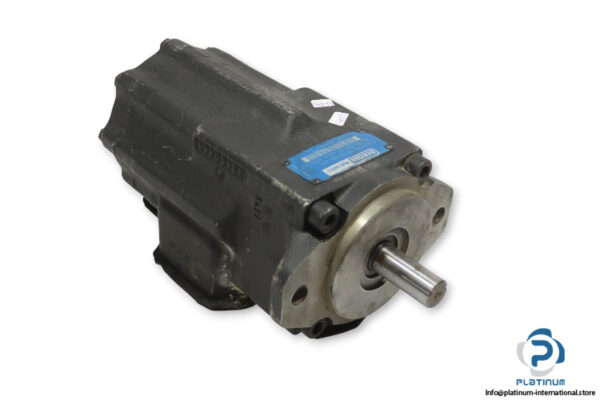

Denison T67CBB17B041R02A511 Hydraulic Pump

The Denison T67CBB17B041R02A511 is a high-performance fixed displacement vane pump engineered for demanding hydraulic systems. Designed with dual-pump capability, it delivers excellent efficiency, smooth flow delivery, and long-term reliability, making it ideal for heavy-duty industrial machinery, presses, injection systems, and power units.

Manufacturer: Denison
Type: Fixed Displacement Vane Pump / Hydraulic Pump
Model: T67CBB17B041R02A511
Code: 024-91873-5
Serial No.: 03J24 042
Series: T67CB

Technical Information

PUMP 1:
Size: B17
Displacement: 58.3 cm3
Discharge flow:
Flow Rate at 1500 rpm & 140 bar: 82.4 l/m
Power Consumption:
Flow Rate at 1500 rpm & 140 bar: 21.9 KW

PUMP 2:
Size: B04
Displacement: 21.8 cm3
Discharge flow:
Flow Rate at 1500 rpm & 140 bar: 17.5 l/m
Power Consumption:
Flow Rate at 1500 rpm & 140 bar: 5 KW

Direction of rotation: Clockwise
Shaft Diameter: 22 mm
Speed Range: 600 to 2600 rpm
Seal class: S5. VITON

This dual-section hydraulic pump is engineered for applications requiring stable flow, high pressure tolerance, and long service life. With its precision-machined components, durable VITON seals, and efficient vane design, it ensures reduced noise levels and optimized hydraulic performance.

Recommended Use: This pump is an excellent recommendation for customers seeking a reliable upgrade for hydraulic presses, metal-forming equipment, industrial power packs, mobile machinery, and systems requiring continuous duty operation. Its dual displacement capability provides superior flexibility for machines that require both high flow and controlled secondary circuits.
