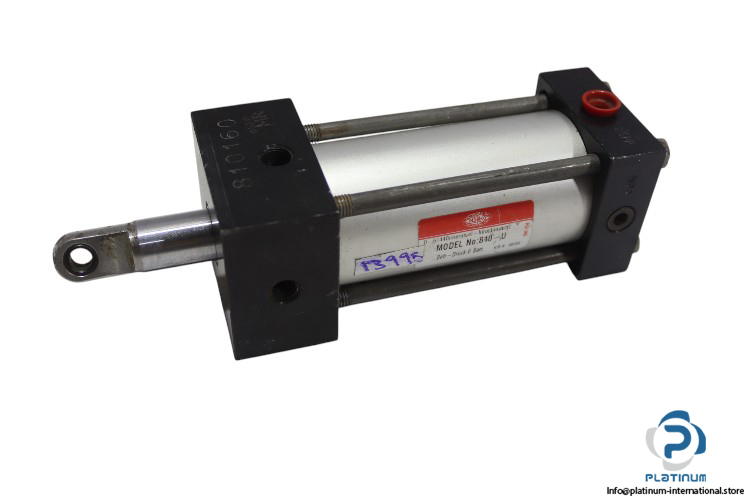

DESTACO 810-U Pneumatic Clamp
The DESTACO 810-U Pneumatic Clamp is designed for efficient clamping in various industrial applications, offering excellent performance with a high exerting force and holding capacity. With a 1.57-inch cylinder bore and a maximum holding capacity of 600 lbf, this clamp operates at pressures up to 6 bar, making it ideal for demanding environments.
Manufacturer: DESTACO
Type: Pneumatic Clamp

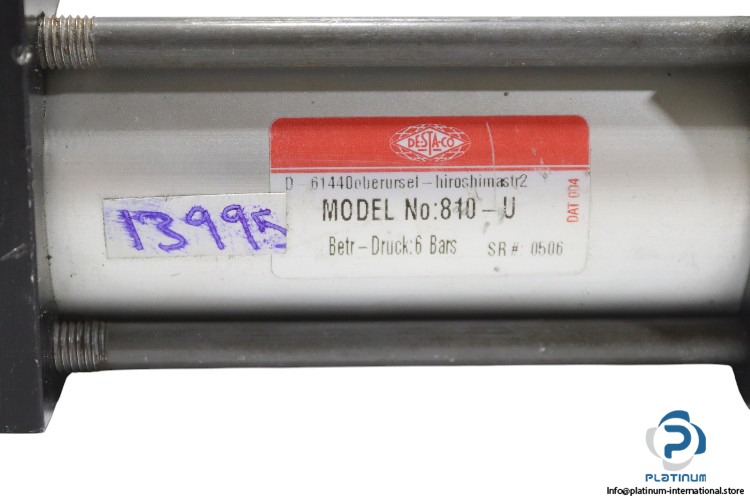

Model: 810-U
Serial No.: 0506
Technical Data:
- Air Consumption: 0.029 ft³
- Cylinder Bore: 1.57 in
- Exerting Force: 856.0 lbf
- Maximum Holding Capacity: 600.0 lbf
- Air Port Size: 1/8 NPT
- Operating Temperature: -10° to 90°C (-14° to 194° F)
- Working Pressure: 6 bar
